Zebra Hat Duo 915 + 915

Community · Dev-board

Compare with other devices

Price: N/A

Specifications

SpecificationValue
Product statusDIY design [7]
LoRa chipSX1262 [3]
ProcessorExternal host [1]
Radio power1000 mW (30 dBm) [3]
Frequency bands902–928 MHz [3]
GPSOptional (add-on) [8]
Display typeNone [7]
Display sizeNone
Display detailsNone [7]
InputNone [13]
BatteryNo built-in battery [7]
Dedicated solar inputNo [7]
AntennaExternal [7]
Connector: Unknown
IP ratingUnknown
DimensionsUnknown
WeightUnknown

Software support

The software runs on the connected computer.

SoftwareSupportDetails
MeshtasticUnsupported—
MeshCoreUnsupported—
UMSHUnsupported [11]—

Build resources

Design files and purchasing options are linked below.

Vendor / configurationPriceBased inShips from
wehooper4
915 MHz$67.00
Observed 2026-10-19
UnknownUnknown

Notes

Host-driven Raspberry Pi HAT with two E22P-915M30S radios. The 30 dBm rating is per radio, not aggregate output. Designed by wehooper4.

[1] [3] [4] [5] [6] [7] [8]

Sources

  1. Zebra Hat Duo maker README
  2. FCC grant for E22P900M30S
  3. Ebyte E22P-915M30S product page
  4. Ebyte E22-900M33S specifications
  5. Meshtasticd documentation
  6. Zebra Hat checkout and selected configuration pricing

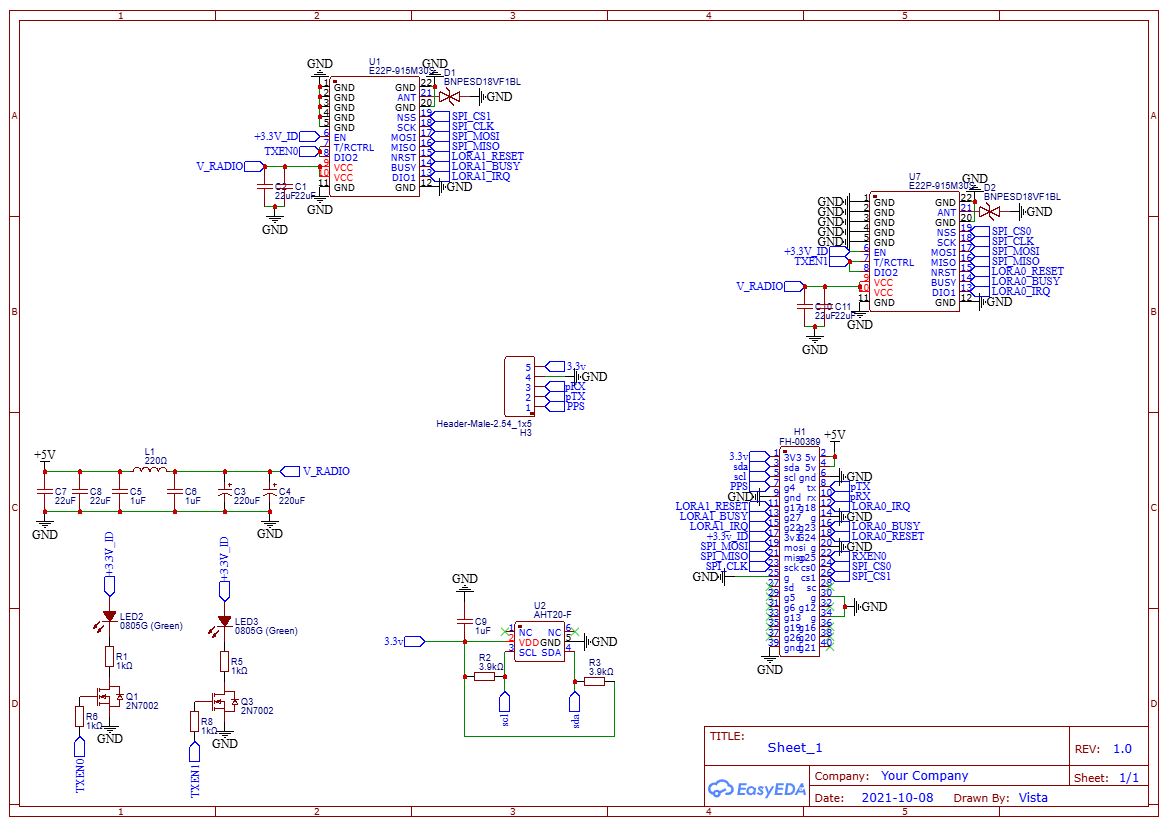

  7. Zebra Hat Duo exact radio-configuration schematic
  8. Recommended ATGM336H GPS module purchase listing
  9. Meshtastic community-supported hardware directory
  10. MeshCore official flasher device configuration
  11. UMSH hardware support list
  12. Zebra Hat Duo two E22P-915M30S radios schematics first published
  13. Zebra Hat Duo 915 + 915 schematic
