Luckfox Ultra HAT V2
Community · Dev-board
Price: N/A
Specifications
| Specification | Value |
|---|---|
| Product status | DIY design [1] |
| LoRa chip | SX1262 [3] |
| Processor | External host [1] |
| Radio power | 1995 mW (33 dBm) [1] |
| Frequency bands | 915 MHz [3] |
| GPS | Unknown |
| Display type | None [2] |
| Display size | None |
| Display details | None [2] |
| Input | None [2] |
| Battery | No built-in battery [2] |
| Dedicated solar input | No [2] |
| Antenna | External [2] Connector: IPEX 1 [2] |
| IP rating | Unknown |
| Dimensions | Unknown |
| Weight | Unknown |
Software support
The software runs on the connected computer.
| Software | Support | Details |
|---|---|---|
| Meshtastic | Community [7] | Details
|
| MeshCore | Unsupported | — |
| UMSH | Unsupported [8] | — |
Build resources
Build it from the project documentation linked in Sources. Components and assembly are required.
Notes
V2 is a radio HAT for the Luckfox Lyra Ultra W, not a complete node; it uses meshtasticd on the external host.[1][5]

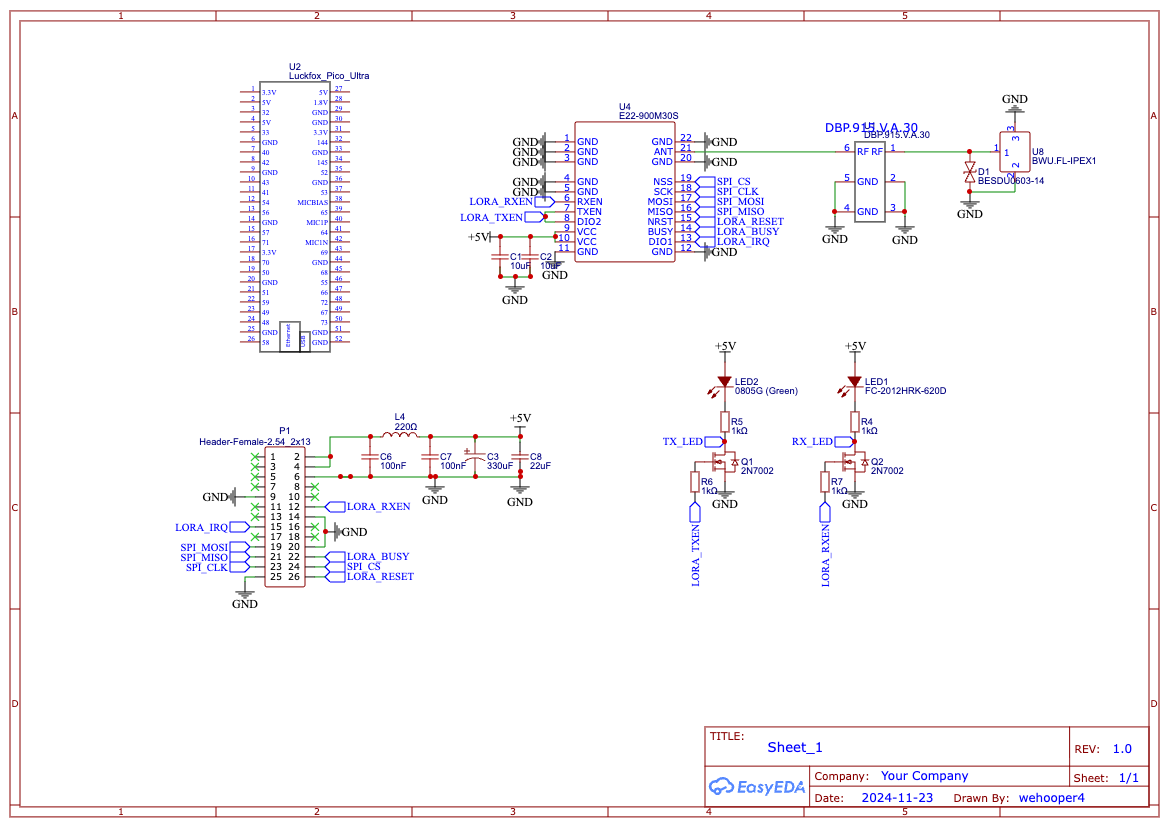

The maker rates V2 as a 2 W radio with an external filter.[1] The published schematic shows an E22-900M30S module followed by a DBB915V3A30 filter.[2]
