WashTastic V0.3.5
Community · Dev-board
Price: N/A
Specifications
| Specification | Value |
|---|---|
| Product status | DIY design [1] |
| LoRa chip | SX1262 [2] |
| Processor | nRF52840 [3] |
| Radio power | 1000 mW (30 dBm) [6] |
| Frequency bands | 850–930 MHz [2] |
| GPS | Optional (add-on) [3] |
| Display type | None [3] |
| Display size | None |
| Display details | None [3] |
| Input | Buttons [3] |
| Battery | No built-in battery [3] |
| Dedicated solar input | Built in [3] |
| Antenna | External [2] Connector: IPEX [2] |
| IP rating | Unknown |
| Dimensions | Unknown |
| Weight | Unknown |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Community [8] | Details
Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher |
| MeshCore | Unsupported | — |
| UMSH | Unsupported [4] | — |
Build resources
Design files and purchasing options are linked below.
| Vendor / configuration | Price | Based in | Ships from |
|---|---|---|---|
| Elecrow: Iris Mesh | |||
| View listing | $75.00 Observed 2026-10-19 | Unknown | Unknown |
| Etsy: valzzu | |||
| View listing | Check vendor | Unknown | Unknown |
Notes

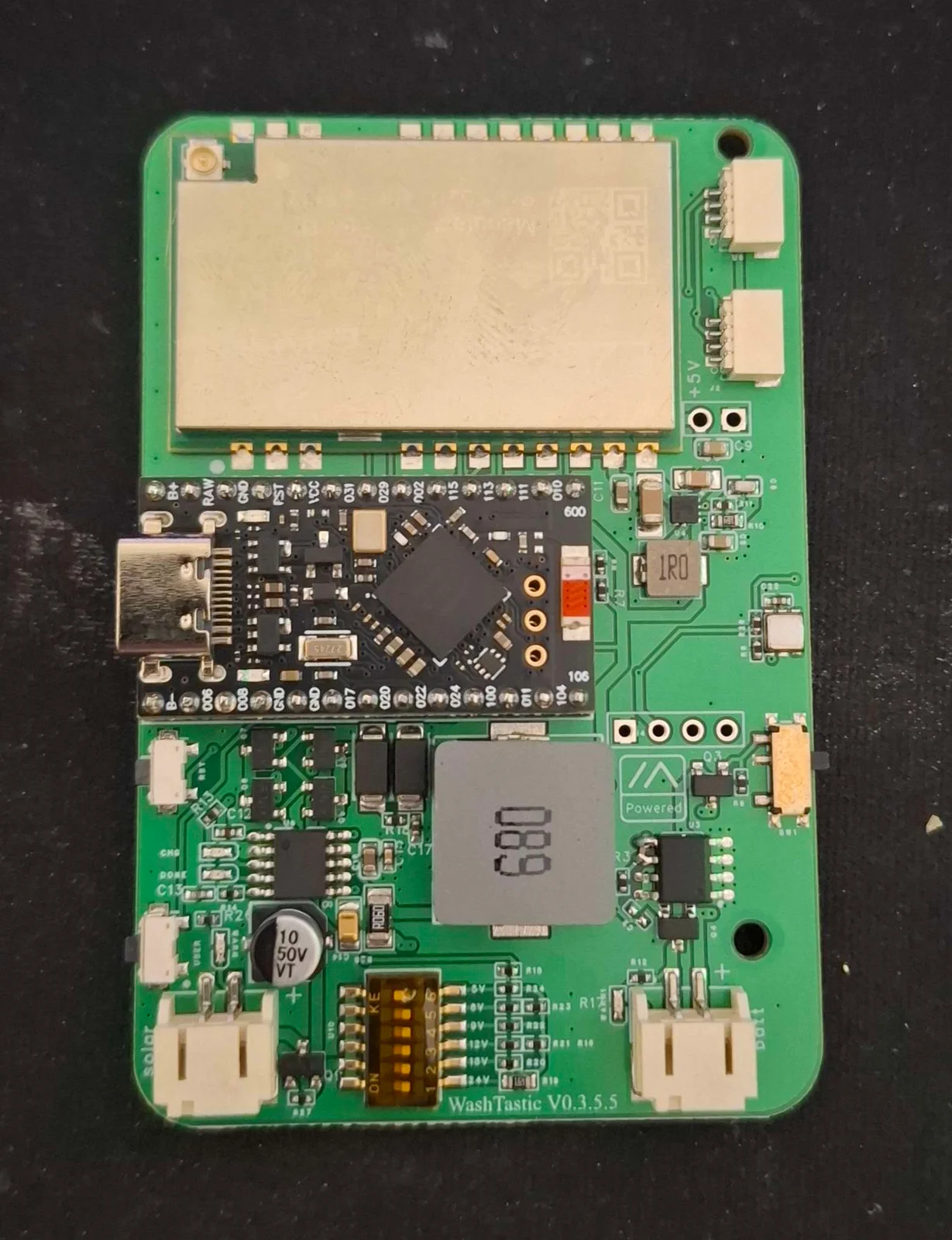

V0.3.5 replaces the earlier solar charger with a CN3791.[1] Designed by valzzu around a Pro Micro-compatible nRF52840 board and Ebyte E22-900M30S module.[1][3]
![[3]](https://github.com/valzzu/meshtastic-pcbs/blob/main/WashTastic/pics/V0.3.5/1.%20Main.png){kind=link}
- Requires a battery; it is not designed to run directly from a solar panel without one.[1]
- Battery-protection fix: the maker corrected a capacitor placement error in PCB V0.3.5.6 (and V0.4.6 for the separate integrated-MCU design). Check the PCB revision when ordering or building.[1]
- DIY manufacturing files and optional assembled boards are available.[1]
Resources
- WashTastic V0.3.5 design files and build documentation (valzzu)Community projectPublication date unknown
Sources
- WashTastic V0.3.5 project documentation (valzzu)
- Ebyte E22-900M30S module specifications
- WashTastic V0.3.5 main-board schematic
- UMSH hardware support list
- First published WashTastic V0.3.5 PCB design
- WashTastic assembled-board listing — Iris Mesh on Elecrow
- WashTastic listing — valzzu on Etsy
- Meshtastic WashTastic target (Pro Micro + E22-900M30S)
