Wio-E5 mini Dev Board

Seeed Studio · Dev-board

Compare with other devices

Price: $24.99[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX126x [2]
ProcessorSTM32WLE5JC [2]
Radio power158 mW (22 dBm) [2]
Frequency bands868 MHz, 915 MHz [2]
GPSNot supported [5]
Display typeNone [5]
Display sizeNone
Display detailsNone [5]
InputNone [3]
BatteryNo built-in battery [5]
Dedicated solar inputNo [5]
AntennaExternal [3]
Connector: SMA-K and IPEX [3]
IP ratingUnknown
DimensionsUnknown
WeightUnknown

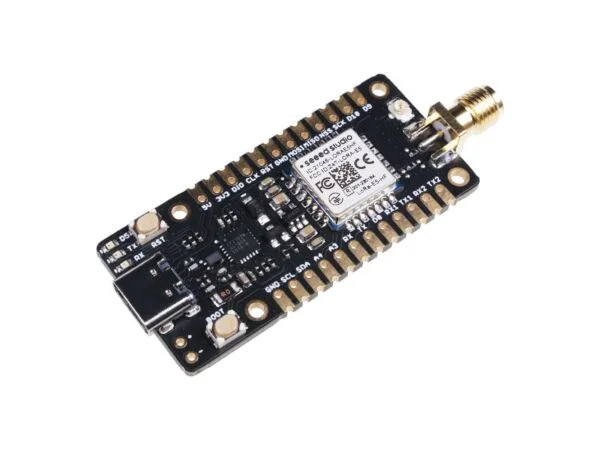

Wio-E5 mini Dev Board product photo
Image: Seeed Studio

Firmware support

FirmwareSupportDetails
MeshtasticCommunity [6]
Details
Build target(s)
wio-e5
Minimum version
2.0.0.18ab874

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [4]
Details
Build target(s)
wio-e5-mini_companion_radio_usb, wio-e5-mini_repeater
Roles
  • Companion (USB): wio-e5-mini_companion_radio_usb
  • Repeater: wio-e5-mini_repeater
Minimum version
1.7.0

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [7]—

Where to buy

Vendor / configurationPriceBased inShips from
Seeed Studio
LoRaWAN AT$21.90
Observed 2026-10-19
🇨🇳🇨🇳🇺🇸🇪🇺

Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.

Notes

Compact 50 × 23 mm development board using the original Wio-E5-HF module.[3] The Meshtastic target is marked work in progress.[6]

Sources

  1. Seeed Wio-E5 mini Dev Board product listing
  2. Seeed Wio-E5 module datasheet V1.1
  3. Seeed Wio-E5 mini documentation
  4. MeshCore Wio-E5 mini target source
  5. Seeed Wio-E5 mini board schematic V1.01
  6. Meshtastic Wio-E5 mini firmware target
  7. UMSH hardware support list
  8. Seeed announces Wio-E5 mini Dev Kit

Last updated 2026-10-20
