Wio-WM1110 Dev Kit

Seeed Studio · Dev-board

Compare with other devices

Price: $32.90[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipLR1110 [2]
ProcessornRF52840 [2]
Radio power100 mW (20 dBm) [2]
Frequency bands863–928 MHz [2]
GPSBuilt in [2]
Display typeNone [4]
Display sizeNone
Display detailsNo display [4]
InputButtons [3]
BatteryNo built-in battery [4]
Dedicated solar inputBuilt in [4]
AntennaExternal [4]
Connector: Unknown
IP ratingUnknown
DimensionsUnknown
WeightUnknown

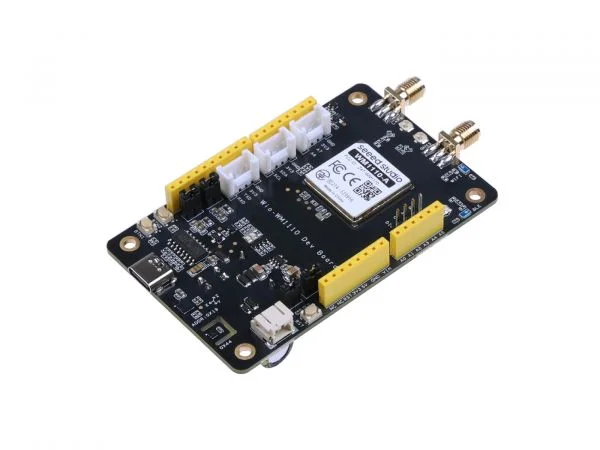

Wio-WM1110 Dev Kit product photo
Image: Seeed Studio

Firmware support

FirmwareSupportDetails
MeshtasticCommunity [5]
Details
Build target(s)
wio-sdk-wm1110
Minimum version
2.3.12.24458a7

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [6]
Details
Build target(s)
wio_wm1110_repeater, wio_wm1110_room_server, wio_wm1110_companion_radio_ble, wio_wm1110_kiss_modem
Roles
  • Companion (Bluetooth): wio_wm1110_companion_radio_ble
  • Repeater: wio_wm1110_repeater
  • Room server: wio_wm1110_room_server
Minimum version
1.10.0

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [7]—

Where to buy

Vendor / configurationPriceBased inShips from
Seeed Studio
View listing$32.90
Observed 2026-10-19
🇨🇳🇨🇳🇺🇸🇪🇺

Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.

Notes

The board includes separate LoRa and GNSS antenna paths and a 0.5 W solar panel. The LR1110 GNSS scan feature is not currently usable by the listed MeshCore and Meshtastic builds; an external Grove GPS can be added.

[4]
