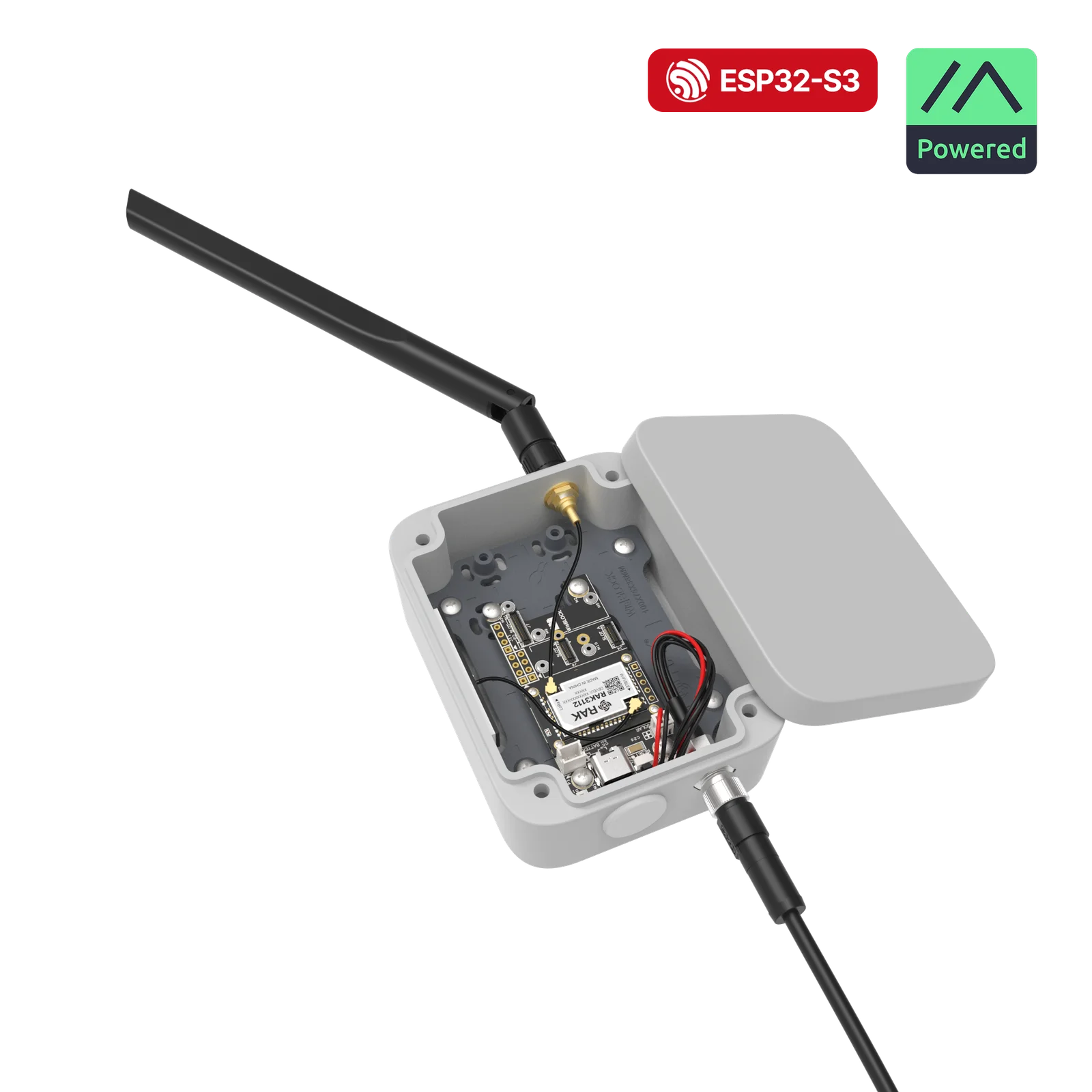

WisMesh WiFi MQTT Gateway V2
RAKwireless · Fixed node
Price: $68.00[1]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [1] |
| LoRa chip | SX1262 [2] |
| Processor | ESP32-S3 [2] |
| Radio power | 158 mW (22 dBm) [2] |
| Frequency bands | 863–870 MHz, 902–928 MHz [1] |
| GPS | Optional (add-on) [3] |
| Display type | None [1] |
| Display size | None |
| Display details | None [1] |
| Input | None [1] |
| Battery | No built-in battery [1] |
| Dedicated solar input | Built in [3] |
| Antenna | External [1] Connector: RP-SMA [1] |
| IP rating | IP65 [1] |
| Dimensions | 100 × 75 × 38 mm [1] |
| Weight | Unknown |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Official [4] | Details
Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher |
| MeshCore | Unsupported | — |
| UMSH | Unsupported [5] | — |
Where to buy
Notes
Compared with WisMesh WiFi MQTT Gateway V1, V2 adds:
- An ESP32-S3-based RAK3312 core combining WiFi, BLE and the SX1262 LoRa radio, replacing the ESP32-WROVER RAK11200 core and separate RAK13300 radio.[1][6]
The enclosed assembly is available in 800 MHz and 900 MHz regional options; an unenclosed bundle is also sold separately.[1] No battery, GNSS module or display is included. The RAK19007 base board supports a dedicated solar input and an optional GNSS module.[1][3]
Sources
- RAKwireless WisMesh WiFi MQTT Gateway RAK10719 listing
- RAKwireless RAK3312 WisBlock Core datasheet
- RAKwireless RAK19007 base board datasheet
- Meshtastic RAK WisBlock Core documentation
- UMSH hardware support list
- Rokland earlier WisMesh WiFi Gateway RAK11200 listing
