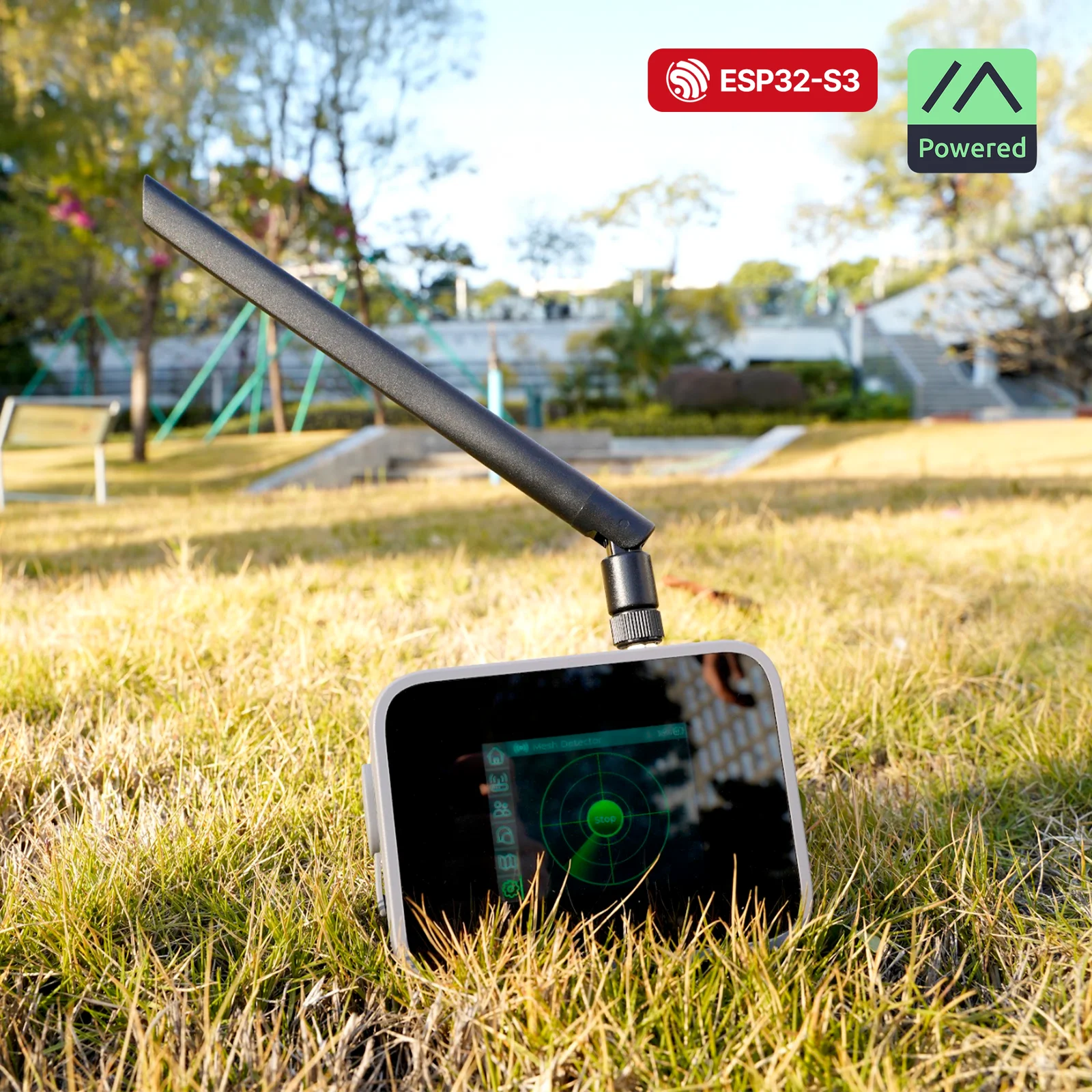

WisMesh TAP V2 (RAK10710)
RAKwireless · Handheld
Price: $109.00[1]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [1] |
| LoRa chip | SX1262 [2] |
| Processor | ESP32-S3 [2] |
| Radio power | 158 mW (22 dBm) [2] |
| Frequency bands | 863–870 MHz, 902–928 MHz [2] |
| GPS | Built in [2] |
| Display type | LCD [1] |
| Display size | Unknown |
| Display details | 320 × 240 TFT LCD touchscreen with on-screen keyboard [1] |
| Input | Touchscreen [2] |
| Battery | 3200 mAh [1] |
| Dedicated solar input | Unknown |
| Antenna | External [2] Connector: SMA [5] |
| IP rating | IP65 [2] |
| Dimensions | Unknown |
| Weight | Unknown |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Official [5] | Details
Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher |
| MeshCore | Unsupported | — |
| UMSH | Unsupported [4] | — |
Where to buy
Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.
Notes
The finished device includes an integrated GNSS receiver, color touch display, buzzer and SD-card support. RAK sells regional radio versions; select the version for the intended band.
Sources
- RAKwireless WisMesh TAP V2 listing
- RAKwireless WisMesh TAP V2 quick start
- RAKwireless RAK3312 datasheet
- UMSH hardware support list
- Meshtastic WisMesh Tap V2 section in the WisMesh Tap documentation
- Meshtastic firmware adds WisMesh TAP V2 variant
- Rokland WisMesh TAP v2- touchscreen Meshtastic client with TFT screen, on-screen keyboard, SX1262 LoRa® PID 116209 listing
- OpenELAB RakWireless WisMesh TAP V2 RAK10710 EU SX1262 LoRa Meshtastic (Pre-sale) exact offer
- RAK product display specification
