WisMesh Station HP

RAKwireless · Fixed node

Compare with other devices

Price: $175.99[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [6]
ProcessorBCM2711 [4]
Radio power282 mW (24.5 dBm) [6]
Frequency bands863–870 MHz, 902–928 MHz [1]
GPSOptional (add-on) [1]
Display typeNone [1]
Display sizeNone
Display detailsNone [1]
InputUnknown
BatteryNo built-in battery [1]
Dedicated solar inputNo [1]
AntennaExternal [1]
Connector: RP-SMA [1]
IP ratingUnknown
Dimensions92 × 68.3 × 57.5 mm [1]
Weight630 g [1]

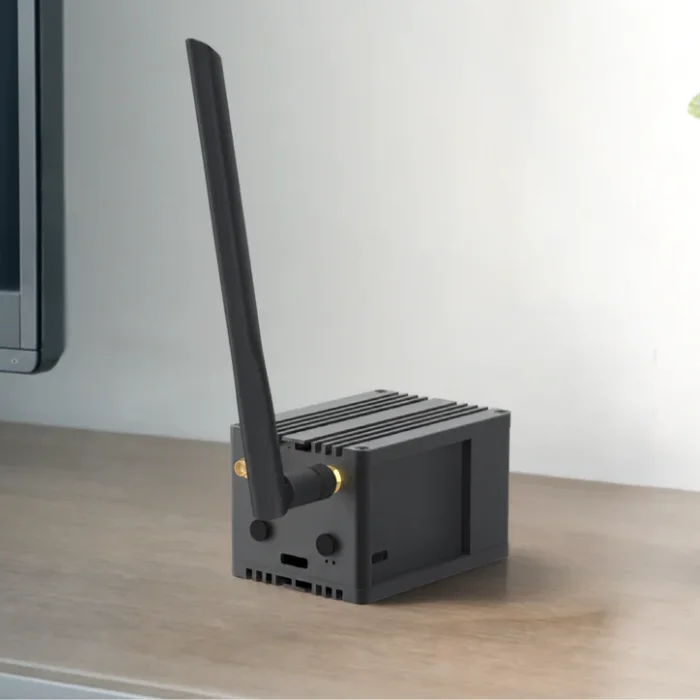

RAK WisMesh Station HP enclosed Raspberry Pi Meshtastic gateway with external antenna
Image: Rokland

Software support

The software runs on the connected computer.

SoftwareSupportDetails
MeshtasticOfficial [8]
Details
Host software
meshtasticd
Host build target(s)
native
MeshCoreUnsupported—
UMSHUnsupported [7]—

Where to buy

Vendor / configurationPriceBased inShips from
RAKwireless
900 MHz$175.99
Observed 2026-10-19
🇭🇰Unknown
Rokland
915 MHz$189.97
Observed 2026-10-19
🇺🇸🇺🇸

Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.

Notes

This enclosed Station combines a Raspberry Pi 4, RAK6421 and RAK13302 radio; the package includes LoRa and GPS antennas, a 5V power adapter and 32GB SD card.[1][2]

The maker offers 863–870 MHz and 902–928 MHz regional variants; the linked US seller option is the US915 configuration with a US power plug.[1][2]

A RAK12501 GPS module is an optional WisBlock add-on; the GPS antenna is included, but the GPS module is not listed in the box contents.[1]

The RAK13302’s current FCC-certified US915 maximum is 24.5 dBm (about 280 mW), below its 30 dBm hardware capability; this US915 rating does not establish permitted output for the other regional variants.[6]

Rokland lists its US915/high-power SKU 116240 at $189.97 but marks it coming soon; the maker currently lists the high-power variants as available.[2][1]

Sources

  1. RAKwireless WisMesh Station / Station HP product listing
  2. Rokland WisMesh Station product listing
  3. RAKwireless launch announcement for WisMesh Station and Station HP
  4. Raspberry Pi processor documentation: BCM2711
  5. RAKwireless RAK13300 datasheet
  6. RAKwireless RAK13302 certified US915 output
  7. UMSH hardware support list
  8. Meshtastic official Raspberry Pi RAK6421/RAK13302 host configuration

Last updated 2026-10-20
