WisMesh Station
RAKwireless · Fixed node
Price: $169.99[1]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [1] |
| LoRa chip | SX1262 [5] |
| Processor | BCM2711 [4] |
| Radio power | 158 mW (22 dBm) [1] |
| Frequency bands | 863–870 MHz, 902–928 MHz [1] |
| GPS | Optional (add-on) [1] |
| Display type | None [1] |
| Display size | None |
| Display details | None [1] |
| Input | Unknown |
| Battery | No built-in battery [1] |
| Dedicated solar input | No [1] |
| Antenna | External [1] Connector: RP-SMA [1] |
| IP rating | Unknown |
| Dimensions | 92 × 68.3 × 57.5 mm [1] |
| Weight | 630 g [1] |
Software support
The software runs on the connected computer.
| Software | Support | Details |
|---|---|---|
| Meshtastic | Official [8] | Details
|
| MeshCore | Unsupported | — |
| UMSH | Unsupported [7] | — |
Where to buy
Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.
Notes

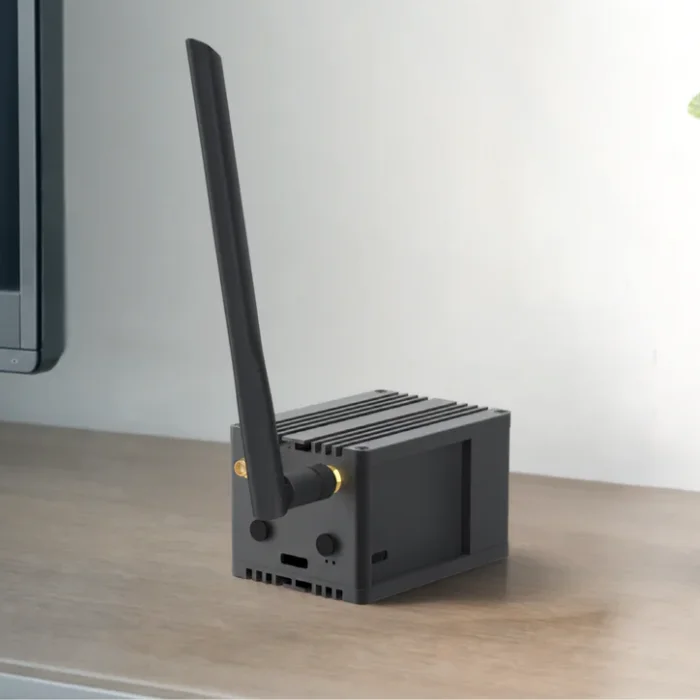

This enclosed Station combines a Raspberry Pi 4, RAK6421 and RAK13300 radio; the package includes LoRa and GPS antennas, a 5V power adapter and 32GB SD card.[1][2]
The maker offers 863–870 MHz and 902–928 MHz regional variants; the linked US seller option is the US915 configuration with a US power plug.[1][2]
A RAK12501 GPS module is an optional WisBlock add-on; the GPS antenna is included, but the GPS module is not listed in the box contents.[1]
Sources
- RAKwireless WisMesh Station / Station HP product listing
- Rokland WisMesh Station product listing
- RAKwireless launch announcement for WisMesh Station and Station HP
- Raspberry Pi processor documentation: BCM2711
- RAKwireless RAK13300 datasheet
- RAKwireless RAK13302 certified US915 output
- UMSH hardware support list
- Meshtastic official Raspberry Pi RAK6421/RAK13300 host configuration
