WisMesh Ethernet MQTT Gateway

RAKwireless · Fixed node

Compare with other devices

Price: $89.90[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [2]
ProcessornRF52840 [2]
Radio power158 mW (22 dBm) [2]
Frequency bands863–870 MHz, 902–928 MHz [1]
GPSOptional (add-on) [3]
Display typeNone [1]
Display sizeNone
Display detailsNone [1]
InputNone [1]
BatteryNo built-in battery [1]
Dedicated solar inputBuilt in [3]
AntennaExternal [6]
Connector: RP-SMA [6]
IP ratingUnknown
Dimensions150 × 100 × 45 mm [1]
WeightUnknown

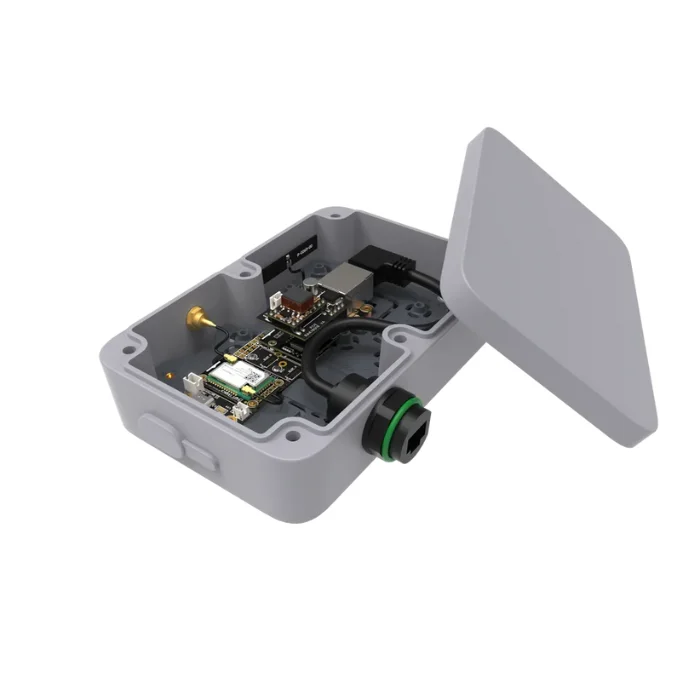

Enclosed WisMesh Ethernet MQTT Gateway with internal WisBlock radio and Ethernet module
Image: Rokland

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [4]
Details
Build target(s)
rak4631_eth_gw
Minimum version
Unknown

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreUnsupported—
UMSHUnsupported [5]—

Where to buy

Vendor / configurationPriceBased inShips from
RAKwireless
900 MHz$89.90
Observed 2026-10-19
🇭🇰Unknown
Rokland
View listing$94.97
Observed 2026-10-19
🇺🇸🇺🇸

Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.

Notes

This enclosed configuration uses a RAK4631 core, RAK19007 base board and RAK13800 Ethernet module to connect a Meshtastic network to an MQTT broker over wired Ethernet.[1]

RAK also offers 800 MHz and 900 MHz regional options, unenclosed bundles and an optional PoE module; the linked Rokland offer is US915 without PoE.[1][6] No battery is included.[1]

Sources

  1. RAKwireless WisMesh Ethernet MQTT Gateway listing
  2. RAKwireless WisBlock Core RAK4631 datasheet
  3. RAKwireless RAK19007 base board datasheet
  4. Meshtastic RAK WisBlock Core documentation
  5. UMSH hardware support list
  6. Rokland WisMesh Ethernet MQTT Gateway US915 Ethernet-only SKU 116134 listing

Last updated 2026-10-20
