WisMesh BaseBoard RAK19026 V2

RAKwireless · Dev-board

Compare with other devices

Price: $66.00[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [2]
ProcessornRF52840 [2]
Radio power158 mW (22 dBm) [2]
Frequency bands864 MHz, 865 MHz, 868 MHz, 915 MHz, 920 MHz, 923 MHz [2]
GPSBuilt in [6]
Display typeOLED [6]
Display size1.3 in [6]
Display details1.3-inch OLED [6]
InputButtons [1]
BatteryNo built-in battery [6]
Dedicated solar inputBuilt in [6]
AntennaExternal [6]
Connector: SMA [6]
IP ratingUnknown
DimensionsUnknown
WeightUnknown

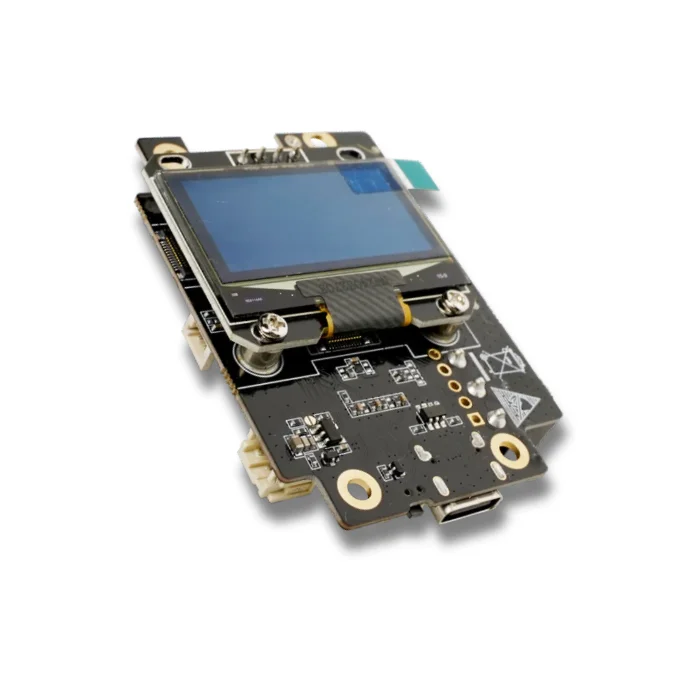

WisMesh BaseBoard RAK19026 v2 with mounted OLED
Image: Rokland

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [3]
Details
Build target(s)
rak4631
Minimum version
1.2.28

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [4]
Details
Build target(s)
RAK_4631_companion_radio_ble, RAK_4631_companion_radio_usb, RAK_4631_repeater, RAK_4631_room_server
Roles
  • Companion (Bluetooth): RAK_4631_companion_radio_ble
  • Companion (USB): RAK_4631_companion_radio_usb
  • Repeater: RAK_4631_repeater
  • Room server: RAK_4631_room_server
Minimum version
1.0.0a

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [5]—

Where to buy

Vendor / configurationPriceBased inShips from
RAKwireless
9xx MHz$66.00
Observed 2026-10-19
🇭🇰Unknown
Rokland
Meshtastic$59.97
Observed 2026-10-19
🇺🇸🇺🇸

Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.

Notes

Uses a RAK4630 core with a fitted OLED, GNSS and motion sensor.[6]

V2 has a three-pin battery connector; two-pin RAK battery packs are not compatible.[6] The package includes LoRa, BLE and GPS antennas and an IPEX-to-SMA lead, but no battery.[6]

RAK offers 8xx MHz and 9xx MHz regional options with the mounted OLED and sensors; choose the matching region when ordering.[1][2] The linked Rokland offer is US915.[6]

Sources

  1. RAKwireless WisMesh BaseBoard RAK19026: 8xx/9xx regional options
  2. RAKwireless RAK4630 module datasheet
  3. Meshtastic device documentation for WisBlock Core modules
  4. MeshCore RAK4631 variant configuration
  5. UMSH hardware support list
  6. Rokland WisMesh BaseBoard V2: US915 offer with OLED and sensors
