WisMesh Repeater Mini V2 High Power

RAKwireless · Fixed node

Compare with other devices

Price: $99.90[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [2]
ProcessornRF52840 [2]
Radio power282 mW (24.5 dBm) [8]
Frequency bands863 MHz, 865 MHz, 868 MHz, 915 MHz, 920 MHz, 923 MHz [2]
GPSNot supported [2]
Display typeNone
Display sizeNone
Display detailsNo display [1]
InputNone [1]
Battery3200 mAh [2]
Dedicated solar inputBuilt in [2]
AntennaExternal [2]
Connector: RP-SMA [2]
IP ratingIP67 [2]
Dimensions150 × 100 × 50 mm [2]
WeightUnknown

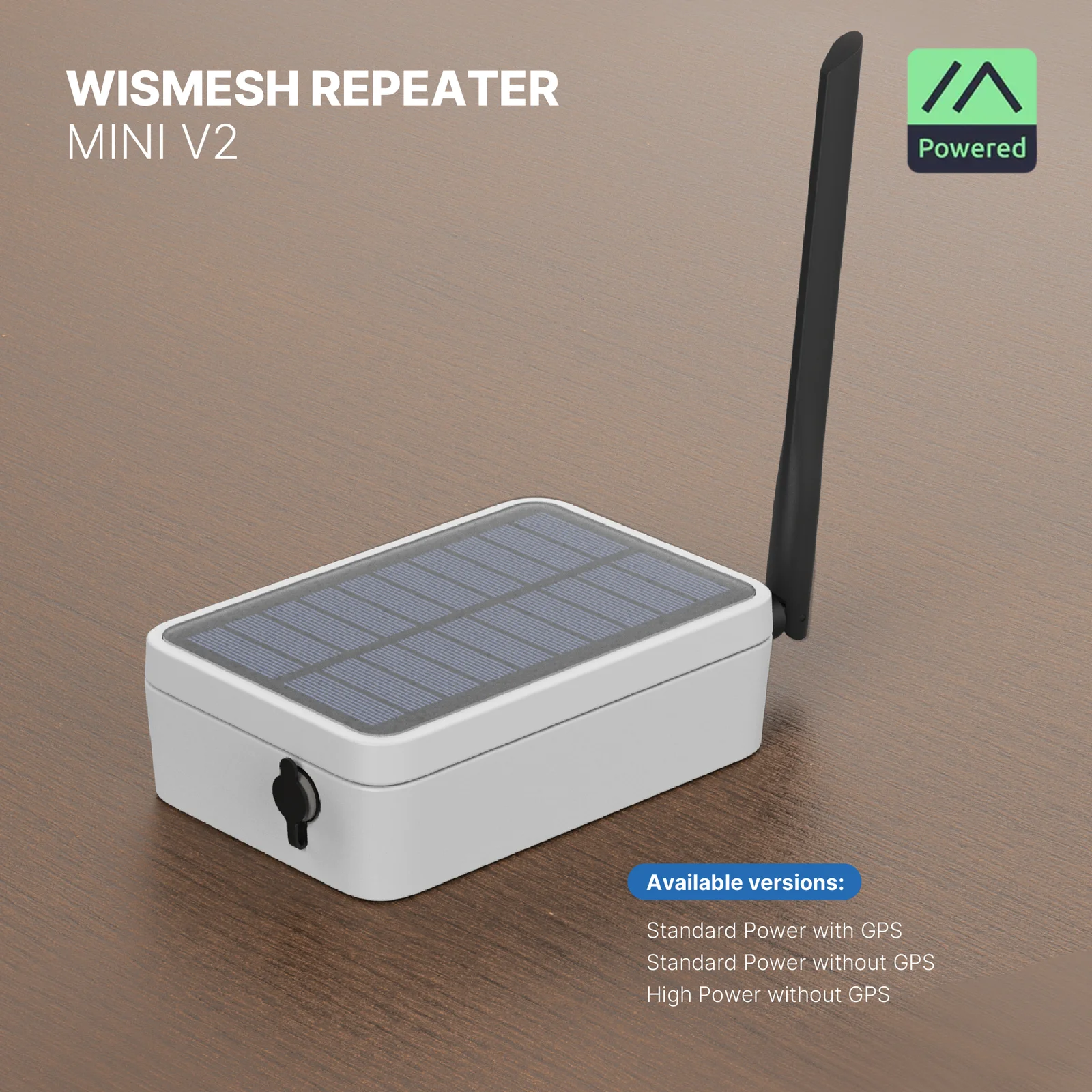

WisMesh Repeater Mini V2 High Power product photo
Image: RAKwireless

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [3]
Details
Build target(s)
rak_wismesh_repeater_mini_hp
Minimum version
Unknown

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreUnsupported—
UMSHUnsupported [4]—

Where to buy

Vendor / configurationPriceBased inShips from
RAKwireless
900 MHz$99.90
Observed 2026-10-19
🇭🇰Unknown
Rokland
Meshtastic · 900 MHz$114.97
Observed 2026-10-19
🇺🇸🇺🇸

Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.

Notes

Compared with the original WisMesh Repeater Mini (RAK10718), the WisMesh Repeater Mini V2 High Power adds:

The high-power RAK10729 version includes an external blade antenna and has no GPS. The 800 MHz and 900 MHz options are separate regional configurations; the listed price matches the 9xx MHz SKU.[1][2]

Uses the RAK3401 core and RAK13302 amplified radio module.[7] The 30 dBm (1 W) figure describes hardware capability; RAK specifies 24.5 dBm (about 280 mW) for the current FCC-certified US915 configuration.[8]

Sources

  1. RAKwireless product listing
  2. RAKwireless product documentation
  3. Meshtastic device hardware catalog
  4. UMSH hardware support list
  5. RAKwireless announces WisMesh Repeater Mini V2 high-power option
  6. RAKwireless WisMesh Repeater Mini (RAK10718) listing
  7. Rokland WisMesh Repeater Mini revision comparison
  8. RAK13302 current US915 certified output (FCC ID 2AF6B-13302)

Last updated 2026-10-20
