WisBlock Meshtastic Starter Kit (RAK3312 + RAK19001)
RAKwireless · Dev-board
Price: $31.99[8]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [1] |
| LoRa chip | SX1262 [2] |
| Processor | ESP32-S3 [2] |
| Radio power | 158 mW (22 dBm) [2] |
| Frequency bands | 864 MHz, 865 MHz, 868 MHz, 915 MHz, 920 MHz, 923 MHz [8] |
| GPS | Optional (add-on) [3] |
| Display type | None [3] |
| Display size | None |
| Display details | optional [3] |
| Input | Buttons [3] |
| Battery | No built-in battery [1] |
| Dedicated solar input | Built in [3] |
| Antenna | External [1] Connector: SMA [1] |
| IP rating | Unknown |
| Dimensions | Unknown |
| Weight | Unknown |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Official [4] | Details
Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher |
| MeshCore | Unsupported | — |
| UMSH | Unsupported [5] | — |
Where to buy
Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.
Notes

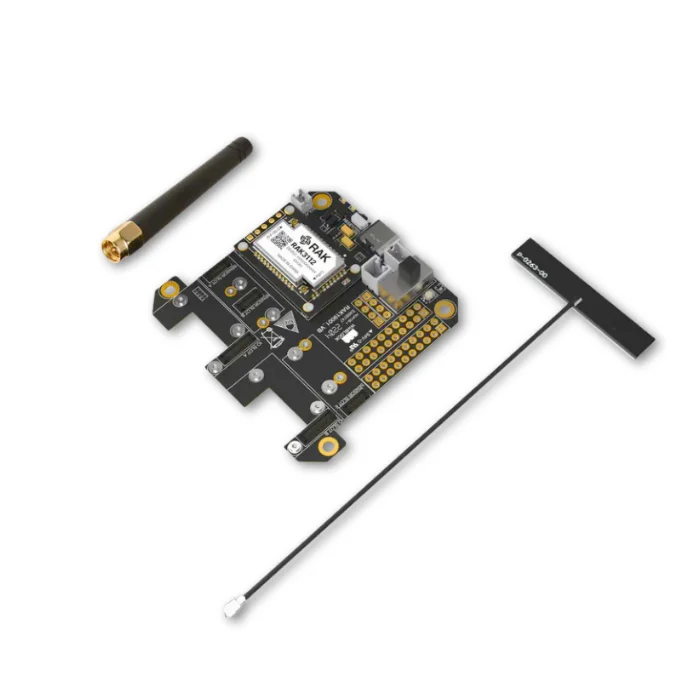

The linked Rokland kit includes the RAK3312 core, RAK19001 base board, US915 LoRa and Wi-Fi/BLE antennas, MHF4-to-SMA pigtail, and USB-C cable; no battery, GNSS module, or display is included.[1] Compatible GNSS and OLED modules can be added to the base board.[3][6][7] The base board supports an optional 5 V solar panel.[3] RAK’s own starter-kit selector offers optional OLED and GNSS configurations at higher prices.[8]
Sources
- Rokland WisMesh RAK3312 + RAK19001 Meshtastic Starter Kit listing
- RAKwireless RAK3312 datasheet
- RAKwireless RAK19001 Base Board documentation
- Meshtastic documentation for RAK3312 core module
- UMSH hardware support list
- RAKwireless RAK12501 WisBlock GNSS module
- RAKwireless RAK1921 WisBlock OLED display module
- RAKwireless WisMesh RAK3312 Meshtastic Starter Kit listing
Last updated 2026-10-20
