WisMesh High Power Booster Starter Kit (RAK10724)

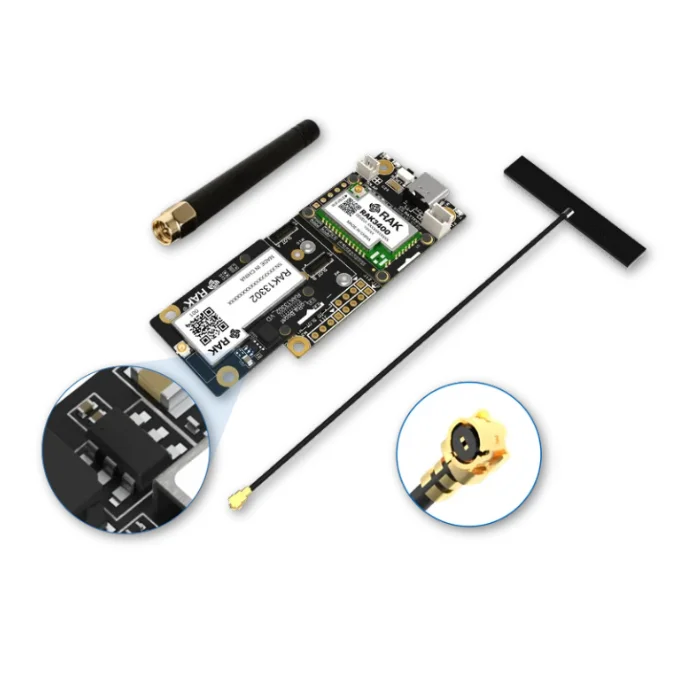

RAK lists the kit as store SKU 115280. The battery-powered package includes the RAK19007 base board, RAK3401 WisBlock Core module (nRF52840), RAK13302 LoRa module, Wi-Fi/BLE PCB antenna, LoRa PCB antenna, USB cable, IPEX-to-SMA cable, SMA rubber LoRa antenna, and screws. The DC-powered package also includes an external-power cable. No battery or enclosure is listed in the package contents. Available options are 800 MHz (EU868/IN865/RU864) or 900 MHz (US915/AU915/KR920/AS923), each with battery or external 5 V power. Older RAK13302 revision VC uses a power-selection jumper. Current revision VD comes in battery-only 001 and external-5-V-only 002 versions; check the module label and match its supply arrangement. Originally advertised as the WisMesh 1W Booster Starter Kit, this device received FCC certification at about 290 mW (FCC ID 2AF6B-13302). RAK now specifies US-certified operating output of 24.5 dBm (280 mW), the lower figure used for comparison. The hardware is rated for up to 30 dBm (1 W), but that capability does not authorize operation above the current certified limit; a higher certified limit would require further approval. July 2026 user reports described low output on specific units and firmware; those reports do not establish behavior across current firmware or every configuration. A RAK12501 GNSS module and RAK1921 OLED display are available separately for WisBlock expansion. The RAK19007 base has a 5 V solar input; the battery-powered version requires a Li-Ion battery, while the external-5-V version requires a regulated supply for its amplifier.

^{[1] [2] [3] [4] [5] [7] [10] [11] [12] [13] [14] [15]}
