WisMesh Board ONE Pocket

RAKwireless · Tracker

Compare with other devices

Price: $46.97[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [6]
ProcessornRF52840 [6]
Radio power158 mW (22 dBm) [6]
Frequency bands864 MHz, 865 MHz, 868 MHz, 915 MHz, 920 MHz, 923 MHz [1]
GPSOptional (add-on) [1]
Display typeNone [1]
Display sizeNone
Display detailsNone [1]
InputButtons [2]
Battery1000 mAh [1]
Dedicated solar inputBuilt in [1]
AntennaExternal [1]
Connector: RP-SMA [1]
IP ratingUnknown
Dimensions77 × 50 × 26.1 mm [1]
WeightUnknown

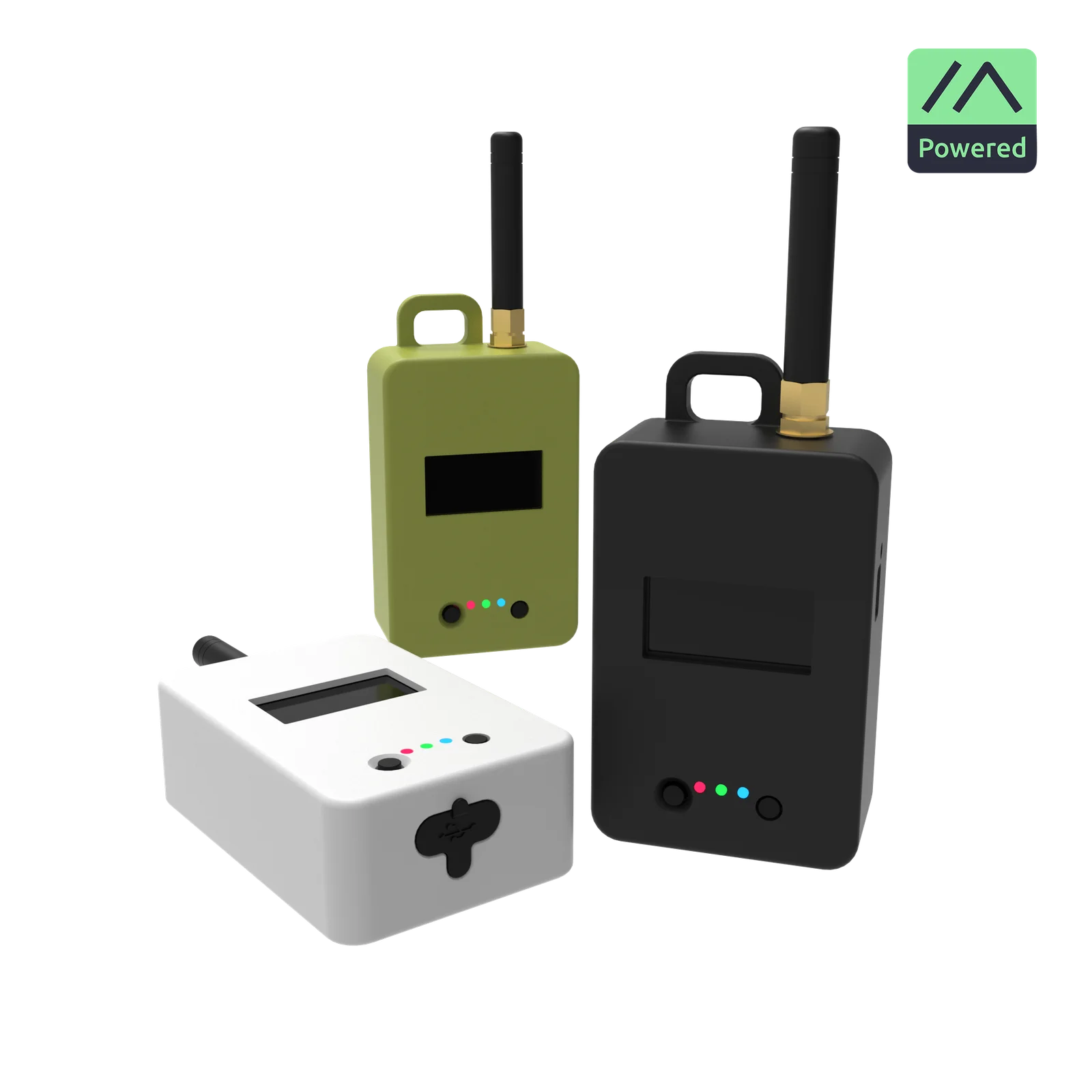

WisMesh Board ONE Pocket product photo
Image: RAKwireless

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [3]
Details
Build target(s)
rak4631
Minimum version
1.2.28

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [4]
Details
Build target(s)
RAK_4631_companion_radio_ble, RAK_4631_companion_radio_usb, RAK_4631_repeater, RAK_4631_room_server
Roles
  • Companion (Bluetooth): RAK_4631_companion_radio_ble
  • Companion (USB): RAK_4631_companion_radio_usb
  • Repeater: RAK_4631_repeater
  • Room server: RAK_4631_room_server
Minimum version
1.0.0a

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [5]—

Where to buy

Vendor / configurationPriceBased inShips from
RAKwireless
9xx MHz$46.97
Observed 2026-10-19
🇭🇰Unknown

Notes

Enclosed Board ONE with a 1,000 mAh battery, 1.3-inch OLED, external LoRa antenna and a dedicated 5 V solar/external-power connector. Enclosure dimensions exclude the antenna.[1]

GNSS, enclosure color and regional band are selectable; the listed price is the no-GNSS configuration.[1] The PCB Bluetooth antenna is separate from the external LoRa antenna.[2]

RAK identifies the fitted radio module as RAK4630.[6]

Sources

  1. RAKwireless WisMesh Board ONE Pocket product listing
  2. RAKwireless WisMesh Board ONE hardware datasheet
  3. Meshtastic device documentation
  4. MeshCore RAK4631 target
  5. UMSH hardware support list
  6. RAKwireless RAK4630 module datasheet

Last updated 2026-10-20
