WisMesh Board ONE

RAKwireless · Dev-board

Compare with other devices

Price: $29.97[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [6]
ProcessornRF52840 [6]
Radio power158 mW (22 dBm) [6]
Frequency bands864 MHz, 865 MHz, 868 MHz, 915 MHz, 920 MHz, 923 MHz [1]
GPSOptional (add-on) [2]
Display typeNone [2]
Display sizeNone
Display detailsoptional [2]
InputButtons [1]
BatteryNo built-in battery [2]
Dedicated solar inputBuilt in [2]
AntennaInternal / External [2]
Connector: IPEX / MHF [2]
IP ratingUnknown
Dimensions60.8 × 22.9 × 9.85 mm [1]
WeightUnknown

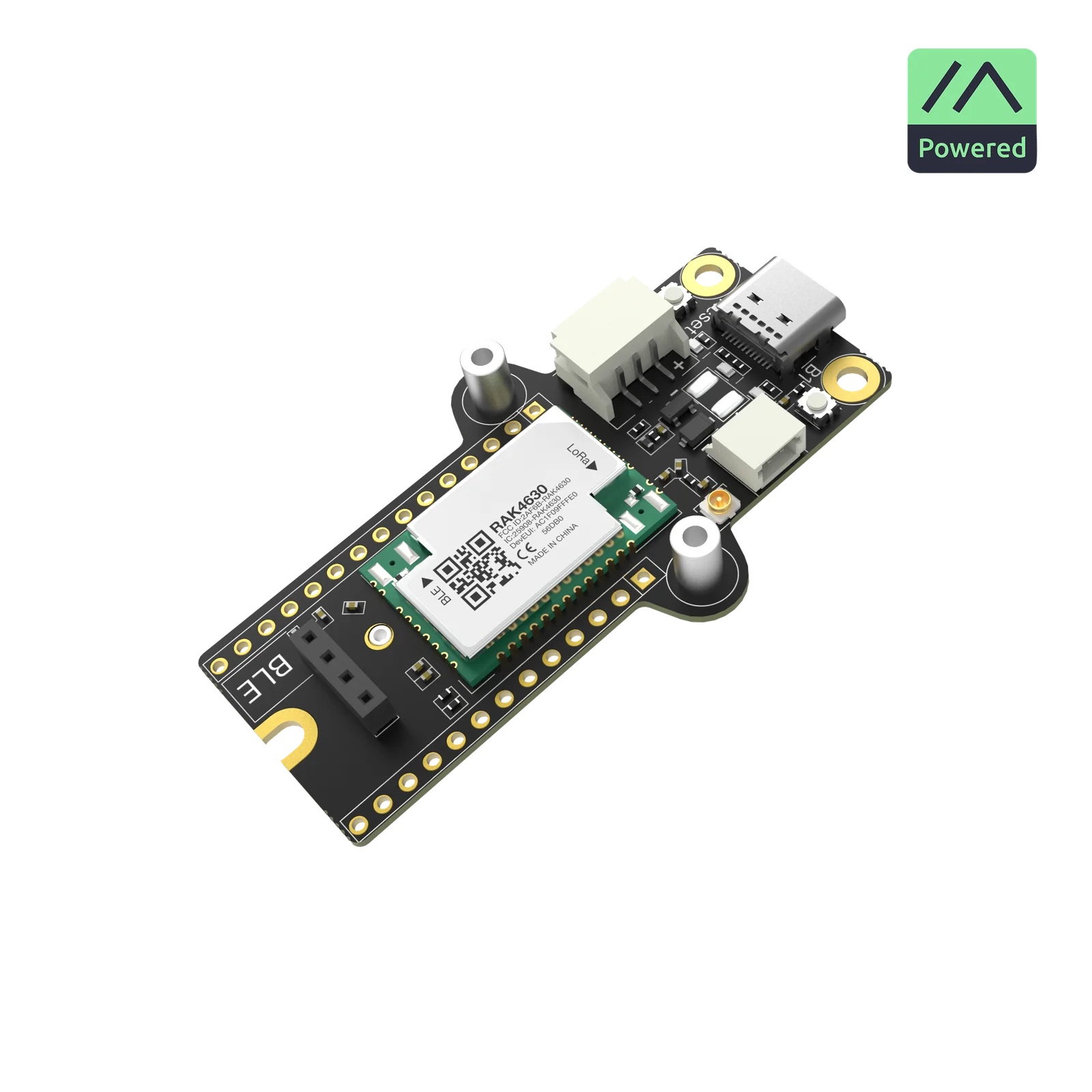

WisMesh Board ONE product photo
Image: RAKwireless

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [3]
Details
Build target(s)
rak4631
Minimum version
1.2.28

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [4]
Details
Build target(s)
RAK_4631_companion_radio_ble, RAK_4631_companion_radio_usb, RAK_4631_repeater, RAK_4631_room_server
Roles
  • Companion (Bluetooth): RAK_4631_companion_radio_ble
  • Companion (USB): RAK_4631_companion_radio_usb
  • Repeater: RAK_4631_repeater
  • Room server: RAK_4631_room_server
Minimum version
1.0.0a

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [5]—

Where to buy

Vendor / configurationPriceBased inShips from
OpenELAB
Global site
868 MHz		€73.45
Observed 2026-10-19
Unknown🇪🇺🇺🇸🇨🇳
RAKwireless
Meshtastic$29.97
Observed 2026-10-19
🇭🇰Unknown
Rokland
Meshtastic$29.97
Observed 2026-10-19
🇺🇸🇺🇸

Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.

Notes

Bare Board ONE has a dedicated 5 V solar input; battery, GNSS and OLED are selectable options. The listed price is the no-GNSS/no-OLED configuration.[1]

The onboard PCB antenna is for Bluetooth. LoRa uses an MHF1/IPEX connector with an included FPC antenna or an external antenna cable.[2][1] Bare-board dimensions are 60.8 × 22.9 × 9.85 mm; the mounted OLED increases the width to 36 mm.[1]

RAK identifies the fitted radio module as RAK4630.[6]

Sources

  1. RAKwireless product listing
  2. RAKwireless WisMesh Board ONE hardware datasheet
  3. Meshtastic device documentation
  4. MeshCore RAK4631 target
  5. UMSH hardware support list
  6. RAKwireless RAK4630 module datasheet
  7. RAKwireless introduces WisMesh Board ONE
  8. Rokland WisMesh Board ONE (B1) Meshtastic® Node development board + optional GPS - 3 pin battery version listing
  9. OpenELAB RakWireless WisMesh Board ONE EU for Meshtastic with GNSS OLED (Pre-sale) exact offer

Last updated 2026-10-20
