NewtPi 2W
Community · Dev-board
Price: N/A
Specifications
| Specification | Value |
|---|---|
| Product status | Discontinued (EOL) [1] |
| LoRa chip | SX1262 [2] |
| Processor | External host [1] |
| Radio power | 1995 mW (33 dBm) [2] |
| Frequency bands | 850–930 MHz [2] |
| GPS | Built in [1] |
| Display type | None [1] |
| Display size | None |
| Display details | None [1] |
| Input | None [5] |
| Battery | No built-in battery [1] |
| Dedicated solar input | No [1] |
| Antenna | External [1] Connector: Unknown |
| IP rating | Unknown |
| Dimensions | Unknown |
| Weight | Unknown |
Software support
The software runs on the connected computer.
| Software | Support | Details |
|---|---|---|
| Meshtastic | Unsupported | — |
| MeshCore | Unsupported | — |
| UMSH | Unsupported [3] | — |
Build resources
Build it from the project documentation linked in Sources. Components and assembly are required.
Notes
Raspberry Pi HAT with an E22-900M33S radio and ATGM336H GNSS. The maker warns to keep the SX1262 power level at 8 or below to prevent PA damage. Designed by wehooper4. The maker states that this product has been discontinued.[1]
Sources
- NewtPi maker README
- Ebyte E22-900M33S specifications
- UMSH hardware support list
- NewtPi 2W schematic published (wehooper4 maker repository)

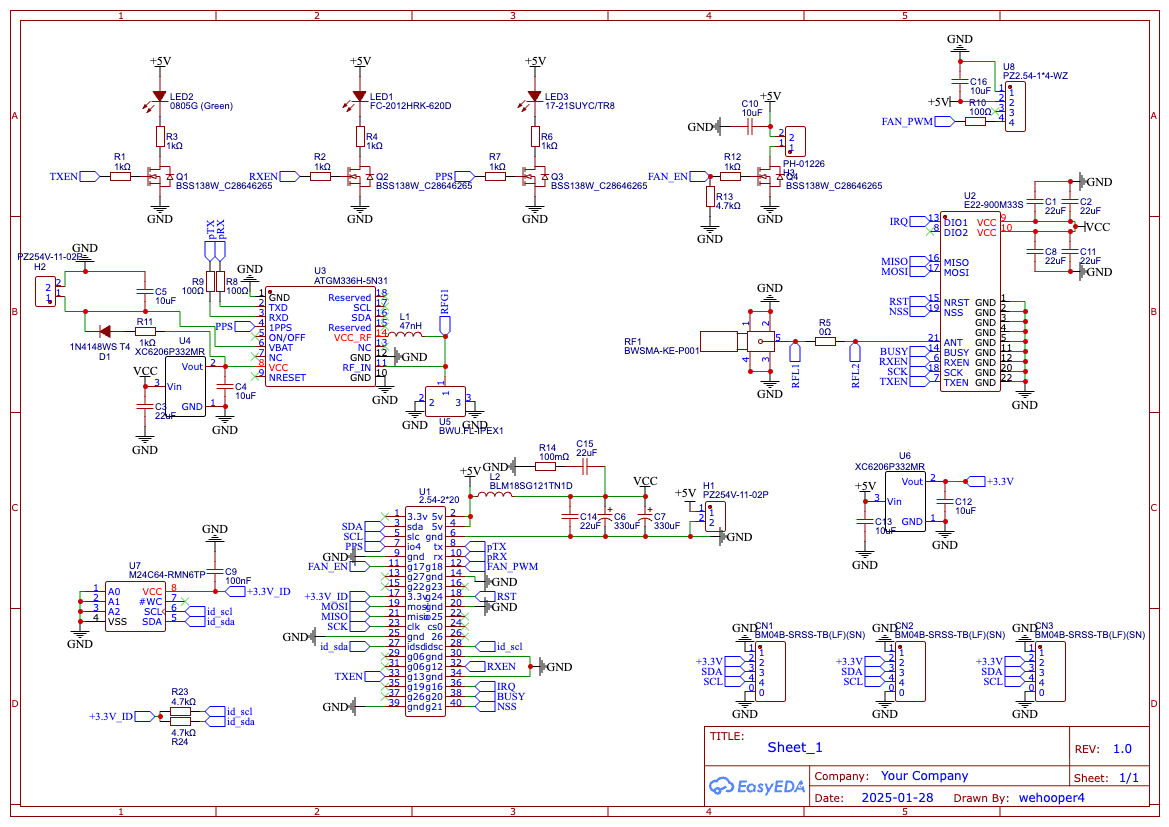

- NewtPi 2W complete schematic
