Nebra Hat 1W

Community · Dev-board

Compare with other devices

Price: N/A

Specifications

SpecificationValue
Product statusDIY design [1]
LoRa chipSX1262 [4]
ProcessorExternal host [1]
Radio power955 mW (29.8 dBm) [1]
Frequency bands902–926 MHz [1]
GPSNot supported [2]
Display typeNone [2]
Display sizeNone
Display detailsNone [2]
InputNone [9]
BatteryNo built-in battery [2]
Dedicated solar inputNo [2]
AntennaExternal [2]
Connector: SMA [2]
IP ratingUnknown
DimensionsUnknown
WeightUnknown

Software support

The software runs on the connected computer.

SoftwareSupportDetails
MeshtasticCommunity [4]
Details
Host software
meshtasticd
Host build target(s)
native
MeshCoreUnsupported—
UMSHUnsupported [7]—

Build resources

Build it from the project documentation linked in Sources. Components and assembly are required.

Notes

1W Raspberry Pi HAT radio configuration, driven by a Linux host running meshtasticd. It uses E22-900M30S; the 2 W version adds a 902–926 MHz band-pass filter and IPEX output. The maker marks this design superseded by Zebra Hat and says US use is Part 97 amateur radio only; it is not certified for unlicensed use. Designed by wehooper4.

[1] [2] [4]

Resources

Sources

  1. Nebra Hat maker README, configuration, power table and lifecycle

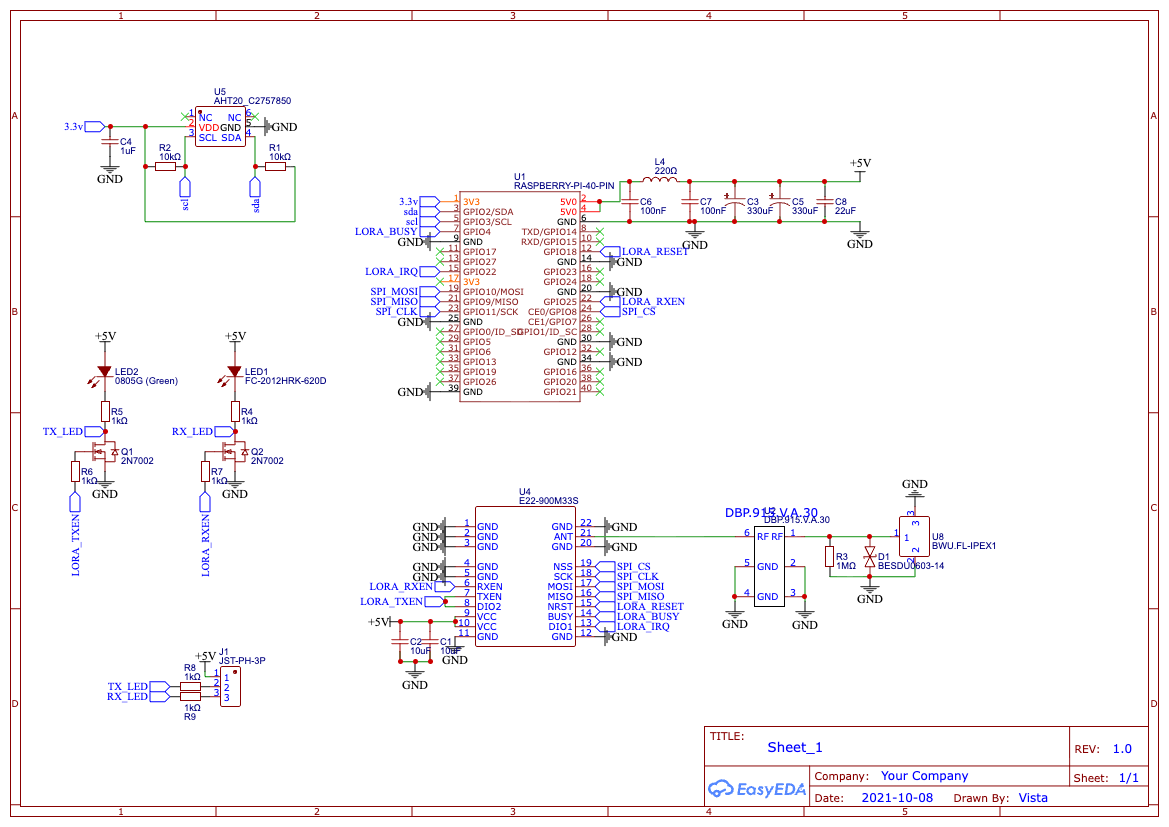

  2. Nebra Hat 1W schematic
  3. Nebra Hat 2W schematic
  4. Meshtastic Nebra Hat 1W config
  5. Meshtastic Nebra Hat 2W config
  6. Ebyte E22-900M30S module specification
  7. UMSH hardware support list
  8. Nebra Hat 1W schematic published (wehooper4 maker repository)
  9. Nebra Hat 1W schematic
