Muzi.Works Heltec T114 Display + GPS Kit

Muzi.Works · Dev-board

Compare with other devices

Price: $56.90[2]

Specifications

SpecificationValue
Product statusActive [2]
LoRa chipSX1262 [3]
ProcessornRF52840 [3]
Radio power126 mW (21 dBm) [3]
Frequency bands470–510 MHz, 863–928 MHz [3]
GPSBuilt in [1]
Display typeLCD [1]
Display size1.14 in [1]
Display details1.14-inch 135 × 240 TFT LCD [1]
InputButtons [3]
Battery2000 mAh [1]
Dedicated solar inputBuilt in [3]
AntennaExternal [1]
Connector: SMA via U.FL/IPEX pigtail [1]
IP ratingUnknown
DimensionsUnknown
WeightUnknown

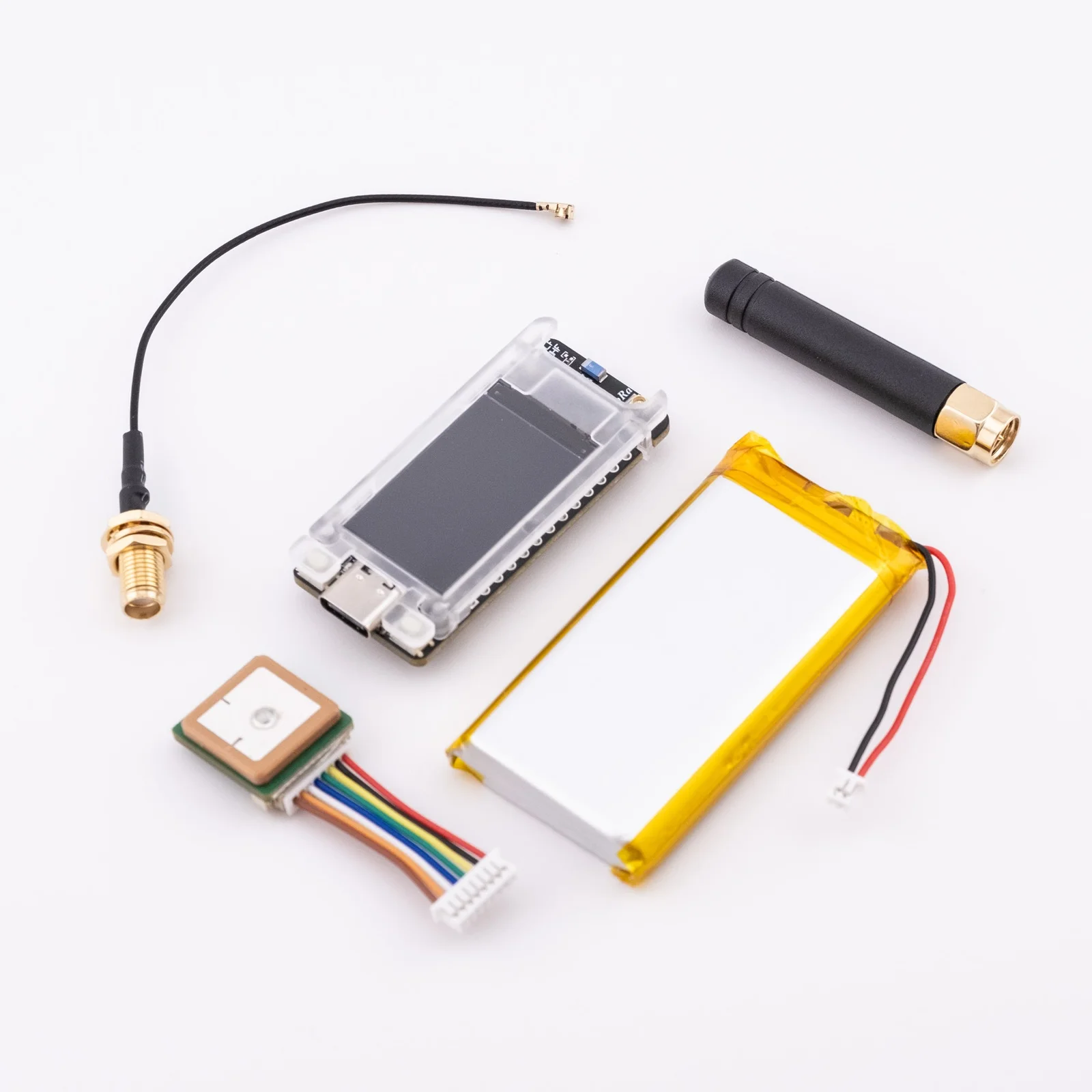

Muzi.Works Heltec T114 kit parts: board, antenna, battery and GPS module
Image: Muzi.Works

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [4]
Details
Build target(s)
heltec-mesh-node-t114
Minimum version
2.4.0.46d7b82

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [5]
Details
Build target(s)
Heltec_t114_companion_radio_ble, Heltec_t114_companion_radio_usb, Heltec_t114_repeater, Heltec_t114_room_server
Roles
  • Companion (Bluetooth): Heltec_t114_companion_radio_ble
  • Companion (USB): Heltec_t114_companion_radio_usb
  • Repeater: Heltec_t114_repeater
  • Room server: Heltec_t114_room_server
Minimum version
1.2.0

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [6]—

Where to buy

Vendor / configurationPriceBased inShips from
Muzi.Works
868 / 915 MHz$56.90
Observed 2026-10-19
🇺🇸🇺🇸

Notes

Loose-parts kit with a T114 board, display, GPS module, battery, pigtail and regional 868/915 MHz whip antenna; assembly is required and no protective case is listed.[1] Heltec rates the T114 at 21 ± 1 dBm.[3]

Sources

  1. Muzi.Works T114 Display GPS and battery kit
  2. Muzi.Works current T114 kit product data
  3. Heltec Mesh Node T114 datasheet
  4. Meshtastic officially supported device directory
  5. MeshCore Heltec T114 target
  6. UMSH hardware support list

Last updated 2026-10-21
