Muzi.Works SuperBase DIY Kit

Muzi.Works · Dev-board

Compare with other devices

Price: $65.00[2]

Specifications

SpecificationValue
Product statusActive [2]
LoRa chipSX1262 [3]
ProcessornRF52840 [3]
Radio power100 mW (20 dBm) [3]
Frequency bands868 MHz, 915 MHz [1]
GPSBuilt in [1]
Display typeOLED [4]
Display size1.12 in [4]
Display details1.12-inch 128 × 128 OLED [4]
InputJoystick [1]
Battery1500 mAh [5]
Dedicated solar inputNo [1]
AntennaExternal [1]
Connector: SMA [1]
IP ratingUnknown
Dimensions47.8 × 79.5 × 19 mm [1]
Weight80.3 g [1]

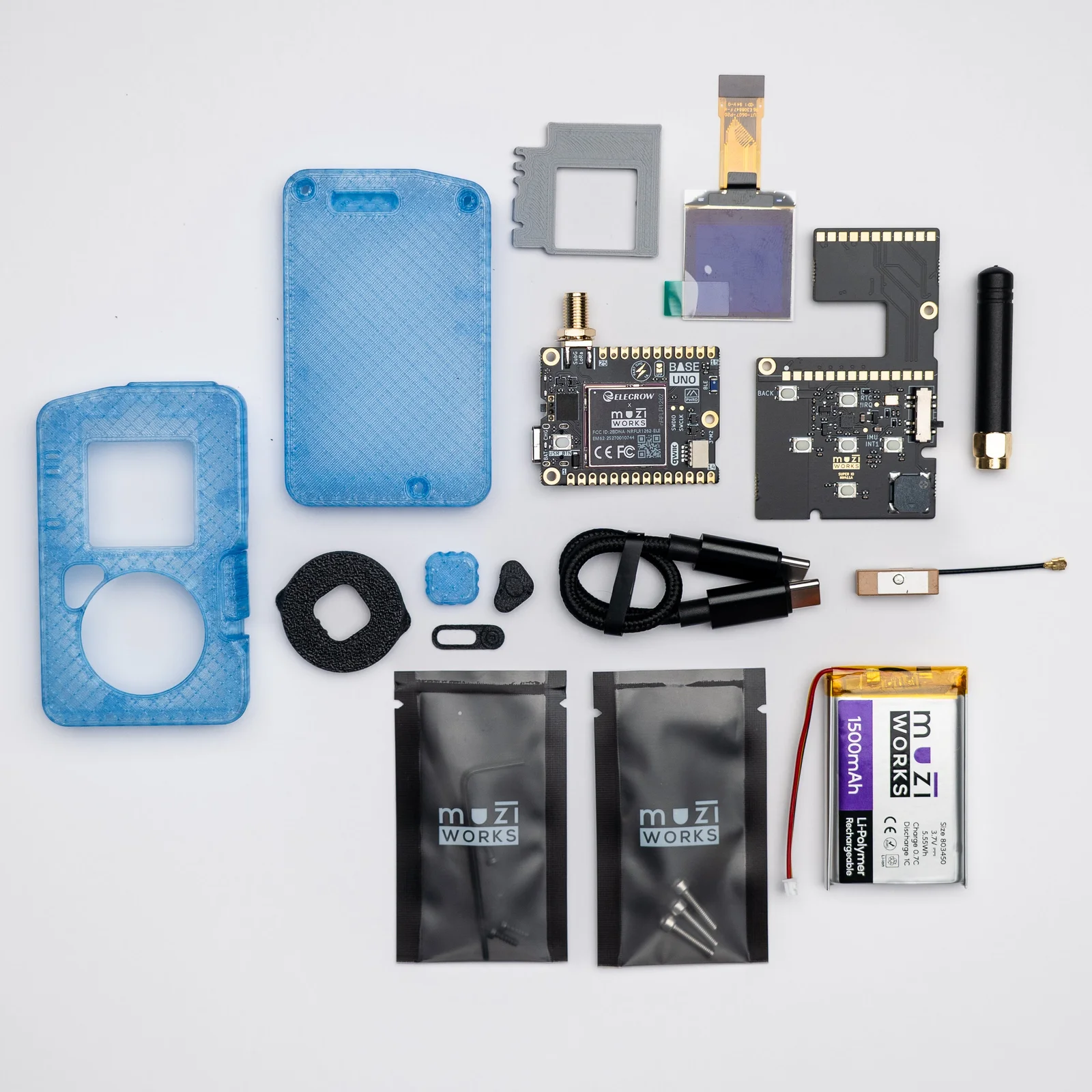

Muzi.Works SuperBase DIY kit components laid out before assembly
Image: Muzi.Works

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [6]
Details
Build target(s)
muzi-base
Minimum version
2.7.16.a597230

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [7]
Details
Build target(s)
muzi_base_uno_companion_radio_ble, muzi_base_uno_companion_radio_usb, muzi_base_uno_repeater, muzi_base_uno_room_server, muzi_base_uno_superIO_companion_radio_ble
Roles
  • Companion (Bluetooth): muzi_base_uno_companion_radio_ble, muzi_base_uno_superIO_companion_radio_ble
  • Companion (USB): muzi_base_uno_companion_radio_usb
  • Repeater: muzi_base_uno_repeater
  • Room server: muzi_base_uno_room_server
Minimum version
1.18.0

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [8]—

Where to buy

Vendor / configurationPriceBased inShips from
Muzi.Works
View listing$65.00
Observed 2026-10-19
🇺🇸🇺🇸

Notes

DIY build kit includes Base Uno and Super IO parts and requires soldering before use.[1][4] It includes a 1,500 mAh BB15 battery.[5] The finished case exposes USB-C for charging and has no external dedicated solar input.[1] Uses the Muzi Base Uno.[3]

Sources

  1. Muzi.Works SuperBase
  2. Muzi.Works SuperBase current variant feed
  3. Muzi.Works Base Uno
  4. Muzi.Works Super IO
  5. Muzi.Works BB15 battery
  6. Meshtastic officially supported device directory
  7. MeshCore Muzi Base target (Duo and Uno builds)
  8. UMSH hardware support list
  9. Muzi Works introduces SuperBase

Last updated 2026-10-21
