Muzi.Works H2T

Name: Muzi.Works H2T
Brand: Muzi.Works
Price: 89.00 USD

Muzi.Works · Tracker

Price: $89.00^[2]

Specifications

Specifications for Muzi.Works H2T
Specification	Value
Product status	Active^[2]
LoRa chip	SX1262^[3]
Processor	nRF52840^[3]
Radio power	126 mW (21 dBm)^[3]
Frequency bands	470–510 MHz, 863–928 MHz^[3]
GPS	Built in^[1]
Display type	LCD^[5]
Display size	1.14 in^[5]
Display details	1.14-inch 135 × 240 TFT LCD^[5]
Input	Buttons^[3]
Battery	2000 mAh^[1]
Dedicated solar input	No^[1]
Antenna	External^[1] Connector: SMA via U.FL/IPEX pigtail^[1]
IP rating	Unknown
Dimensions	50.9 × 72.7 × 19.7 mm^[1]
Weight	85 g^[1]

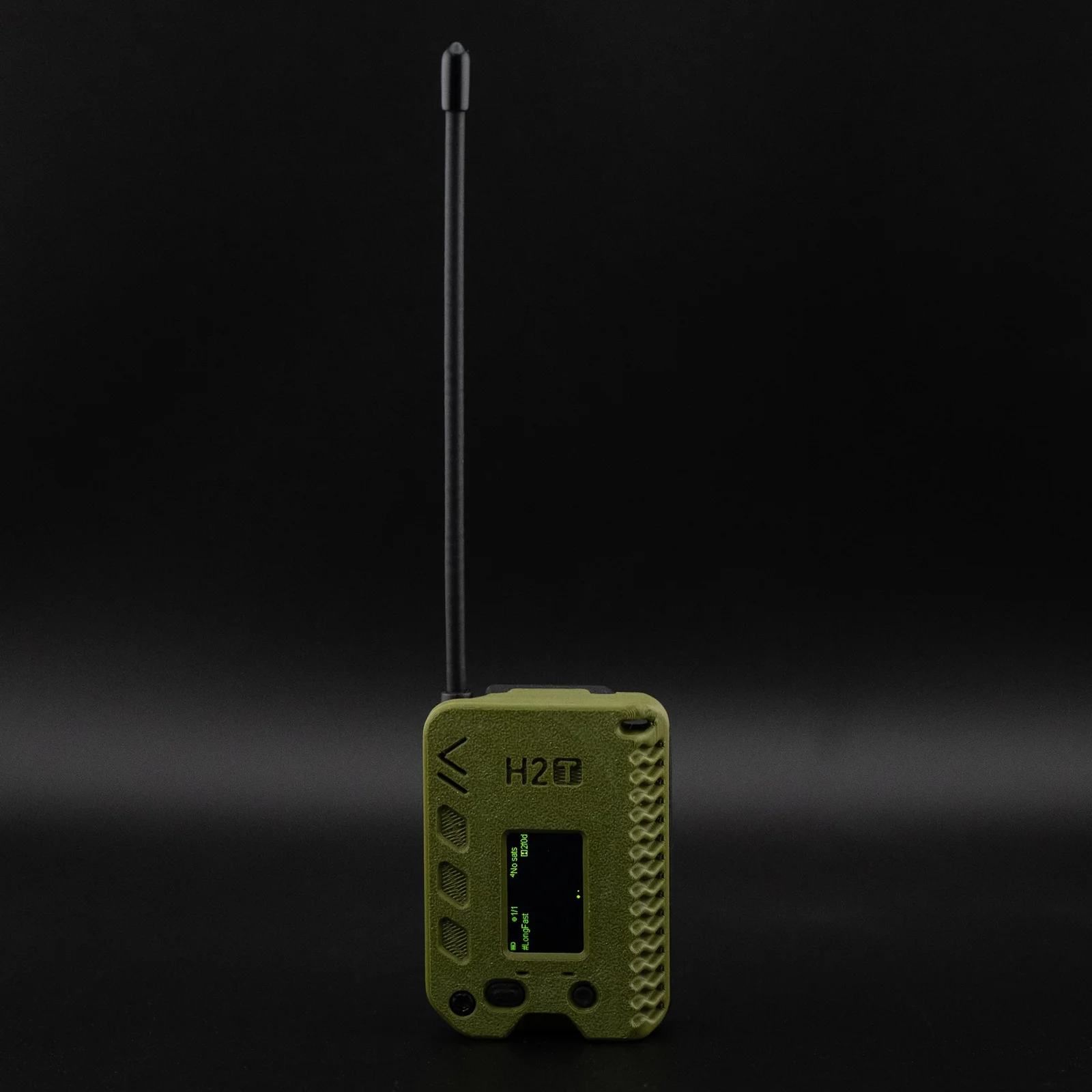

Muzi.Works H2T handheld with fitted display, GPS and antenna — Image: Muzi.Works

Firmware support

Firmware support for Muzi.Works H2T
Firmware	Support	Details
Meshtastic	Official^[4]	Details Build target(s) `heltec-mesh-node-t114` Minimum version 2.4.0.46d7b82 Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher
MeshCore	Supported^[7]	Details Build target(s) `Heltec_t114_companion_radio_ble`, `Heltec_t114_companion_radio_usb`, `Heltec_t114_repeater`, `Heltec_t114_room_server` Roles Companion (Bluetooth): `Heltec_t114_companion_radio_ble` Companion (USB): `Heltec_t114_companion_radio_usb` Repeater: `Heltec_t114_repeater` Room server: `Heltec_t114_room_server` Minimum version 1.2.0 Confirm your exact device in the official flasher before choosing a build. MeshCore web flasher
UMSH	Unsupported^[8]	—

Where to buy

Vendors for Muzi.Works H2T
Vendor / configuration	Price	Based in	Ships from
Muzi.Works
Meshtastic · 915 / 868 MHz	$89.00 Observed 2026-10-19	🇺🇸	🇺🇸

Notes

The complete H2T includes the GPS module, 2,000 mAh battery, pigtail, and regional whip.^[1] The maker product photos show the optional T114 display fitted.^[5]^[6] The finished enclosure’s solar input is not externally accessible.^[1] The H2T uses a Heltec T114 board with GPS.^[1]
