MeshToad V3

NULLHOP · Dev-board

Compare with other devices

Price: $45.00[2]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [3]
ProcessorExternal host [4]
Radio power1000 mW (30 dBm) [5]
Frequency bands902–928 MHz [5]
GPSUnknown
Display typeNone
Display sizeNone
Display detailsNo display [1]
InputUnknown
BatteryNo built-in battery [4]
Dedicated solar inputNo [4]
AntennaExternal [2]
Connector: U.FL / SMA [2]
IP ratingUnknown
DimensionsUnknown
WeightUnknown

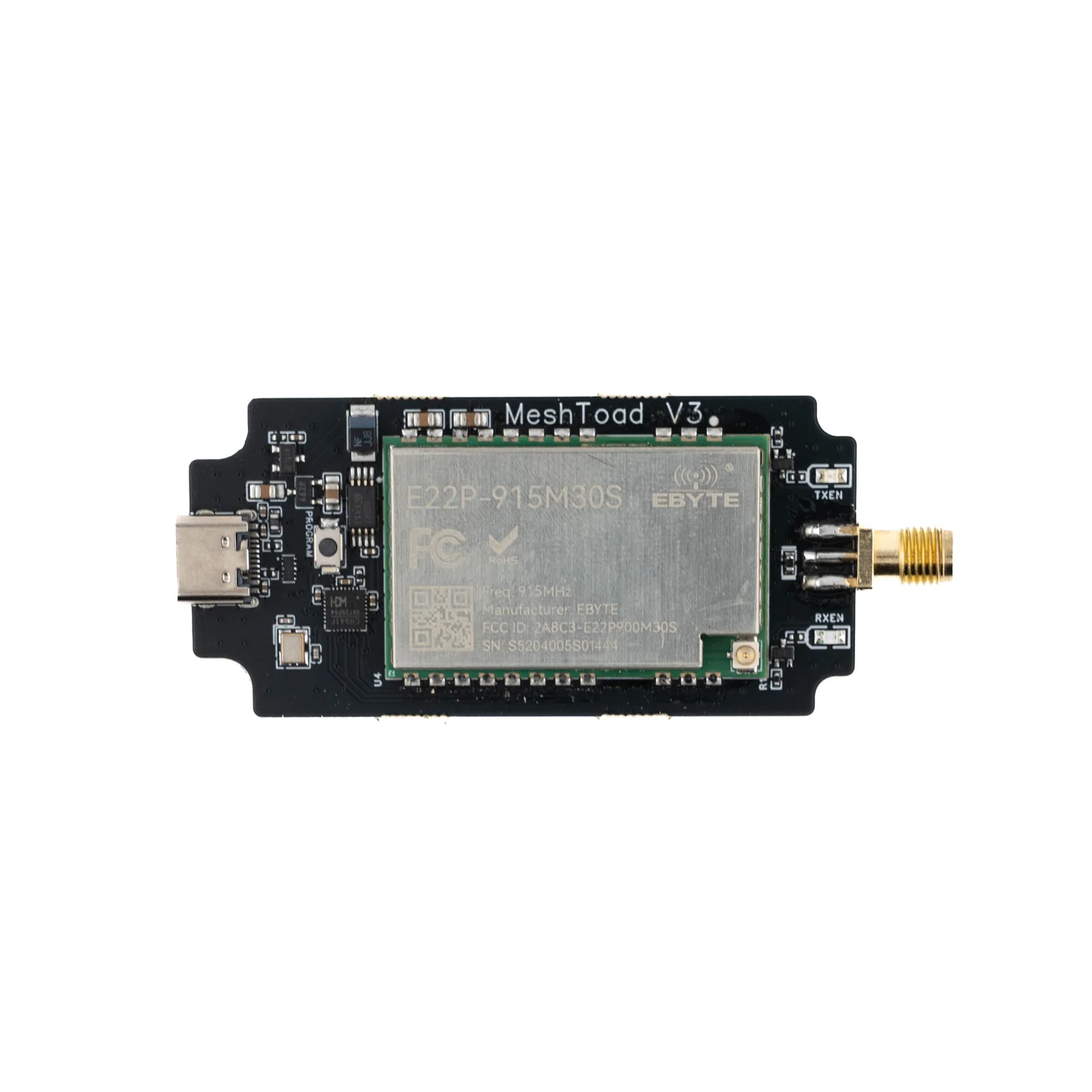

NULLHOP MeshToad V3 bare board with Ebyte LoRa module installed
Image: Muzi.Works

Software support

The software runs on the connected computer.

SoftwareSupportDetails
MeshtasticOfficial [4]
Details
Host software
meshtasticd
Host build target(s)
native
MeshCoreSupported [7]
Details
Host software
openHOP Repeater (Linux)
UMSHUnsupported [6]—

Where to buy

Vendor / configurationPriceBased inShips from
Muzi.Works
View listing$45.00
Observed 2026-10-19
🇺🇸🇺🇸

Notes

USB radio for a separate host computer.[1][4] The V3 uses an E22P-915M30S module. The bare board is $45, or $55 with the optional PETG case; a LoRa antenna is not included.[3][2][1] At least 5 V is required for the module to reach its rated output.[5]

Sources

  1. NULLHOP MeshToad V3 listing
  2. NULLHOP MeshToad V3 variant and stock data
  3. MeshToad V3 module photo
  4. Meshtastic USB MeshToad device configuration
  5. EBYTE E22P-915M30S amplified LoRa module specification
  6. UMSH hardware support list
  7. openHOP Repeater host software — SX1262 CH341 backend and GPIO mapping

Last updated 2026-10-21
