Meshtastic 64
BIT Zeal · Dev-board
Price: $94.00[1]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [1] |
| LoRa chip | SX1262 [1] |
| Processor | ESP32-S3 [1] |
| Radio power | 126 mW (21 dBm) [4] |
| Frequency bands | 868 MHz, 915 MHz [1] |
| GPS | Not supported [1] |
| Display type | OLED [4] |
| Display size | 0.96 in [4] |
| Display details | 0.96-inch, 128 × 64 OLED [4] |
| Input | Buttons [4] |
| Battery | 1000 mAh [1] |
| Dedicated solar input | No [1] |
| Antenna | External [2] Connector: Unknown |
| IP rating | Unknown |
| Dimensions | Unknown |
| Weight | Unknown |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Official [3] | Details
Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher |
| MeshCore | Unsupported | — |
| UMSH | Unsupported [5] | — |
Where to buy
| Vendor / configuration | Price | Based in | Ships from |
|---|---|---|---|
| BIT Zeal | |||
| View listing | Check vendor | Unknown | Unknown |
Notes

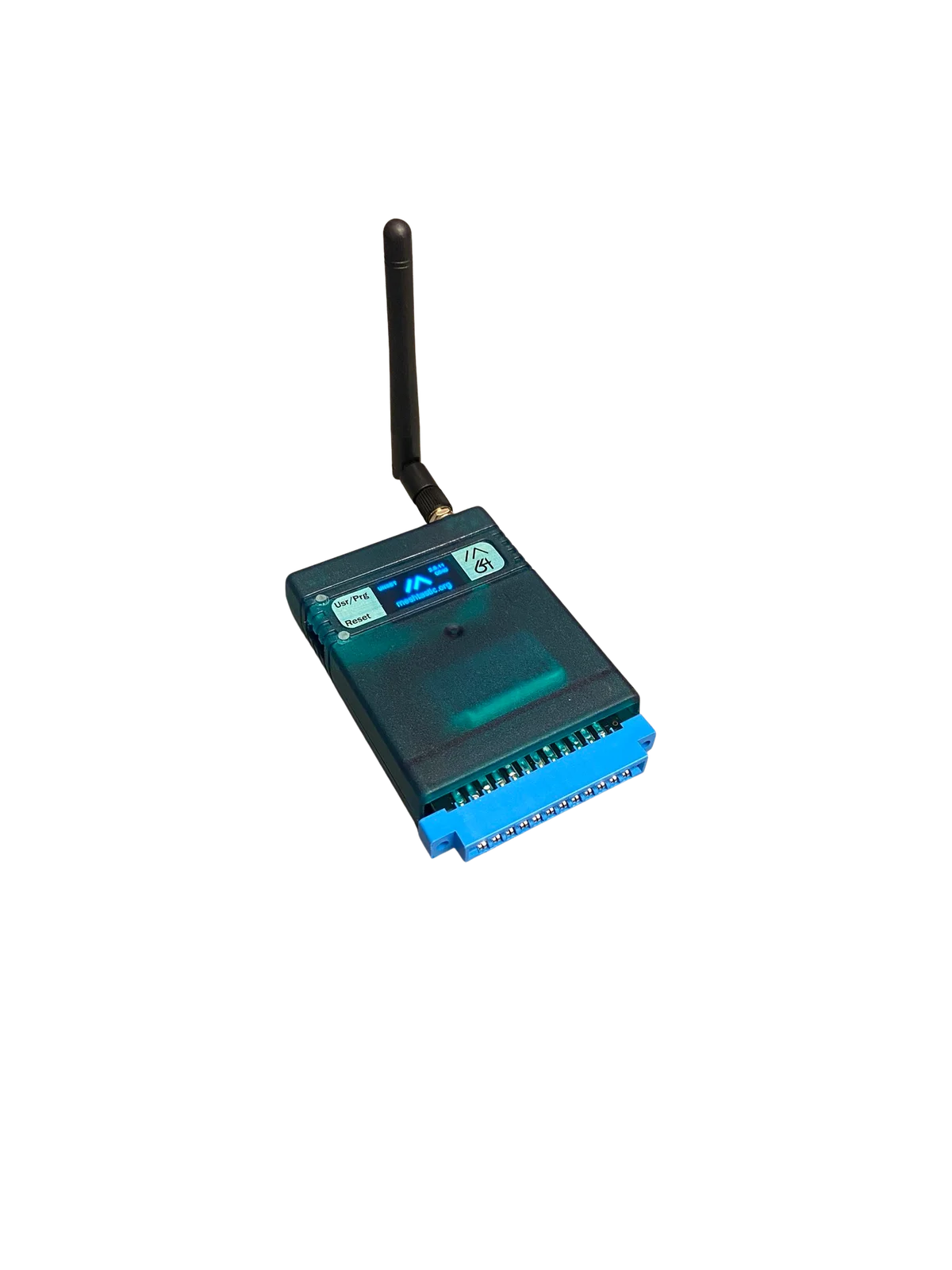

A stock Heltec WiFi LoRa 32 V3 sits in a Commodore 64 User Port adapter. The installed board is rated at 21 ±1 dBm.[2][4]
The C64 host connection requires a 5 V supply rated for at least 2.5 A; the radio can also operate standalone over Bluetooth or USB-C.[1][2]
Sources
- BIT Zeal Meshtastic 64 product page
- Meshtastic 64 maker build log
- Meshtastic Heltec LoRa 32 V3 documentation
- Heltec WiFi LoRa 32 V3 product specifications
- UMSH hardware support list
Last updated 2026-10-21
