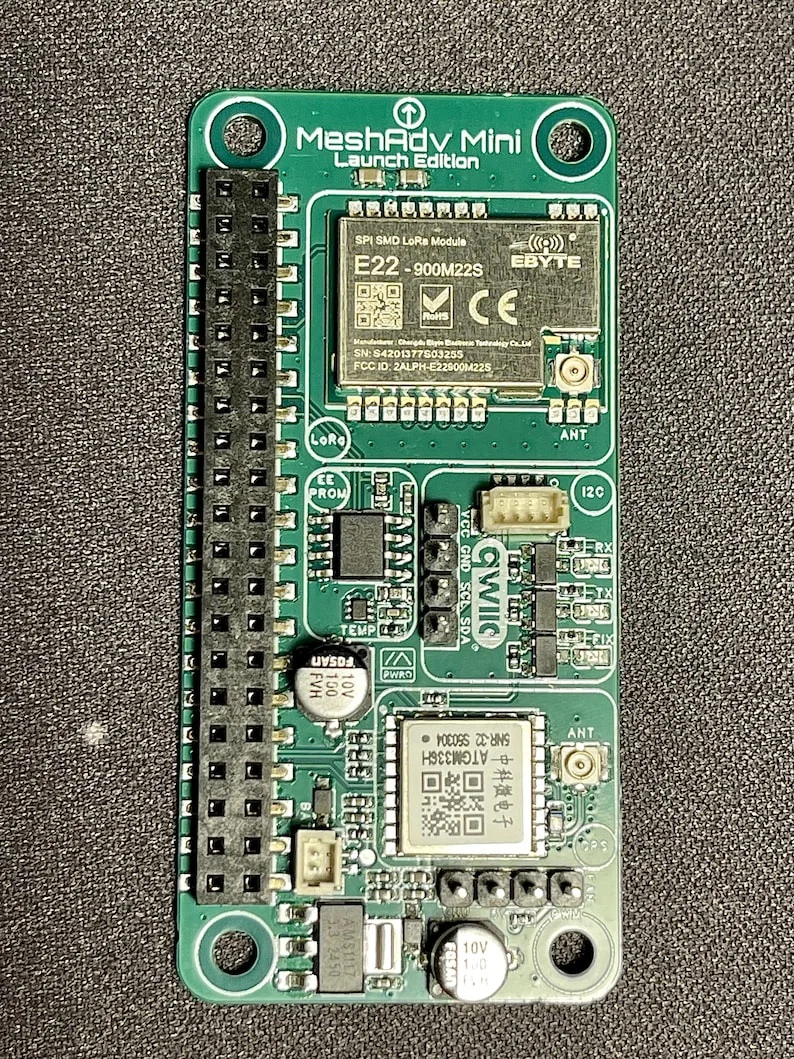

MeshAdv Mini
FrequencyLabs · Dev-board
Price: $75.00[1]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [1] |
| LoRa chip | SX1262 [3] |
| Processor | External host [2] |
| Radio power | 158 mW (22 dBm) [3] |
| Frequency bands | 850–930 MHz [3] |
| GPS | Built in [2] |
| Display type | None [2] |
| Display size | None |
| Display details | None [2] |
| Input | None [2] |
| Battery | No built-in battery [2] |
| Dedicated solar input | No [2] |
| Antenna | External [1] Connector: IPEX/U.FL [1] |
| IP rating | Unknown |
| Dimensions | Unknown |
| Weight | Unknown |
Software support
The software runs on the connected computer.
| Software | Support | Details |
|---|---|---|
| Meshtastic | Community [5] | Details
|
| MeshCore | Supported [6] | Details
|
| UMSH | Unsupported [7] | — |
Where to buy
| Vendor / configuration | Price | Based in | Ships from |
|---|---|---|---|
| Etsy: FrequencyLabs | |||
| 915 / 868 MHz | $75.00 Observed 2026-10-19 | Unknown | 🇺🇸 |
Notes
Requires a separately supplied Raspberry Pi host; the listing includes the HAT and extended 40-pin header but not the IPEX LoRa or active-GPS antennas. [1] The Pi Zero-compatible board adds HAT+ EEPROM, I²C/Qwiic breakout and a 5 V PWM fan header. [2] The listing identifies 868 MHz and 915 MHz regional versions. [1] The LoRa radio is an Ebyte E22-900M22S module. [1] [3]
Resources
- MeshAdv Mini project and setupCommunity projectPublication date unknown
Sources
- MeshAdv Mini Launch Edition Etsy listing
- FrequencyLabs MeshAdv Mini project documentation
- Ebyte E22-900M22S module specifications
- FrequencyLabs MeshAdv Mini release announcement in project README
- Meshtasticd config addition for MeshAdv Mini E22-900M22S
- openHOP Repeater supported-device presets
- UMSH supported hardware list
Last updated 2026-10-20
