T-Display P4 (SX1262)

LILYGO · Handheld

Compare with other devices

Price: $97.40[2]

Specifications

SpecificationValue
Product statusActive [2]
LoRa chipSX1262 [2]
ProcessorESP32-P4 [1]
Radio powerUnknown
Frequency bands400–520 MHz, 830–945 MHz [2]
GPSBuilt in [1]
Display typeUnknown
Display sizeUnknown
Display details4.1-inch AMOLED or 4.05-inch TFT touchscreen [1]
InputTouchscreen [3]
BatteryUnknown
Dedicated solar inputNo [1]
AntennaInternal / External [1]
Connector: MMCX [1]
IP ratingUnknown
Dimensions63 × 109 × 22 mm [1]
WeightUnknown

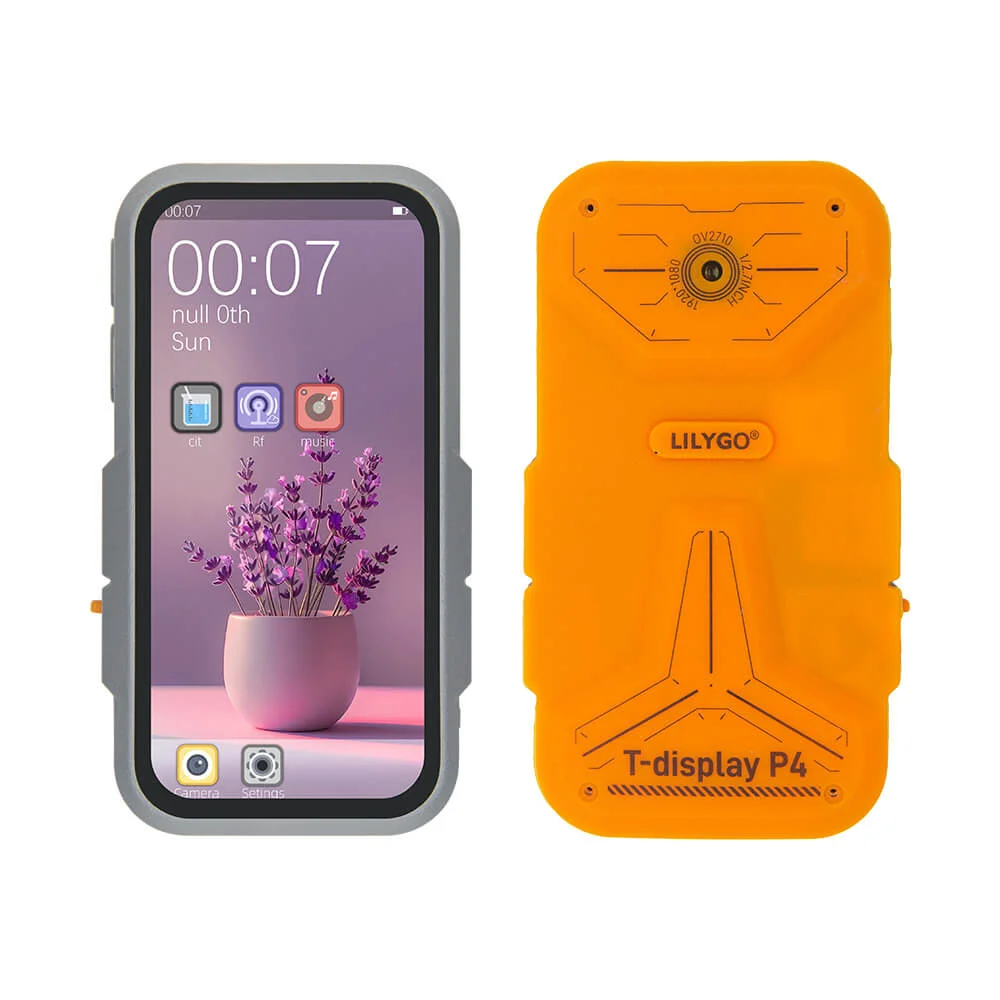

T-Display P4 (SX1262) product photo
Image: LILYGO

Firmware support

FirmwareSupportDetails
MeshtasticUnsupported—
MeshCoreUnsupported—
UMSHUnsupported [6]—

Where to buy

Vendor / configurationPriceBased inShips from
LILYGO
400–520 / 830–945 MHzFrom $97.40
Observed 2026-10-19
🇨🇳🇨🇳🇺🇸🇨🇦🇪🇺
OpenELAB
Global site
830–945 MHz		€132.14
Observed 2026-10-19
Unknown🇪🇺🇺🇸🇨🇳
US site
830–945 MHz		$161.97
Observed 2026-10-19
Unknown🇪🇺🇺🇸🇨🇳

Notes

The P4 SX1262 option is sold in 400–520 MHz and 830–945 MHz bands. Display choices are H753 4.1-inch AMOLED and H753-01 4.05-inch TFT. The main processor is ESP32-P4; ESP32-C6 is a separate wireless coprocessor.

[1] [2]

Sources

  1. LILYGO T-Display P4 hardware README
  2. LILYGO T-Display P4 current product variants
  3. LILYGO T-Display P4 documentation
  4. Meshtastic device hardware catalog
  5. MeshCore official flasher catalog
  6. UMSH hardware support list
  7. LILYGO official exact-product version history
  8. OpenELAB LILYGO T-Display P4 SX1262 830-945MHz exact offer
  9. OpenELAB US store: LILYGO T-Display P4 SX1262 830-945MHz (Pre-sale, back in 3-4 weeks)

Last updated 2026-10-20
