T-LoRa V2.1-1.8
LILYGO · Dev-board
Price: Unknown
Specifications
| Specification | Value |
|---|---|
| Product status | Discontinued (EOL) [6] |
| LoRa chip | SX1280 [1] |
| Processor | ESP32 [1] |
| Radio power | Unknown |
| Frequency bands | 2.4 GHz [1] |
| GPS | Not supported [1] |
| Display type | OLED [1] |
| Display size | 0.96 in [1] |
| Display details | 0.96-inch OLED [1] |
| Input | None [2] |
| Battery | Unknown |
| Dedicated solar input | No [1] |
| Antenna | External [1] Connector: SMA [1] |
| IP rating | Unknown |
| Dimensions | Unknown |
| Weight | Unknown |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Community [3] | Details
Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher |
| MeshCore | Unsupported | — |
| UMSH | Unsupported [4] | — |
Where to buy
No buy links yet.
Notes
The SX1280 model operates at 2.4 GHz and is distinct from sub-GHz T-LoRa V2.1-1.6 boards; use the matching 2.4 GHz configuration and antenna. Treated as discontinued: LILYGO's store lists no T-LoRa or T3 boards, and its earlier T3 V1.6.1 page is gone.[6]
Sources
- Meshtastic community-supported LILYGO LoRa board documentation

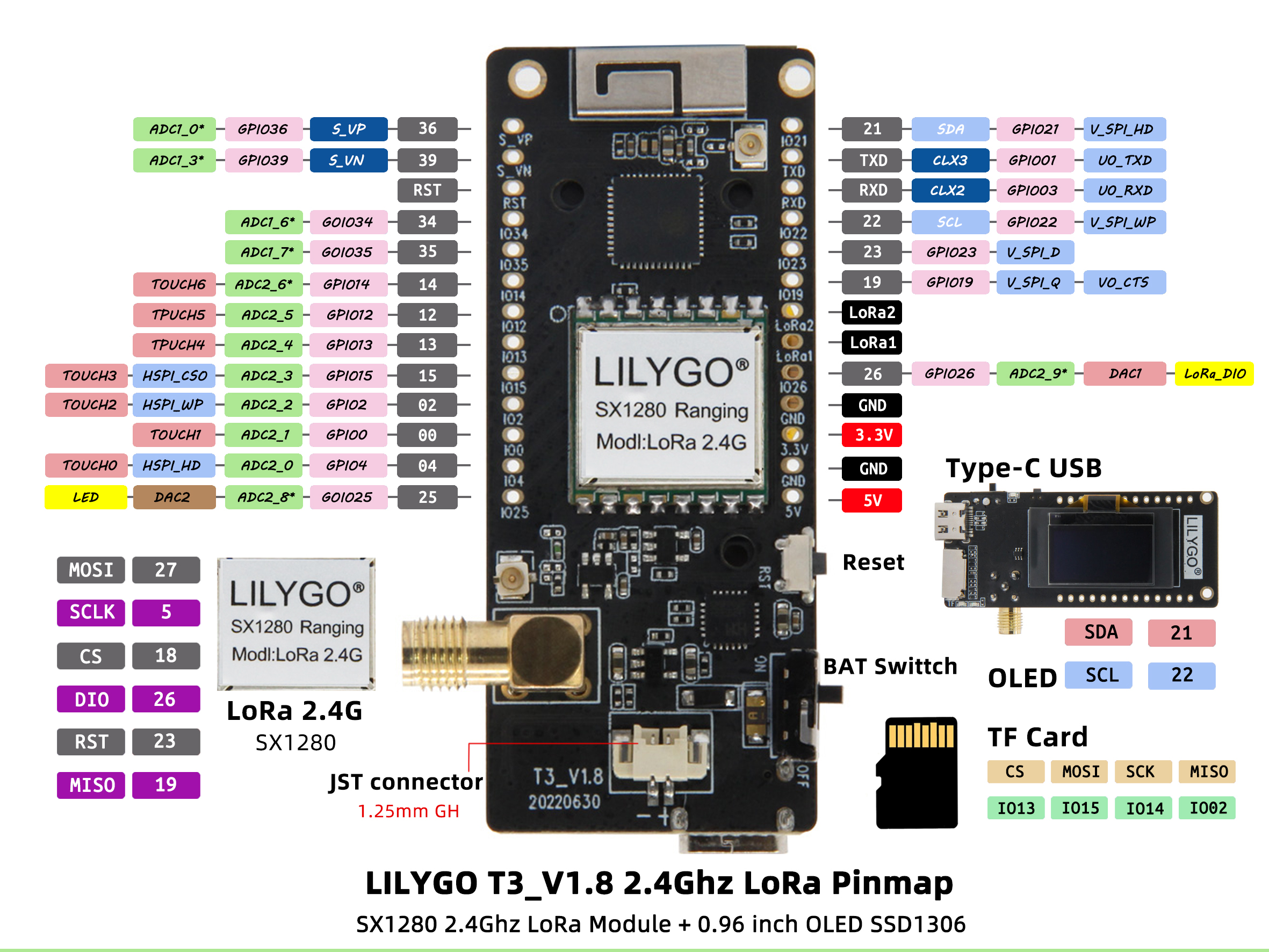

- Archived LILYGO V1.8 pin-map
- Meshtastic community-supported LILYGO LoRa board directory
- UMSH hardware support list
- Meshtastic TLORA 2.1-1.8 support change
- LILYGO store front page
Last updated 2026-10-20
