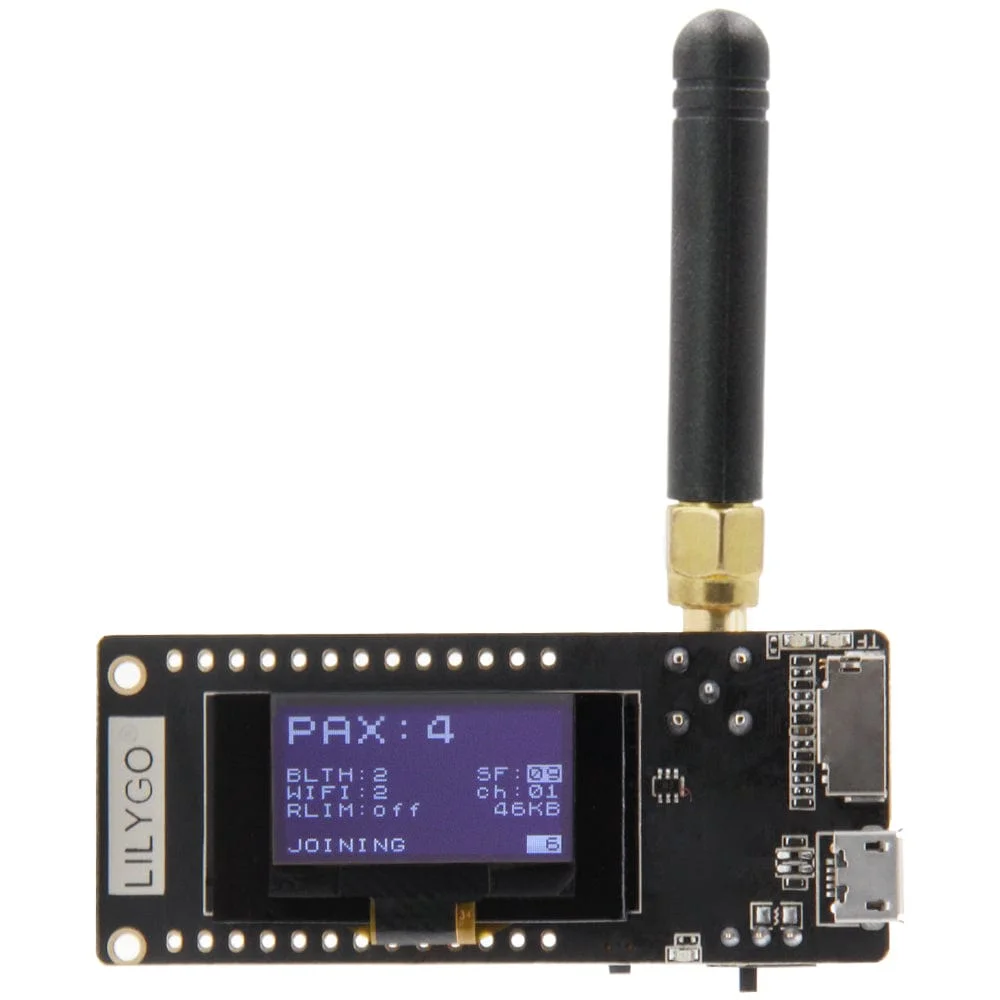

T-LoRa V2.1-1.6 (SX1278)
LILYGO · Dev-board
Price: $18.56[2]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [2] |
| LoRa chip | SX1278 [2] |
| Processor | ESP32 [1] |
| Radio power | 25 mW (14 dBm) [6] |
| Frequency bands | 433 MHz [2] |
| GPS | Not supported [1] |
| Display type | OLED [1] |
| Display size | 0.96 in [1] |
| Display details | 0.96-inch 128 × 64 OLED [1] |
| Input | None [7] |
| Battery | No built-in battery [1] |
| Dedicated solar input | No [1] |
| Antenna | External [1] Connector: Unknown |
| IP rating | Unknown |
| Dimensions | 66 × 36 × 15 mm [6] |
| Weight | Unknown |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Community [3] | Details
Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher |
| MeshCore | Unsupported | — |
| UMSH | Unsupported [5] | — |
Where to buy
| Vendor / configuration | Price | Based in | Ships from |
|---|---|---|---|
| LILYGO | |||
| Paxcounter / Disaster Radio / MySondy GO / LILYGO · 433 / 868 / 915 / 923 MHz | $15.60 Observed 2026-10-19 | 🇨🇳 | 🇨🇳🇺🇸🇨🇦🇪🇺 |
Notes
The 433 MHz H725-02 uses SX1278; the separately tracked higher-band board uses SX1276.[2]
LILYGO publishes a 14 dBm rating for the LoRa32 V2.1.6/T3 V1.6.1 board’s SX1276 and SX1278 radio options.[6]
Sources
- LILYGO T3 LoRa32 V1.6.1 hardware guide
- LILYGO LoRa32 V1.6.1 listing
- Meshtastic community-supported LILYGO LoRa board directory
- MeshCore official flasher catalog
- UMSH hardware support list
- LILYGO LoRa32 product specifications
- LILYGO T3 V1.6.1 schematic
Last updated 2026-10-20
