T-LoRa V2.1-1.6

LILYGO · Dev-board

Compare with other devices

Price: $17.80[2]

Specifications

SpecificationValue
Product statusActive [2]
LoRa chipSX1276 [1]
ProcessorESP32 [1]
Radio power25 mW (14 dBm) [6]
Frequency bands868 MHz, 915 MHz, 923 MHz [1]
GPSNot supported [1]
Display typeOLED [1]
Display size0.96 in [1]
Display details0.96-inch 128 × 64 OLED [1]
InputNone [8]
BatteryNo built-in battery [1]
Dedicated solar inputNo [1]
AntennaExternal [1]
Connector: SMA [1]
IP ratingUnknown
Dimensions66 × 36 × 15 mm [6]
WeightUnknown

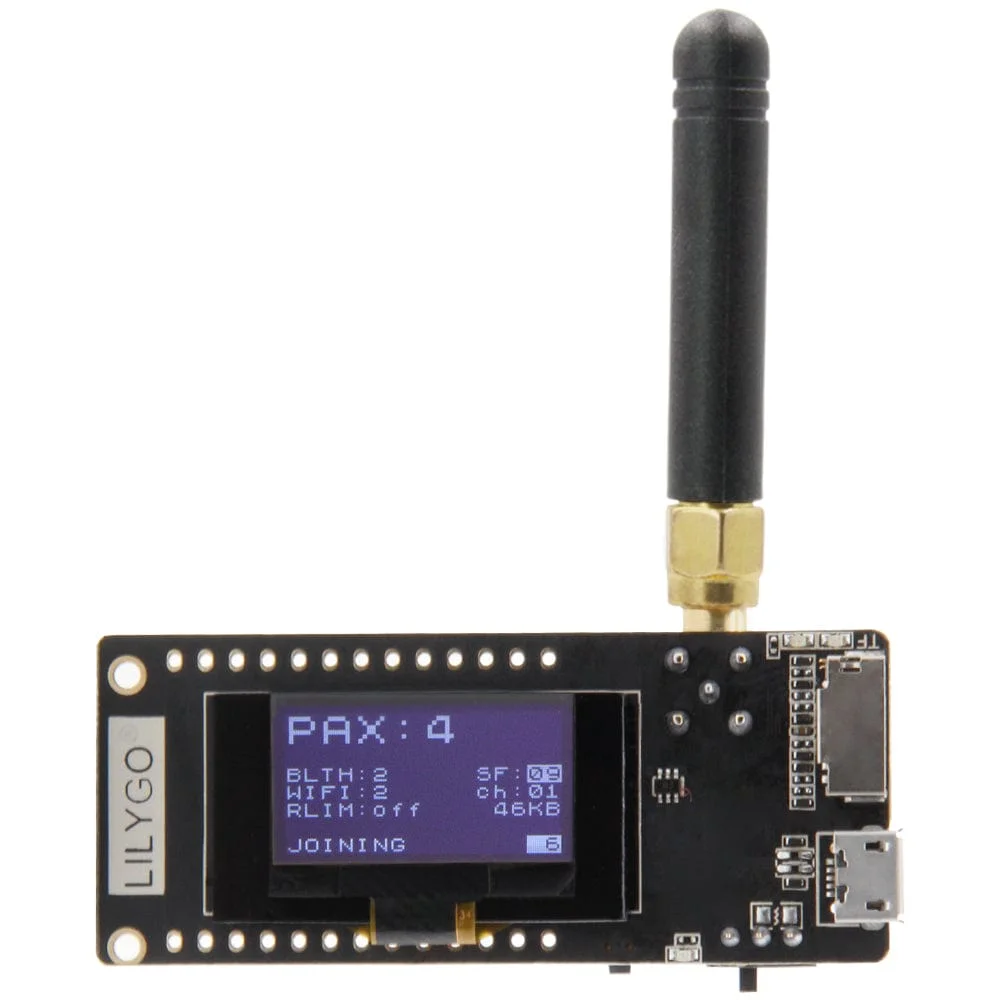

T-LoRa V2.1-1.6 product photo
Image: LILYGO

Firmware support

FirmwareSupportDetails
MeshtasticCommunity [3]
Details
Build target(s)
tlora-v2-1-1_6
Minimum version
0.8.1-fixed

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [4]
Details
Build target(s)
LilyGo_TLora_V2_1_1_6_repeater, LilyGo_TLora_V2_1_1_6_terminal_chat, LilyGo_TLora_V2_1_1_6_companion_radio_usb, LilyGo_TLora_V2_1_1_6_companion_radio_ble, LilyGo_TLora_V2_1_1_6_room_server, LilyGo_TLora_V2_1_1_6_companion_radio_wifi, LilyGo_TLora_V2_1_1_6_repeater_bridge_rs232, LilyGo_TLora_V2_1_1_6_repeater_bridge_espnow, LilyGo_TLora_V2_1_1_6_kiss_modem
Roles
  • Companion (Bluetooth): LilyGo_TLora_V2_1_1_6_companion_radio_ble
  • Companion (USB): LilyGo_TLora_V2_1_1_6_companion_radio_usb
  • Companion (Wi-Fi): LilyGo_TLora_V2_1_1_6_companion_radio_wifi
  • Repeater: LilyGo_TLora_V2_1_1_6_repeater
  • Room server: LilyGo_TLora_V2_1_1_6_room_server
Minimum version
1.0.0d

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [5]—

Where to buy

Vendor / configurationPriceBased inShips from
LILYGO
Paxcounter / Disaster Radio / MySondy GO / LILYGO · 433 / 868 / 915 / 923 MHzFrom $17.80
Observed 2026-10-19
🇨🇳🇨🇳🇺🇸🇨🇦🇪🇺
Rokland
915 MHz$26.97
Observed 2026-10-19
🇺🇸🇺🇸

Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.

Notes

The standard 868/915/923 MHz configuration uses SX1276. The separately tracked 433 MHz H725-02 uses SX1278; TCXO-labelled boards are a separate hardware configuration.[1][2]

LILYGO publishes a 14 dBm rating for the LoRa32 V2.1.6/T3 V1.6.1 board’s SX1276 and SX1278 radio options.[6]

Sources

  1. LILYGO T3 LoRa32 V1.6.1 hardware guide
  2. LILYGO LoRa32 V1.6.1 listing
  3. Meshtastic community-supported LILYGO LoRa board directory
  4. MeshCore official flasher catalog
  5. UMSH hardware support list
  6. LILYGO LoRa32 product specifications
  7. Rokland LILYGO® TTGO LoRa32 V2.1_1.6 Version 915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA Q211 listing
  8. LILYGO T3 V1.6.1 schematic
