T-ETH Elite + SX1262 LoRa Shield

LILYGO · Dev-board

Compare with other devices

Price: $41.38[3]

Specifications

SpecificationValue
Product statusActive [3]
LoRa chipSX1262 [1]
ProcessorESP32-S3 [1]
Radio powerUnknown
Frequency bands433 MHz, 868 MHz, 915 MHz [1]
GPSUnknown
Display typeNone [2]
Display sizeNone
Display detailsNone [2]
InputButtons [1]
BatteryNo built-in battery [1]
Dedicated solar inputNo [1]
AntennaExternal [1]
Connector: I-PEX / u.FL [1]
IP ratingUnknown
DimensionsUnknown
WeightUnknown

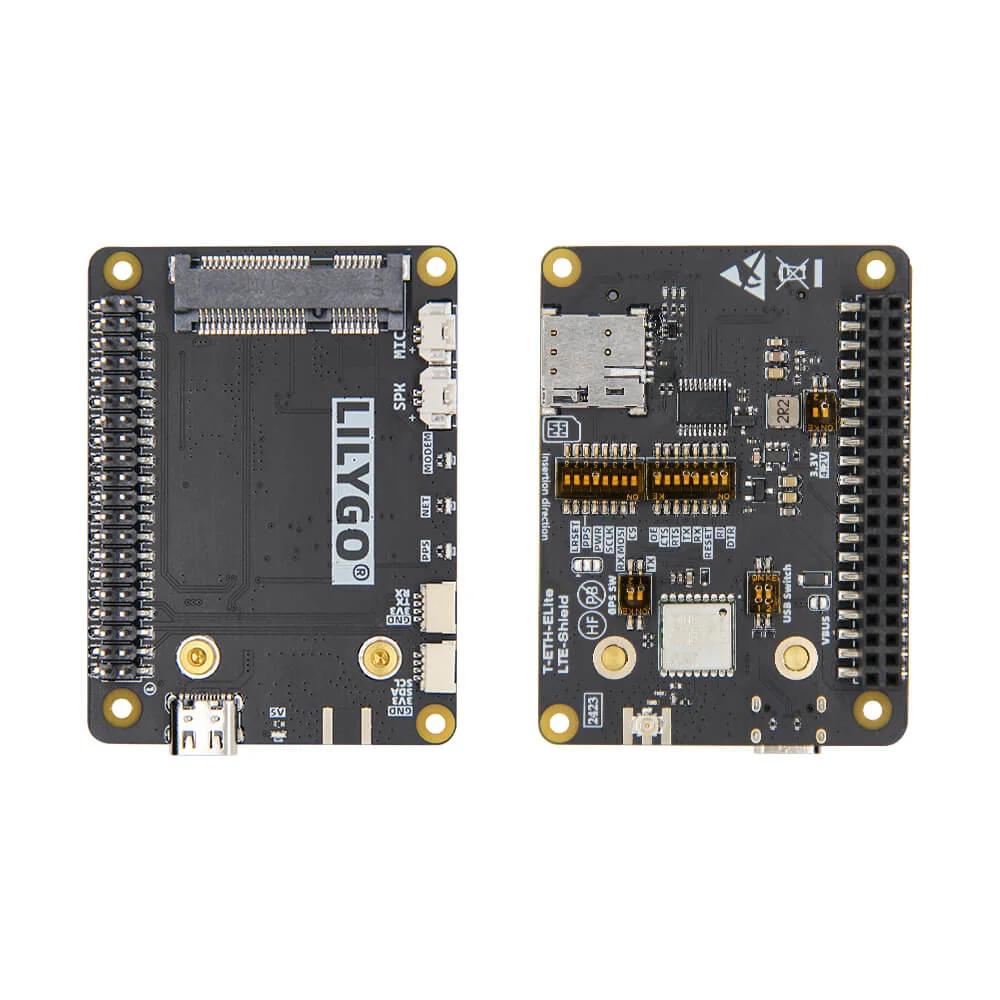

T-ETH Elite + SX1262 LoRa Shield product photo
Image: LILYGO

Firmware support

FirmwareSupportDetails
MeshtasticCommunity [4]
Details
Build target(s)
t-eth-elite
Minimum version
2.6.2.31c0e8f

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [6]
Details
Build target(s)
LilyGo_TETH_Elite_sx1262_repeater, LilyGo_TETH_Elite_sx1262_room_server, LilyGo_TETH_Elite_sx1262_companion_radio_usb, LilyGo_TETH_Elite_sx1262_companion_radio_ble, LilyGo_TETH_Elite_sx1262_kiss_modem
Roles
  • Companion (Bluetooth): LilyGo_TETH_Elite_sx1262_companion_radio_ble
  • Companion (USB): LilyGo_TETH_Elite_sx1262_companion_radio_usb
  • Repeater: LilyGo_TETH_Elite_sx1262_repeater
  • Room server: LilyGo_TETH_Elite_sx1262_room_server
Minimum version
1.16.0

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [7]—

Where to buy

Vendor / configurationPriceBased inShips from
LILYGO
433 / 868 / 915 MHz$41.38
Observed 2026-10-19
🇨🇳🇨🇳🇺🇸🇨🇦🇪🇺

Notes

The LoRa shield is a separately sold add-on for the H744 Ethernet/PoE base board; the listed reference price uses the combined 915 MHz configuration. The board requires external host power and networking.

[1] [2] [3]

Sources

  1. LILYGO T-ETH Elite documentation
  2. LILYGO T-ETH LoRa shield documentation
  3. LILYGO T-ETH Elite selected variant data
  4. Meshtastic T-ETH Elite target
  5. MeshCore official flasher catalog
  6. MeshCore companion firmware v1.18.0 release assets
  7. UMSH hardware support list

Last updated 2026-10-20
