T-Echo Card

LILYGO · Card

Compare with other devices

Price: $58.04[2]

Specifications

SpecificationValue
Product statusActive [2]
LoRa chipSX1262 [1]
ProcessornRF52840 [1]
Radio powerUnknown
Frequency bands433 MHz, 868 MHz, 915 MHz, 920 MHz [1]
GPSBuilt in [1]
Display typeOLED [1]
Display size0.42 in [1]
Display details0.42-inch 72 × 40 OLED [1]
InputButtons [9]
BatteryUnknown
Dedicated solar inputBuilt in [1]
AntennaUnknown
IP ratingUnknown
Dimensions90 × 60 × 9.5 mm [1]
WeightUnknown

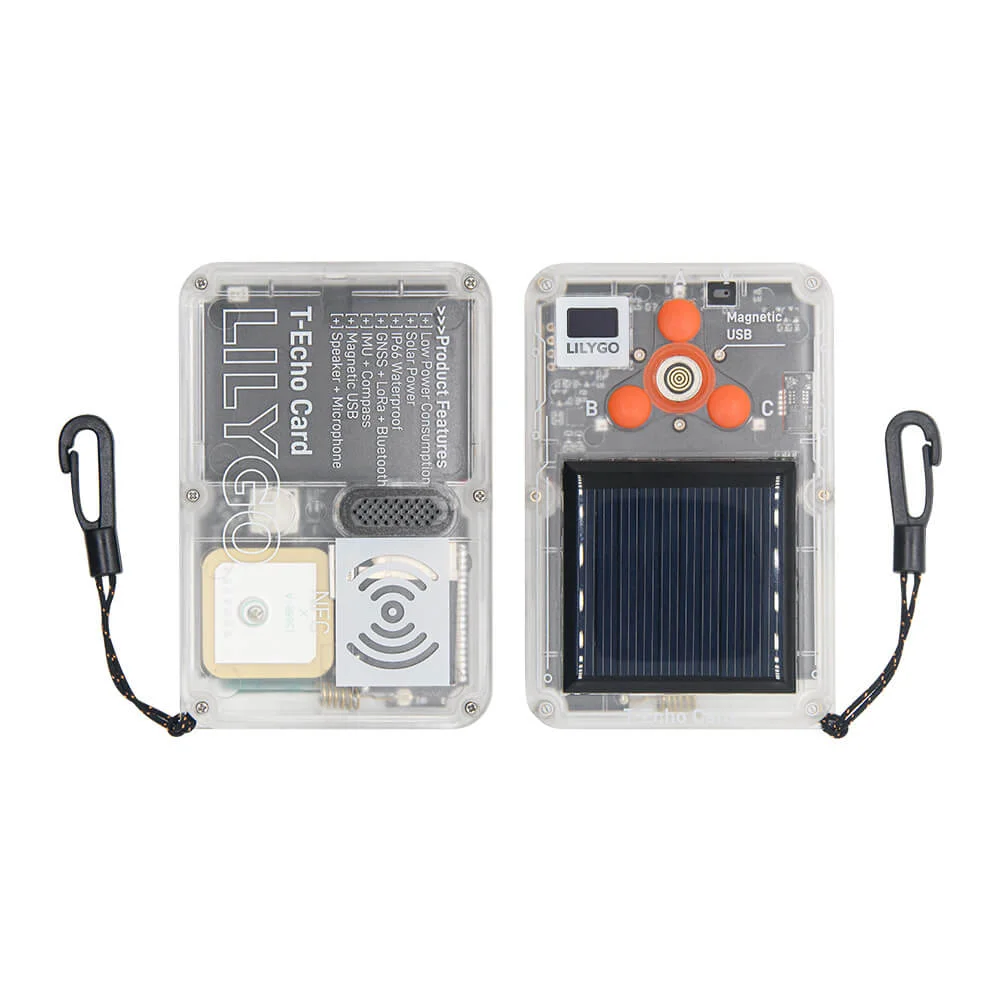

T-Echo Card product photo
Image: LILYGO

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [5]
Details
Build target(s)
t-echo-card
Minimum version
2.7.24.472b14c

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [6]
Details
Build target(s)
LilyGo_T-Echo_Card_companion_radio_ble, LilyGo_T-Echo_Card_companion_radio_usb, LilyGo_T-Echo_Card_repeater, LilyGo_T-Echo_Card_room_server
Roles
  • Companion (Bluetooth): LilyGo_T-Echo_Card_companion_radio_ble
  • Companion (USB): LilyGo_T-Echo_Card_companion_radio_usb
  • Repeater: LilyGo_T-Echo_Card_repeater
  • Room server: LilyGo_T-Echo_Card_room_server
Minimum version
1.16.0

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [7]—

Where to buy

Vendor / configurationPriceBased inShips from
LILYGO
433 / 868 / 915 / 920 MHzFrom $58.04
Observed 2026-10-19
🇨🇳🇨🇳🇺🇸🇨🇦🇪🇺

Notes

Cable-included and cable-free packages are sold; the magnetic USB cable comes only with selected packages.[2]

The repository identifies an AcSiP S62F module, rated at 22 dBm over 865–928 MHz with a 3.3 V supply. A separately offered 433 MHz SKU is outside that documented module range; its fitted module is not identified.[3][4][2]

Sources

  1. LILYGO T-Echo Card product specification
  2. LILYGO T-Echo Card variants
  3. LILYGO T-Echo Card hardware repository
  4. AcSiP S62F module product brief
  5. Meshtastic device hardware catalog
  6. MeshCore official flasher catalog
  7. UMSH hardware support list
  8. Meshtastic firmware exact product target introduction
  9. Meshtastic firmware input controls for T-Echo Card

Last updated 2026-10-20
