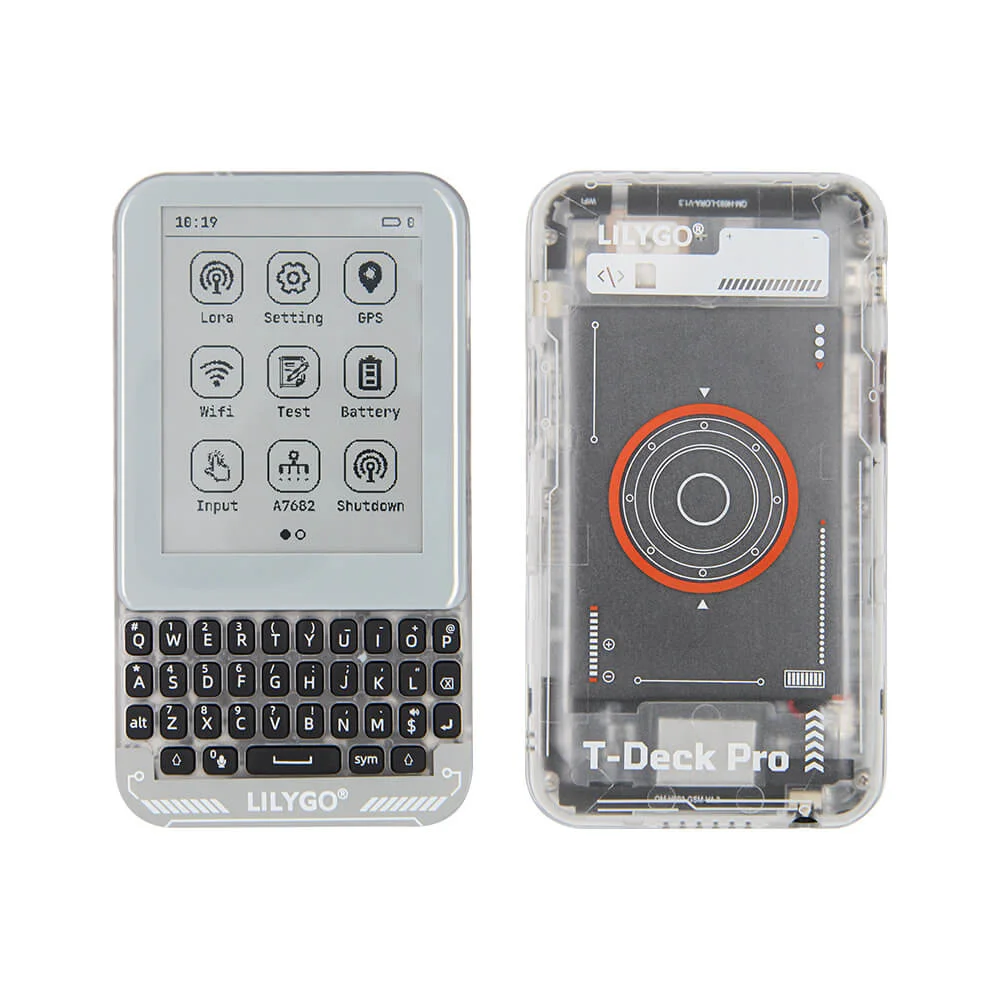

T-Deck Pro
LILYGO · Handheld
Price: $84.96[2]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [2] |
| LoRa chip | SX1262 [1] |
| Processor | ESP32-S3 [1] |
| Radio power | Unknown |
| Frequency bands | 433 MHz, 868 MHz, 915 MHz, 920 MHz [1] |
| GPS | Built in [1] |
| Display type | E-paper [1] |
| Display size | 3.1 in [1] |
| Display details | 3.1-inch 320 × 240 e-paper touchscreen [1] |
| Input | Keyboard, Touchscreen [1] |
| Battery | 1400 mAh [2] |
| Dedicated solar input | No [1] |
| Antenna | Internal / External [2] Connector: Unknown |
| IP rating | Unknown |
| Dimensions | 120 × 66 × 13.5 mm [1] |
| Weight | Unknown |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Official [5] | Details
Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher |
| MeshCore | Supported [4] | Details
Confirm your exact device in the official flasher before choosing a build. MeshCore web flasher |
| UMSH | Unsupported [6] | — |
Where to buy
| Vendor / configuration | Price | Based in | Ships from |
|---|---|---|---|
| LILYGO | |||
| MeshCore / LILYGO · 433 / 868 / 915 / 920 MHz | From $84.96 Observed 2026-10-19 | 🇨🇳 | 🇨🇳🇺🇸🇨🇦🇪🇺 |
| OpenELAB | |||
Global site Meshtastic · 868 MHz | €149.10 Observed 2026-10-19 | Unknown | 🇪🇺🇺🇸🇨🇳 |
US site Meshtastic · 915 MHz | $179.00 Observed 2026-10-19 | Unknown | 🇪🇺🇺🇸🇨🇳 |
| Rokland | |||
| 915 MHz | $109.97 Observed 2026-10-19 | 🇺🇸 | 🇺🇸 |
Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.
Notes
Hardware choices include PCM5102A audio or A7682E cellular versions, internal or external LoRa antennas, and regional radio bands.[2]
LILYGO’s store lists a built-in 1,400 mAh battery; its wiki lists 1,500 mAh. The comparison uses the lower published capacity.[2][1]
Sources
- LILYGO T-Deck Pro documentation
- LILYGO T-Deck Pro current product variants
- Meshtastic device hardware catalog
- MeshCore official flasher catalog
- Meshtastic officially supported LILYGO devices
- UMSH hardware support list
- Meshtastic firmware exact T-Deck Pro target introduction
- Rokland LILYGO® T-Deck Pro A7682E (4G) US 915 Mhz H693-A listing
- OpenELAB LILYGO T-Deck Pro ESP32S3 SX1262 LoRa Meshtastic GPS Wireless Module exact offer
- OpenELAB US store: LILYGO T-Deck Pro ESP32S3 SX1262 LoRa Meshtastic GPS Wireless Module
Last updated 2026-10-20
