WiFi LoRa 32 V2.1 LF

Heltec Automation · Dev-board

Compare with other devices

Price: Unknown

Specifications

SpecificationValue
Product statusDiscontinued (EOL) [2]
LoRa chipSX1278 [5]
ProcessorESP32 [5]
Radio power79 mW (19 dBm) [3]
Frequency bands433 MHz, 470–510 MHz [5]
GPSNot supported [5]
Display typeOLED [3]
Display size0.96 in [3]
Display details0.96-inch OLED [3]
InputButtons [5]
BatteryUnknown
Dedicated solar inputNo [5]
AntennaExternal [5]
Connector: IPEX/U.FL LoRa antenna connector [5]
IP ratingUnknown
Dimensions51 × 25.5 × 10.6 mm [3]
WeightUnknown

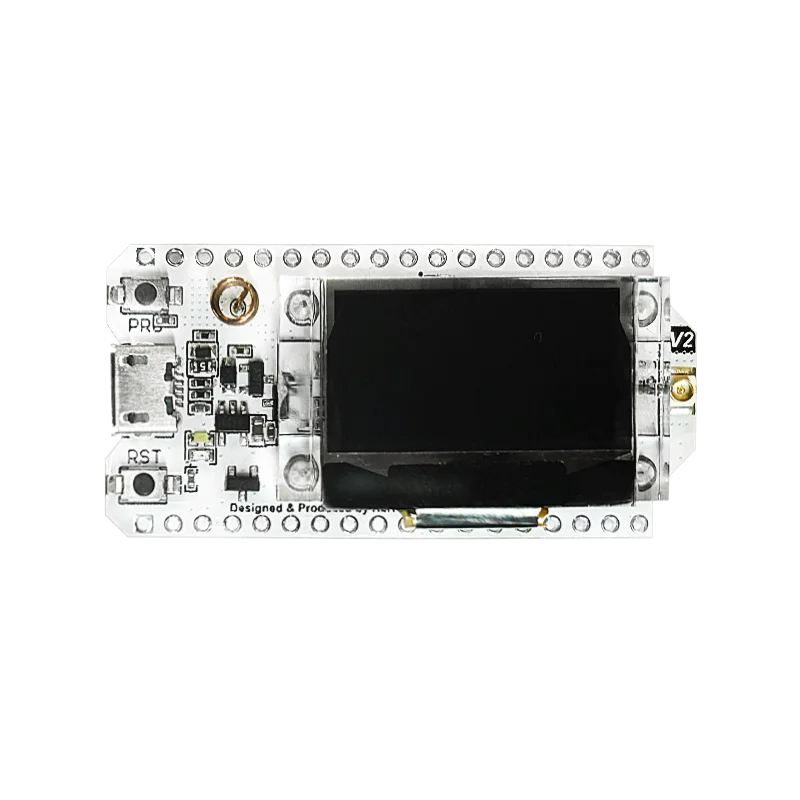

WiFi LoRa 32 V2.1 LF product photo
Image: Heltec Automation

Firmware support

FirmwareSupportDetails
MeshtasticCommunity [4]
Details
Build target(s)
heltec-v2_1
Minimum version
1.2.38.cf4e508

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreUnsupported—
UMSHUnsupported [6]—

Where to buy

No buy links yet.

Notes

Historical WiFi LoRa 32 2.1 LF bare-board configuration using SX1278.[5] The V2 family is being phased out in favor of V3 for new designs.[1]

UMSH firmware builds from source; hardware validation and downloadable releases are pending.[6]

Sources

  1. Heltec hardware update logs
  2. Heltec WiFi LoRa 32 V2 phase-out product page
  3. Heltec WiFi LoRa 32 V2 manual
  4. Meshtastic community-supported device directory
  5. Heltec WiFi LoRa 32 V2.1 433 MHz, 470–510 MHz schematic
  6. UMSH hardware support list
  7. Heltec WiFi LoRa 32 V2.1 hardware update log
