Wireless Tracker V2

Heltec Automation · Dev-board

Compare with other devices

Price: $30.90[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [2]
ProcessorESP32-S3 [2]
Radio power631 mW (28 dBm) [2]
Frequency bands863–870 MHz, 902–928 MHz [1]
GPSBuilt in [2]
Display typeLCD [2]
Display size0.96 in [2]
Display details0.96-inch RGB TFT, 160×80 [2]
InputButtons [1]
BatteryNo built-in battery [1]
Dedicated solar inputBuilt in [2]
AntennaExternal [2]
Connector: IPEX 1.0 LoRa and GNSS antenna interfaces [3]
IP ratingUnknown
DimensionsUnknown
Weight55 g [1]

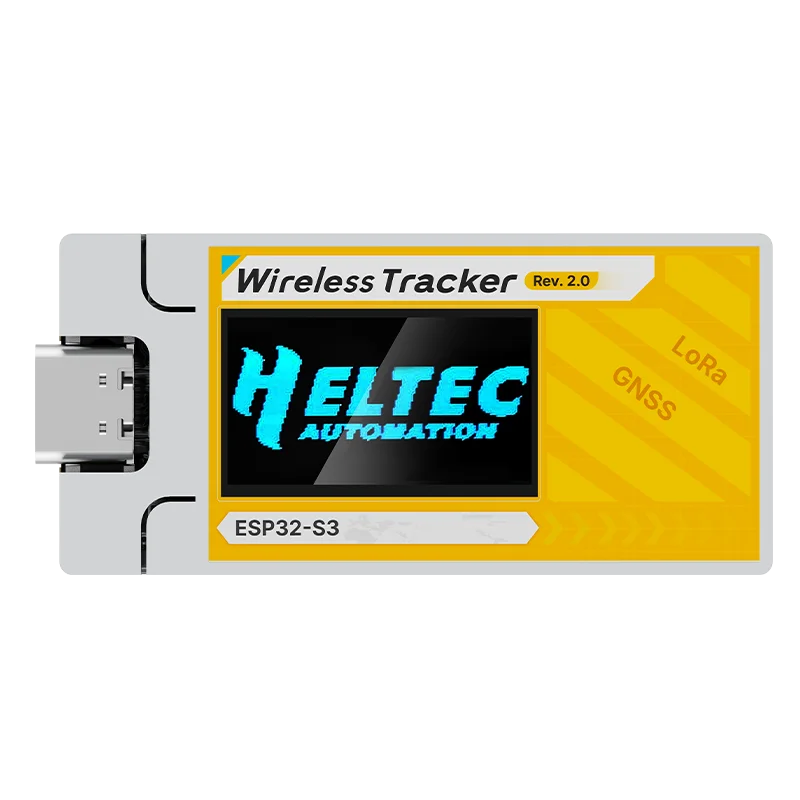

Wireless Tracker V2 product photo
Image: Heltec Automation

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [5]
Details
Build target(s)
heltec-wireless-tracker-v2
Minimum version
2.7.13.597fa0b

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [8]
Details
Build target(s)
heltec_tracker_v2_companion_radio_ble, heltec_tracker_v2_companion_radio_usb, heltec_tracker_v2_companion_radio_wifi, heltec_tracker_v2_repeater, heltec_tracker_v2_room_server
Roles
  • Companion (Bluetooth): heltec_tracker_v2_companion_radio_ble
  • Companion (USB): heltec_tracker_v2_companion_radio_usb
  • Companion (Wi-Fi): heltec_tracker_v2_companion_radio_wifi
  • Repeater: heltec_tracker_v2_repeater
  • Room server: heltec_tracker_v2_room_server
Minimum version
1.10.0

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [9]—

Where to buy

Vendor / configurationPriceBased inShips from
Heltec Automation
863–870 / 902–928 MHz$30.90
Observed 2026-10-19
Unknown🇨🇳🇪🇺🇺🇸
Muzi.Works
868 / 915 MHz$36.90
Observed 2026-10-19
🇺🇸🇺🇸
OpenELAB
Global site
863–928 MHz		€36.70
Observed 2026-10-19
Unknown🇪🇺🇺🇸🇨🇳
US site
863–928 MHz		$40.89
Observed 2026-10-19
Unknown🇪🇺🇺🇸🇨🇳
Rokland
900 MHz$36.97
Observed 2026-10-19
🇺🇸🇺🇸

Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.

Notes

Amplified V2 board rated 28 ±1 dBm, with UC6580 GNSS and a dedicated solar-panel interface. Heltec identifies V2.3.1 as the current revision; radio output, solar input, and battery interfaces vary from V1.x.

[1] [2] [4] [6]

Sources

  1. Heltec Wireless Tracker V2 product page
  2. Heltec Wireless Tracker V2 datasheet Rev. 1.1
  3. Heltec Wireless Tracker V2.3 schematic
  4. Heltec Wireless Tracker V2 hardware update log
  5. Meshtastic official hardware device directory
  6. Meshtastic Wireless Tracker V2 target
  7. MeshCore Wireless Tracker V2 board configuration
  8. MeshCore official flasher device catalog
  9. UMSH hardware support list
  10. Meshtastic firmware commit adding the Heltec Wireless Tracker V2 board
  11. Muzi.Works Heltec Wireless Tracker V2 – GPS Built-in product listing
  12. Rokland Heltec Wireless Tracker V2 ESP32-S3 +GPS + LoRa Node Meshtastic MeshCore Compatible listing
  13. OpenELAB US store: HELTEC Wireless Tracker V2 ESP32-S3 GNSS GPS LoRa Node
  14. OpenELAB exact product variant price

Last updated 2026-10-20
