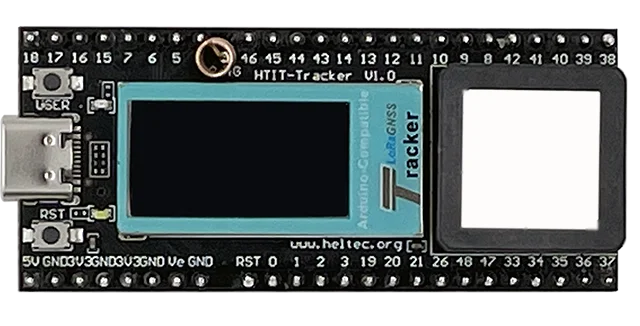

Wireless Tracker V1.0
Heltec Automation · Dev-board
Price: Unknown
Specifications
| Specification | Value |
|---|---|
| Product status | Discontinued (EOL) [7] |
| LoRa chip | SX1262 [2] |
| Processor | ESP32-S3 [1] |
| Radio power | 126 mW (21 dBm) [1] |
| Frequency bands | 470–510 MHz, 863–928 MHz [1] |
| GPS | Built in [1] |
| Display type | LCD [1] |
| Display size | 0.96 in [1] |
| Display details | 0.96-inch RGB TFT, 160×80 [1] |
| Input | Buttons [1] |
| Battery | No built-in battery [5] |
| Dedicated solar input | No [2] |
| Antenna | External [1] Connector: IPEX/U.FL LoRa antenna interface [1] |
| IP rating | Unknown |
| Dimensions | 65.48 × 28.06 × 13.52 mm [1] |
| Weight | Unknown |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Official [4] | Details
Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher |
| MeshCore | Unsupported | — |
| UMSH | Unsupported [6] | — |
Where to buy
No buy links yet.
Notes
Original Tracker V1.0 development board; its GNSS power-control pins differ from V1.1.[3] Treated as discontinued: V1.1 replaced V1.0 and the current Heltec listing does not offer V1.0 separately.[7]
Sources
- Heltec Wireless Tracker manual Rev. 1.1
- Heltec Wireless Tracker V1.0 schematic
- Heltec hardware update logs
- Meshtastic official hardware device directory
- Heltec Wireless Tracker listing archived 2023-09-28
- UMSH hardware support list
- Heltec Wireless Tracker V1.0 hardware update log
