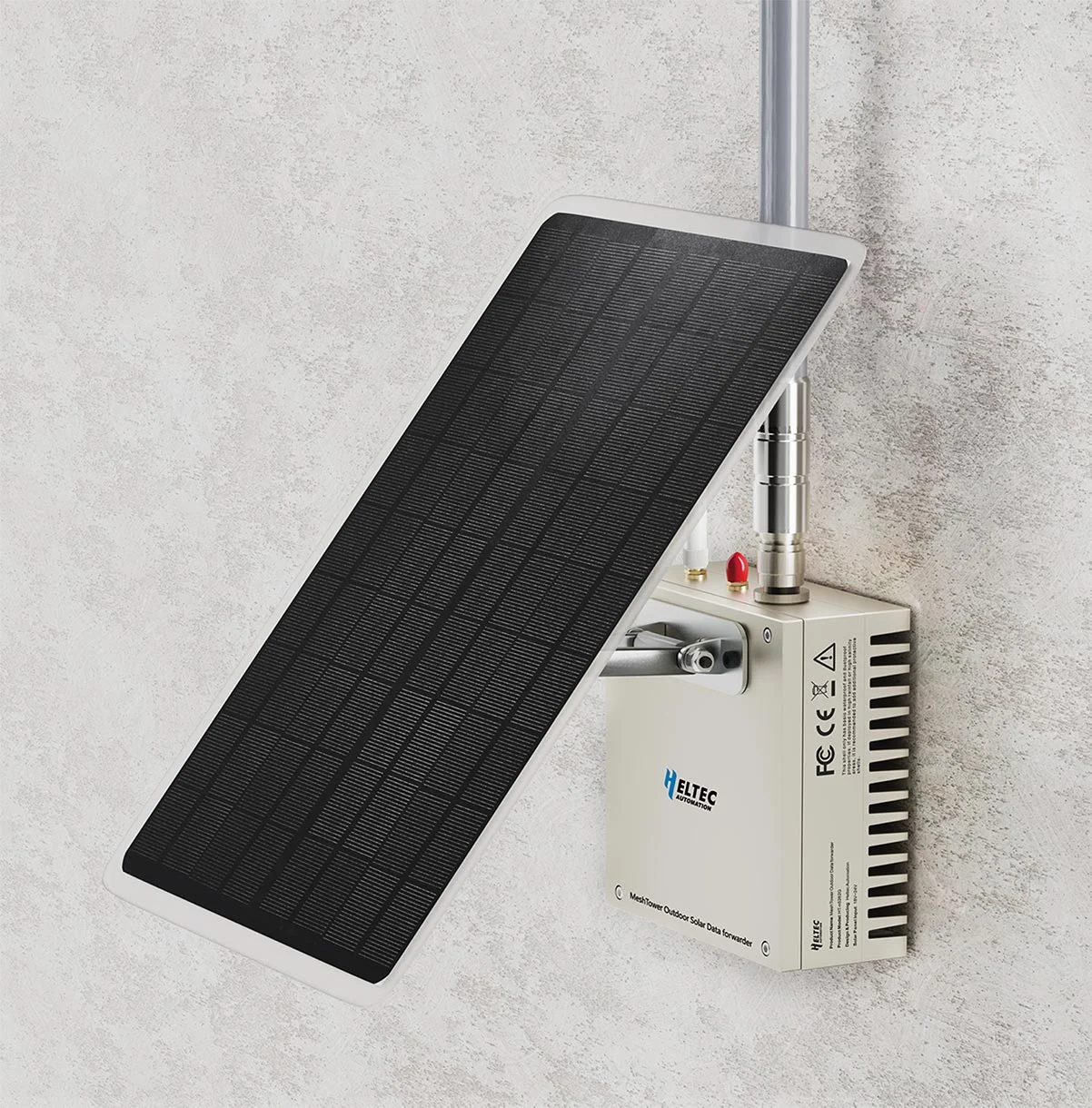

MeshTower V2H
Heltec Automation · Fixed node
Price: $129.00[5]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [5] |
| LoRa chip | SX1262 [2] |
| Processor | nRF52840 [2] |
| Radio power | 631 mW (28 dBm) [3] |
| Frequency bands | 863–870 MHz, 902–928 MHz [5] |
| GPS | Built in [5] |
| Display type | None [2] |
| Display size | None |
| Display details | No display [2] |
| Input | Buttons [10] |
| Battery | Unknown |
| Dedicated solar input | Built in [2] |
| Antenna | External [1] Connector: External N-type LoRa; SMA female 2.4 GHz/GNSS connectors [2] |
| IP rating | IP66 [2] |
| Dimensions | 125 × 125 × 52 mm [2] |
| Weight | 1500 g [2] |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Official [6] | Details
Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher |
| MeshCore | Supported [4] | Details
Confirm your exact device in the official flasher before choosing a build. MeshCore web flasher |
| UMSH | Unsupported [7] | — |
Where to buy
| Vendor / configuration | Price | Based in | Ships from |
|---|---|---|---|
| Heltec Automation | |||
| 863–870 / 902–928 MHz | $129.00 Observed 2026-10-19 | Unknown | 🇨🇳🇪🇺🇺🇸 |
Notes
Compared with MeshTower V1, MeshTower V2H adds:
- A redesigned BMS baseboard replacing the MeshSolar mainboard, allowing restart/recovery without opening the enclosure.[8][9]
- High-temperature lithium batteries.[9]
- A choice of GPS-equipped or GPS-free configurations.[9]
- Higher rated radio output: 28 ±1 dBm, compared with V1’s 21 ±1 dBm.[8][3]
The selected 902–928 MHz variant includes GNSS. Heltec’s store labels the high-power option 30 dBm; its current V2H guide rates it at 28 ±1 dBm, so the comparison uses 28 dBm.[5][3]
Like V1, the unit has a 10 W solar panel and three 2,800 mAh cells.[8][3] Solar/DC input is 18–24 V, with USB-C PD3.0 (20 V) also supported.[3][2]
