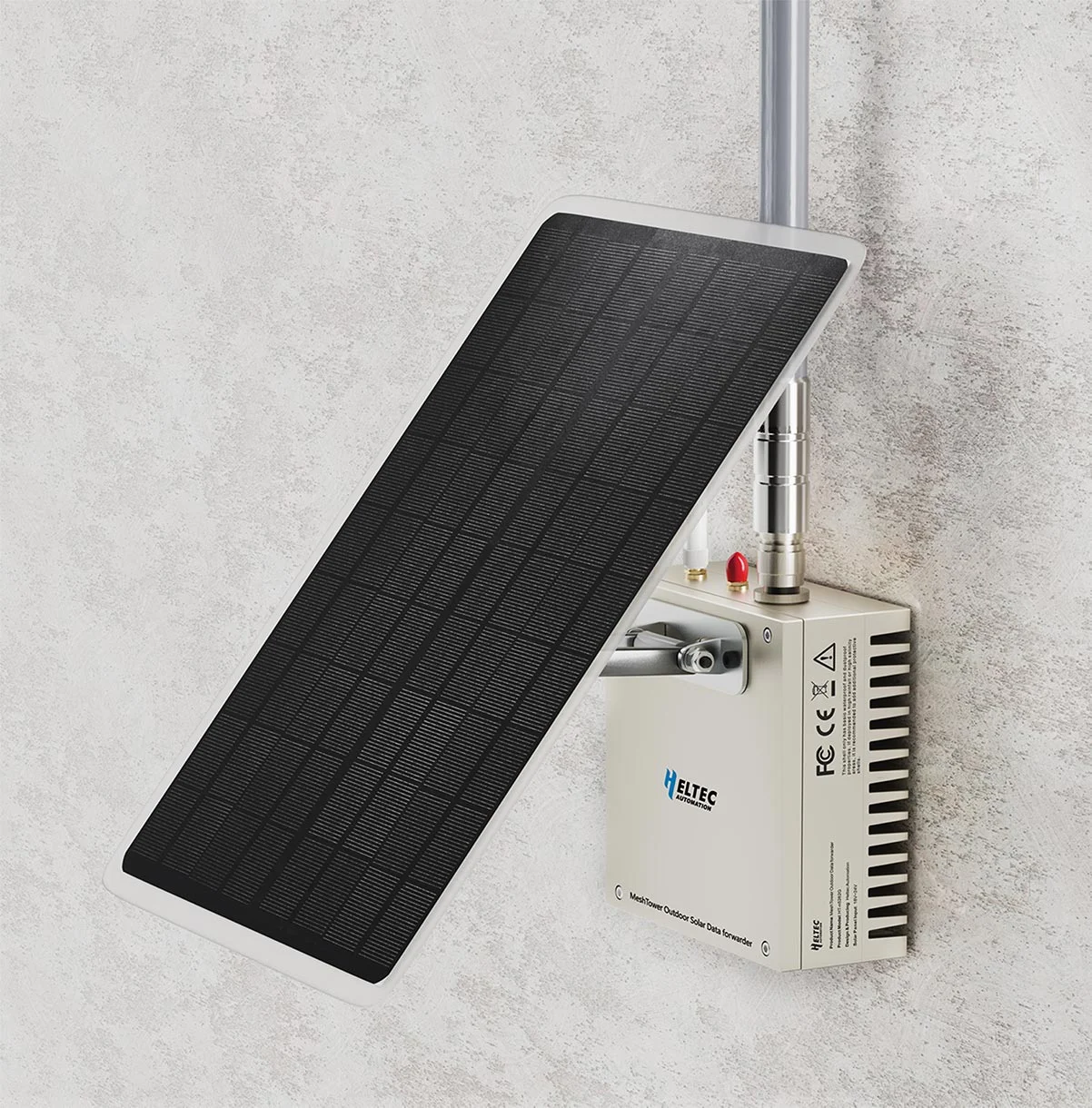

MeshTower V2
Heltec Automation · Fixed node
Price: $109.00[4]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [4] |
| LoRa chip | SX1262 [2] |
| Processor | nRF52840 [2] |
| Radio power | 126 mW (21 dBm) [3] |
| Frequency bands | 863–870 MHz, 902–928 MHz [4] |
| GPS | Built in [4] |
| Display type | None [2] |
| Display size | None |
| Display details | No display [2] |
| Input | Buttons [9] |
| Battery | Unknown |
| Dedicated solar input | Built in [2] |
| Antenna | External [1] Connector: External N-type LoRa; SMA female 2.4 GHz/GNSS connectors [2] |
| IP rating | IP66 [2] |
| Dimensions | 125 × 125 × 52 mm [2] |
| Weight | 1500 g [2] |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Official [5] | Details
Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher |
| MeshCore | Unsupported | — |
| UMSH | Unsupported [6] | — |
Where to buy
| Vendor / configuration | Price | Based in | Ships from |
|---|---|---|---|
| Heltec Automation | |||
| 863–870 / 902–928 MHz | $109.00 Observed 2026-10-19 | Unknown | 🇨🇳🇪🇺🇺🇸 |
Notes
Compared with MeshTower V1, MeshTower V2 adds:
- A redesigned BMS baseboard replacing the MeshSolar mainboard, allowing restart/recovery without opening the enclosure.[7][8]
- High-temperature lithium batteries.[8]
- A choice of GPS-equipped or GPS-free configurations.[8]
The standard version retains V1’s 21 ±1 dBm rated output.[7][3]
The selected 902–928 MHz option includes GNSS. Although the store labels it 22 dBm, Heltec’s current V2 guide rates the standard version at 21 ±1 dBm; this record uses nominal 21 dBm.[4][3]
Like V1, the unit has a 10 W solar panel and three 2,800 mAh cells.[7][3] Solar/DC input is 18–24 V, with USB-C PD3.0 (20 V) also supported.[3][2]
Resources
- MeshTower V2 launch and field-test announcement — Heltec AutomationRedditPublication date unknown
- MeshTower V2 product overview and usage guide — Heltec AutomationUpstream documentationPublication date unknown
Sources
- Heltec MeshTower V2 product and variant page
- Heltec MeshTower V2 datasheet
- Heltec MeshTower V2 user documentation
- Heltec MeshTower V2 exact 22 dBm / 902–928 MHz / GNSS variant
- Meshtastic device hardware API
- UMSH hardware support list
- Heltec MeshTower V1 product page
- Heltec Automation MeshTower V2 launch and field-test announcement
- Heltec MeshTower V2 Meshtastic MCU_USER button mapping
Last updated 2026-10-20
