Vision Master T190

Heltec Automation · Dev-board

Compare with other devices

Price: $19.00[8]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [2]
ProcessorESP32-S3 [2]
Radio power126 mW (21 dBm) [2]
Frequency bands433 MHz, 470–510 MHz, 863–870 MHz, 902–928 MHz [1]
GPSNot supported [5]
Display typeLCD [2]
Display size1.9 in [2]
Display details1.90-inch TFT, 170×320 [2]
InputButtons [12]
BatteryNo built-in battery [1]
Dedicated solar inputNo [2]
AntennaExternal [2]
Connector: IPEX 1.0 LoRa antenna interface [2]
IP ratingUnknown
Dimensions60 × 25.4 × 10.19 mm [2]
Weight35 g [1]

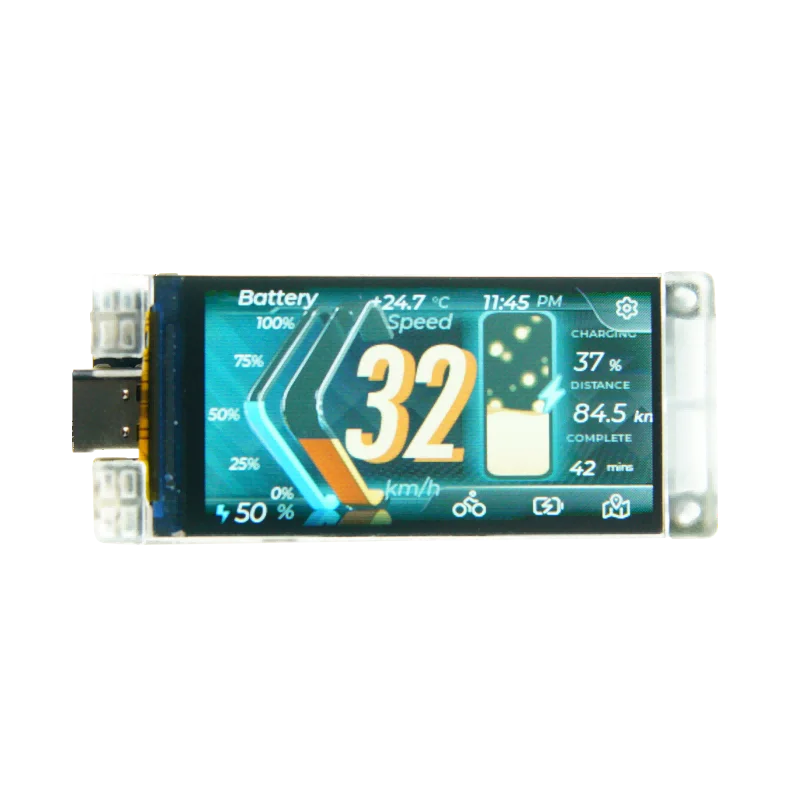

Vision Master T190 product photo
Image: Heltec Automation

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [4]
Details
Build target(s)
heltec-vision-master-t190
Minimum version
2.4.0.46d7b82

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [7]
Details
Build target(s)
Heltec_T190_companion_radio_ble_, Heltec_T190_companion_radio_usb_, Heltec_T190_repeater_, Heltec_T190_room_server_
Roles
  • Companion (Bluetooth): Heltec_T190_companion_radio_ble_
  • Companion (USB): Heltec_T190_companion_radio_usb_
  • Repeater: Heltec_T190_repeater_
  • Room server: Heltec_T190_room_server_
Minimum version
1.9.0

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [9]—

Where to buy

Vendor / configurationPriceBased inShips from
Heltec Automation
Meshtastic / NerdMiner · 433 / 470–510 / 863–870 / 902–928 MHz$20.00
Observed 2026-10-19
Unknown🇨🇳🇪🇺🇺🇸
OpenELAB
US site
868 MHz		$26.89
Observed 2026-10-19
Unknown🇪🇺🇺🇸🇨🇳

Notes

The SX1262/HT-RA62 LoRa module is a product option; the no-radio version is not mesh-capable. GNSS is available as a separate QWIIC/QuickLink add-on. The current T190 listing prices LoRa-enabled hardware at $19.00 without preloaded firmware; the Meshtastic-preloaded option is $20.00.
