Mesh Node T096

Heltec Automation · Dev-board

Compare with other devices

Price: $33.90[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [2]
ProcessornRF52840 [2]
Radio power631 mW (28 dBm) [2]
Frequency bands863–928 MHz [2]
GPSBuilt in [2]
Display typeLCD [2]
Display size0.96 in [2]
Display details0.96-inch ST7735S TFT LCD [2]
InputButtons [13]
BatteryNo built-in battery [2]
Dedicated solar inputBuilt in [2]
AntennaInternal / External [2]
Connector: IPEX 1.0 LoRa; optional IPEX 1.0 GNSS antenna path [2]
IP ratingUnknown
Dimensions52 × 25.4 × 10.26 mm [2]
WeightUnknown

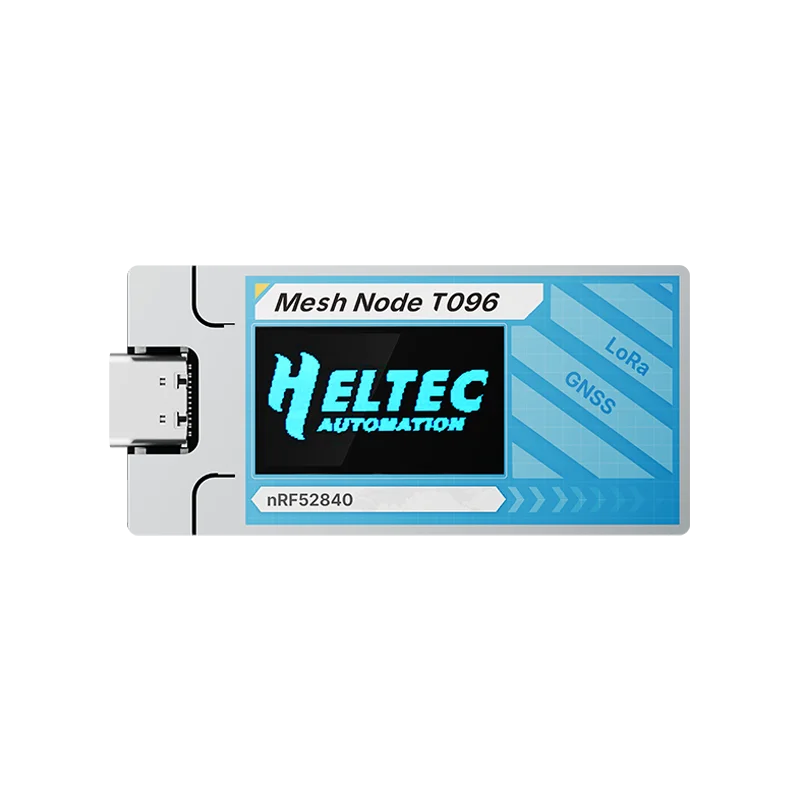

Mesh Node T096 product photo
Image: Heltec Automation

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [3]
Details
Build target(s)
heltec-mesh-node-t096
Minimum version
2.7.21.1370b23

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [5]
Details
Build target(s)
Heltec_t096_companion_radio_ble, Heltec_t096_companion_radio_usb, Heltec_t096_repeater, Heltec_t096_room_server
Roles
  • Companion (Bluetooth): Heltec_t096_companion_radio_ble
  • Companion (USB): Heltec_t096_companion_radio_usb
  • Repeater: Heltec_t096_repeater
  • Room server: Heltec_t096_room_server
Minimum version
1.15.0

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [7]—

Where to buy

Vendor / configurationPriceBased inShips from
Heltec Automation
863–870 / 902–928 MHz$33.90
Observed 2026-10-19
Unknown🇨🇳🇪🇺🇺🇸
Muzi.Works
868 / 915 MHz$38.90
Observed 2026-10-19
🇺🇸🇺🇸
OpenELAB
Global site
863–870 MHz		€40.79
Observed 2026-10-19
Unknown🇪🇺🇺🇸🇨🇳
US site
863–870 MHz		$49.99
Observed 2026-10-19
Unknown🇪🇺🇺🇸🇨🇳
Rokland
View listing$38.97
Observed 2026-10-19
🇺🇸🇺🇸

Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.

Notes

Bare development board with an nRF52840, UC6580 GNSS, TFT, USB-C, battery connector and dedicated solar-panel connector. Heltec rates its SX1262 power amplifier at 28 ±1 dBm. HF regional selections are within 863–928 MHz. GNSS normally uses an LDS antenna; using the external GNSS IPEX path requires moving a resistor.

[1] [2]

Sources

  1. Heltec Mesh Node T096 product page
  2. Heltec Mesh Node T096 datasheet
  3. Meshtastic official supported-device directory
  4. Meshtastic T096 device documentation
  5. MeshCore official flasher catalog
  6. MeshCore Heltec T096 board configuration
  7. UMSH hardware support list
  8. Meshtastic firmware commit adding the exact Heltec Mesh Node T096 board
  9. Muzi.Works Heltec Mesh Node T096 – GPS Built-in product listing
  10. Rokland Heltec Mesh Node T096, nRF52840 +GPS+LoRa Node, Meshtastic, MeshCore and LoRaWAN listing
  11. OpenELAB HELTEC Mesh Node T096 nRF52840 GPS Meshtastic MeshCore LoRaWAN exact offer
  12. OpenELAB US store: HELTEC Mesh Node T096 nRF52840 GPS Meshtastic MeshCore LoRaWAN
  13. Heltec F&T button table listing Mesh Node T096 USER navigation button

Last updated 2026-10-20
