RD-GB01 Kit (RC52-62)

Heltec Automation · Tracker

Compare with other devices

Price: $27.90[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [3]
ProcessornRF52840 [3]
Radio power126 mW (21 dBm) [2]
Frequency bands863–870 MHz, 902–928 MHz [2]
GPSBuilt in [1]
Display typeNone [1]
Display sizeNone
Display detailsNone [1]
InputRotary encoder [4]
BatteryUnknown
Dedicated solar inputUnknown
AntennaExternal [1]
Connector: Unknown
IP ratingUnknown
Dimensions30 × 53 × 38 mm [1]
Weight80 g [1]

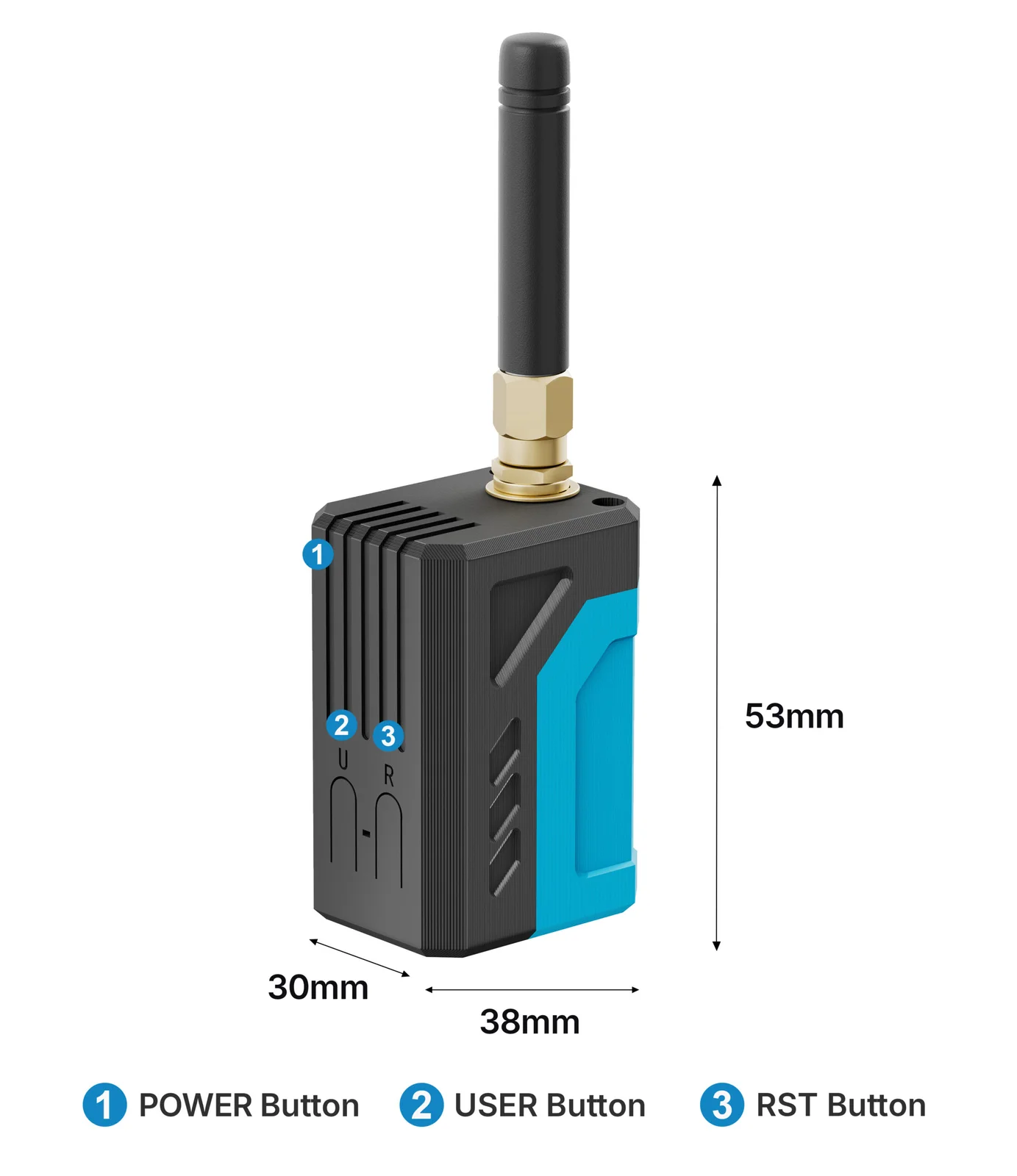

Heltec RadioCore GB01 node in its black and blue enclosure with external antenna; the selected RadioCore is inside the case.
Image: Heltec Automation

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [7]
Details
Build target(s)
heltec-rc52
Minimum version
2.8.0.7239fe8

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreUnsupported—
UMSHUnsupported—

Where to buy

Vendor / configurationPriceBased inShips from
Heltec Automation
863–870 / 902–928 MHz$27.90
Observed 2026-10-19
Unknown🇨🇳🇪🇺🇺🇸

Notes

Includes the RC52-62 RadioCore, RD-GB01 baseboard, LoRa whip antenna and a soldered 18350 Li-ion battery. The battery is not user-replaceable.[1][4]

Sources

  1. Heltec RD-GB01-KIT exact product page, specifications and current bundle offer
  2. Heltec RD-GB01-KIT exact current core, regional-band and bundle variant catalog
  3. Heltec RC52-62 installed RadioCore specifications
  4. Heltec RD-GB01 expansion enclosure documentation and legacy spec table
  5. Heltec RD-GB01 Rev 1.0 baseboard schematic and exact RadioCore pin mapping
  6. Meshtastic v2.8.0 RC52-62 hardware pin mapping
  7. Meshtastic v2.8.0 RC52-62 exact target and official support level

Last updated 2026-10-20
