RD-GA01 Kit (RC52-62)

Heltec Automation · Tracker

Compare with other devices

Price: From $37.90[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [3]
ProcessornRF52840 [3]
Radio power126 mW (21 dBm) [2]
Frequency bands863–870 MHz, 902–928 MHz [2]
GPSBuilt in [1]
Display typeLCD [1]
Display size1.08 in [1]
Display details1.08-inch TFT [1]
InputRotary encoder [4]
Battery1800 mAh [1]
Dedicated solar inputUnknown
AntennaExternal [1]
Connector: SMA female LoRa antenna connector [1]
IP ratingUnknown
Dimensions60 × 53 × 30 mm [1]
Weight55 g [1]

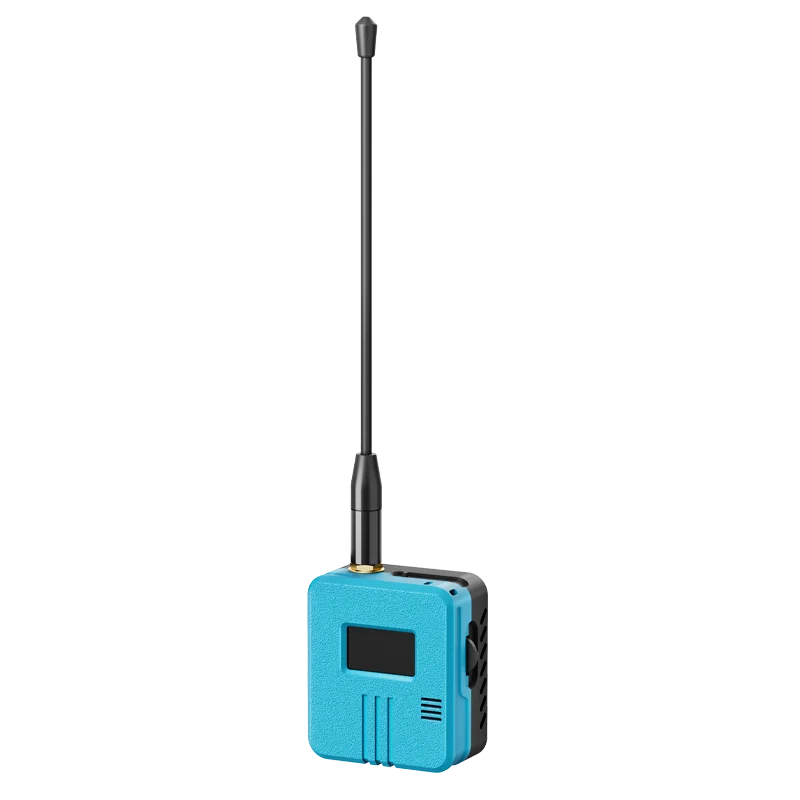

Heltec RadioCore expansion kit assembled in its blue enclosure with display and external antenna; the selected RadioCore is inside the case.
Image: Heltec Automation

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [7]
Details
Build target(s)
heltec-rc52
Minimum version
2.8.0.7239fe8

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreUnsupported—
UMSHUnsupported—

Where to buy

Vendor / configurationPriceBased inShips from
Heltec Automation
863–870 / 902–928 MHzFrom $37.90
Observed 2026-10-19
Unknown🇨🇳🇪🇺🇺🇸

Notes

Includes the RC52-62 RadioCore, RD-GA01 baseboard, 1,800 mAh battery, 1.08-inch TFT, L76K GNSS, motion sensor, buzzer and rotary control.[1][4]

The listed starting price uses the FDM enclosure; a sintered enclosure is also available.[2]

Sources

  1. Heltec RD-GA01-KIT exact product page, specifications and current bundle offer
  2. Heltec RD-GA01-KIT exact current core, regional-band and bundle variant catalog
  3. Heltec RC52-62 installed RadioCore specifications
  4. Heltec RD-GA01 product and usage documentation
  5. Heltec RD-GA01 Rev 1.0 baseboard schematic and exact RadioCore pin mapping
  6. Meshtastic v2.8.0 RC52-62 hardware pin mapping
  7. Meshtastic v2.8.0 RC52-62 exact target and official support level

Last updated 2026-10-20
