RD-GA01 Kit (RC32-62)

Heltec Automation · Tracker

Compare with other devices

Price: From $36.90[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [3]
ProcessorESP32-S3 [3]
Radio power126 mW (21 dBm) [2]
Frequency bands863–870 MHz, 902–928 MHz [2]
GPSBuilt in [1]
Display typeLCD [1]
Display size1.08 in [1]
Display details1.08-inch TFT [1]
InputRotary encoder [6]
Battery1800 mAh [1]
Dedicated solar inputUnknown
AntennaExternal [1]
Connector: SMA female LoRa antenna connector [1]
IP ratingUnknown
Dimensions60 × 53 × 30 mm [1]
Weight55 g [1]

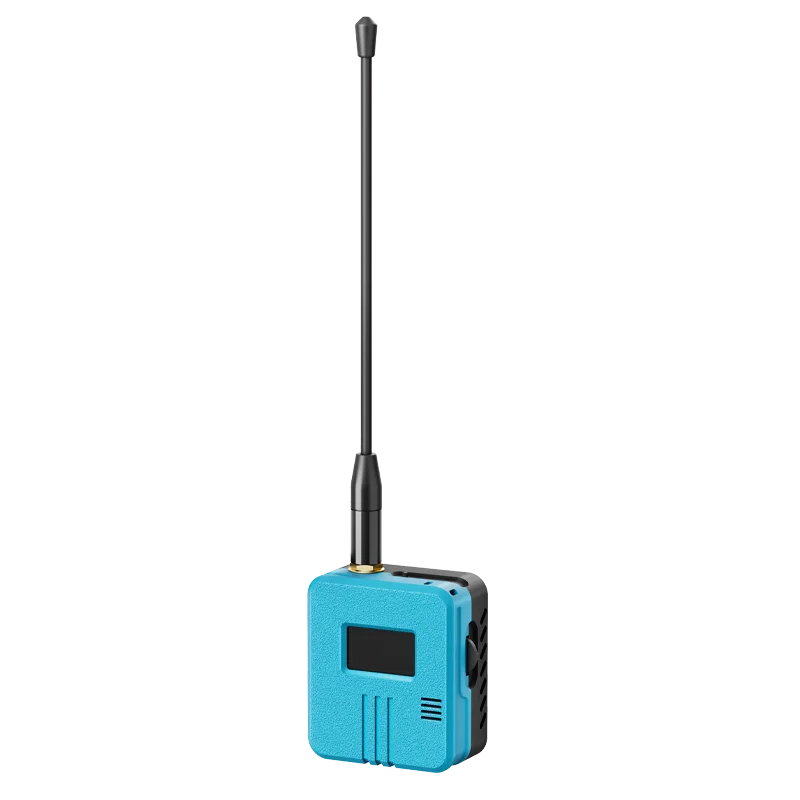

Heltec RadioCore expansion kit assembled in its blue enclosure with display and external antenna; the selected RadioCore is inside the case.
Image: Heltec Automation

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [12]
Details
Build target(s)
heltec-rc32
Minimum version
2.8.0.7239fe8

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [4]
Details
Build target(s)
heltec_rc32_without_display_repeater, heltec_rc32_without_display_repeater_bridge_espnow, heltec_rc32_without_display_room_server, heltec_rc32_without_display_companion_radio_usb, heltec_rc32_without_display_companion_radio_ble, heltec_rc32_without_display_companion_radio_wifi, heltec_rc32_without_display_sensor, heltec_rc32_terminal_chat, heltec_rc32_repeater, heltec_rc32_repeater_bridge_espnow, heltec_rc32_room_server, heltec_rc32_companion_radio_usb, heltec_rc32_companion_radio_ble, heltec_rc32_companion_radio_wifi, heltec_rc32_sensor, heltec_rc32_kiss_modem
Roles
  • Companion (Bluetooth): heltec_rc32_companion_radio_ble, heltec_rc32_without_display_companion_radio_ble
  • Companion (USB): heltec_rc32_companion_radio_usb, heltec_rc32_without_display_companion_radio_usb
  • Companion (Wi-Fi): heltec_rc32_companion_radio_wifi, heltec_rc32_without_display_companion_radio_wifi
  • Repeater: heltec_rc32_repeater, heltec_rc32_without_display_repeater
  • Room server: heltec_rc32_room_server, heltec_rc32_without_display_room_server
Minimum version
1.17.0

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported—

Where to buy

Vendor / configurationPriceBased inShips from
Heltec Automation
863–870 / 902–928 MHzFrom $36.90
Observed 2026-10-19
Unknown🇨🇳🇪🇺🇺🇸

Notes

Includes the RC32-62 RadioCore, RD-GA01 baseboard, 1,800 mAh battery, 1.08-inch TFT, L76K GNSS, motion sensor, buzzer and rotary control.[1][6]

The listed starting price uses the FDM enclosure; a sintered enclosure is also available.[2] Motion-sensor support is not established in the current MeshCore RC32 configuration.[9]

Sources

  1. Heltec RD-GA01-KIT exact product page, specifications and current bundle offer
  2. Heltec RD-GA01-KIT exact current core, regional-band and bundle variant catalog
  3. Heltec RC32-62 installed RadioCore specifications
  4. MeshCore RC32 companion role release assets; minimum supported target version
  5. MeshCore official complete flasher device catalog
  6. Heltec RD-GA01 product and usage documentation
  7. Heltec RD-GA01 Rev 1.0 baseboard schematic and exact RadioCore pin mapping
  8. Meshtastic v2.8.0 RC32-62 hardware pin mapping
  9. MeshCore RC32 display and non-display targets, GNSS, sensor and buzzer pin map
  10. MeshCore RC32 repeater role release assets; minimum supported target version
  11. MeshCore RC32 room-server role release assets; minimum supported target version
  12. Meshtastic v2.8.0 RC32-62 exact target and official support level

Last updated 2026-10-20
