HT-CT62

Heltec Automation · Dev-board

Compare with other devices

Price: $6.90[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [2]
ProcessorESP32-C3 [2]
Radio power126 mW (21 dBm) [2]
Frequency bands470–510 MHz, 863–928 MHz [2]
GPSNot supported [4]
Display typeNone [4]
Display sizeNone
Display detailsNo display [4]
InputButtons [3]
BatteryNo built-in battery [3]
Dedicated solar inputNo [3]
AntennaExternal [2]
Connector: IPEX 1.0 LoRa antenna interface [2]
IP ratingUnknown
Dimensions17.78 × 17.78 × 2.8 mm [2]
WeightUnknown

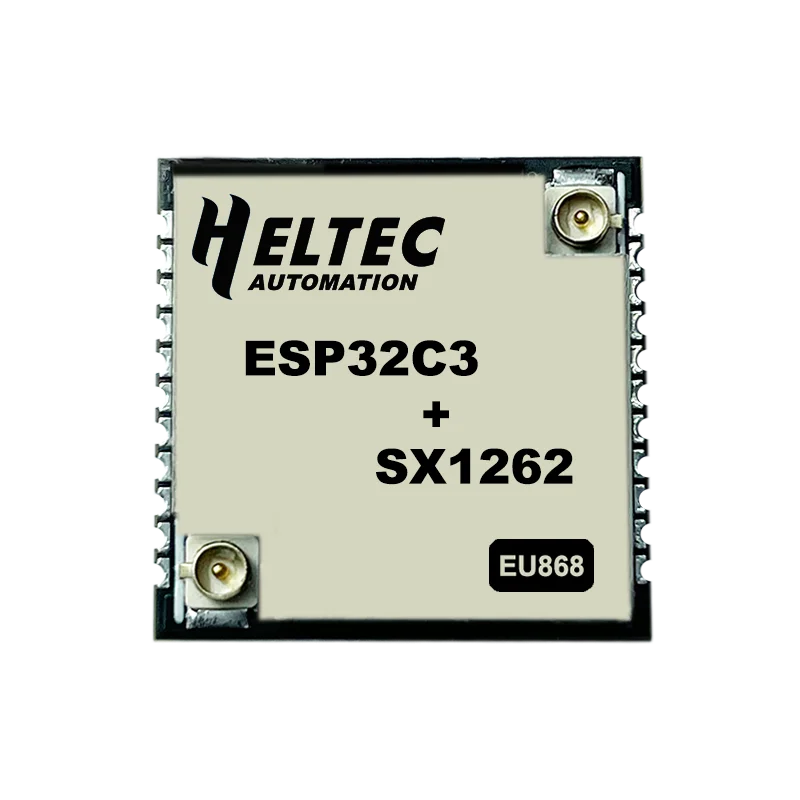

HT-CT62 product photo
Image: Heltec Automation

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [5]
Details
Build target(s)
heltec-ht62-esp32c3-sx1262
Minimum version
2.2.3.282cc0b

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [7]
Details
Build target(s)
Heltec_ct62_companion_radio_ble, Heltec_ct62_companion_radio_usb, Heltec_ct62_repeater
Roles
  • Companion (Bluetooth): Heltec_ct62_companion_radio_ble
  • Companion (USB): Heltec_ct62_companion_radio_usb
  • Repeater: Heltec_ct62_repeater
Minimum version
1.7.1

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [8]—

Where to buy

Vendor / configurationPriceBased inShips from
Heltec Automation
433 / 470–510 / 863–870 / 902–928 MHz$6.90
Observed 2026-10-19
Unknown🇨🇳🇪🇺🇺🇸
OpenELAB
Global site
868 MHz		€9.40
Observed 2026-10-19
Unknown🇪🇺🇺🇸🇨🇳
US site
915 MHz		$11.99
Observed 2026-10-19
Unknown🇪🇺🇺🇸🇨🇳

Notes

This is a bare SMT radio/MCU module for carrier-board integration. The HT-CT62 HF version covers 863–928 MHz and the LF version covers 470–510 MHz; select the matching antenna and carrier. The module exposes separate IPEX 1.0 connections for LoRa and 2.4 GHz.

[2] [3]

Sources

  1. Heltec HT-CT62 product page
  2. Heltec HT-CT62 Rev. 1.1 datasheet
  3. Heltec HT-CT62 schematic
  4. Meshtastic Heltec HT-CT62 device page
  5. Meshtastic official supported-device directory
  6. Meshtastic deviceHardware catalog
  7. MeshCore heltec_ct62 variant
  8. UMSH hardware support list
  9. Heltec HT-CT62 hardware update log (Chinese official docs)
  10. OpenELAB US store: HELTEC HT-CT62 ESP32C3 SX1262 LoRa Node Meshtastic LoRaWAN 915Mhz
  11. OpenELAB exact product variant price

Last updated 2026-10-20
