Capsule Sensor V3

Heltec Automation · Tracker

Compare with other devices

Price: From $25.90[2]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [3]
ProcessorESP32-S3 [3]
Radio power126 mW (21 dBm) [3]
Frequency bands470–510 MHz, 863–870 MHz, 902–928 MHz [1]
GPSOptional (add-on) [1]
Display typeNone [1]
Display sizeNone
Display detailsNone [1]
InputButtons [9]
Battery250 mAh [1]
Dedicated solar inputNo [1]
AntennaInternal [1]
IP ratingIP65 [1]
Dimensions47 × 26 × 26 mm [3]
Weight23 g [1]

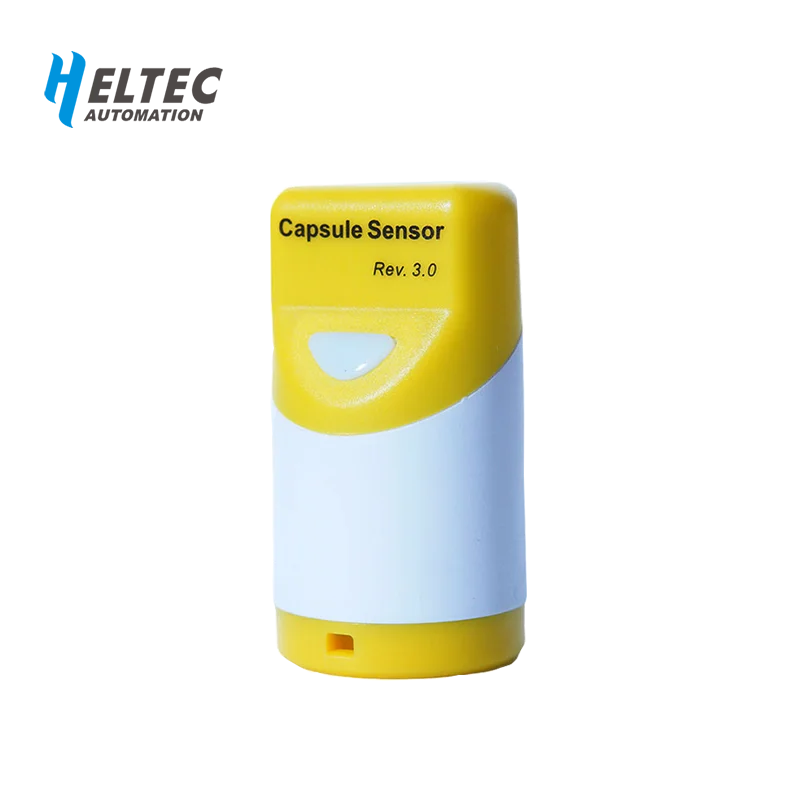

Heltec Capsule Sensor V3 front view
Image: Heltec Automation

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [5]
Details
Build target(s)
heltec_capsule_sensor_v3
Minimum version
2.3.13.83f5ba0

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreUnsupported—
UMSHUnsupported—

Where to buy

Vendor / configurationPriceBased inShips from
Heltec Automation
470–510 / 863–870 / 902–928 MHzFrom $25.90
Observed 2026-10-19
Unknown🇨🇳🇪🇺🇺🇸

Notes

A sealed portable sensor node with selectable GNSS, temperature/humidity, 3-axis or barometric-pressure module and regional LoRa bands.[1] Heltec recommends a power bank or mobile phone for Meshtastic because the built-in battery is small.[4] The current product page lists a 250 mAh battery; its datasheet conflicts, listing 150 mAh in the specifications table while stating 250 mAh in the overview.[3]

Sources

  1. Heltec Capsule Sensor V3 product page, current variants, sensor options and exact offer
  2. Heltec Capsule Sensor V3 complete current price range and 12 band/sensor options
  3. Heltec Capsule Sensor V3 datasheet Rev. 1.1
  4. Heltec Capsule Sensor V3 Meshtastic quick start
  5. Meshtastic Capsule Sensor V3 exact build target
  6. Meshtastic firmware commit adding the exact Capsule Sensor V3 target
  7. Meshtastic firmware v2.3.13 release containing the Capsule Sensor V3 target
  8. Heltec Automation Capsule Sensor V3 product launch video, published 2024-02-06
  9. Meshtastic Heltec Capsule Sensor V3 button pin mapping

Last updated 2026-10-20
