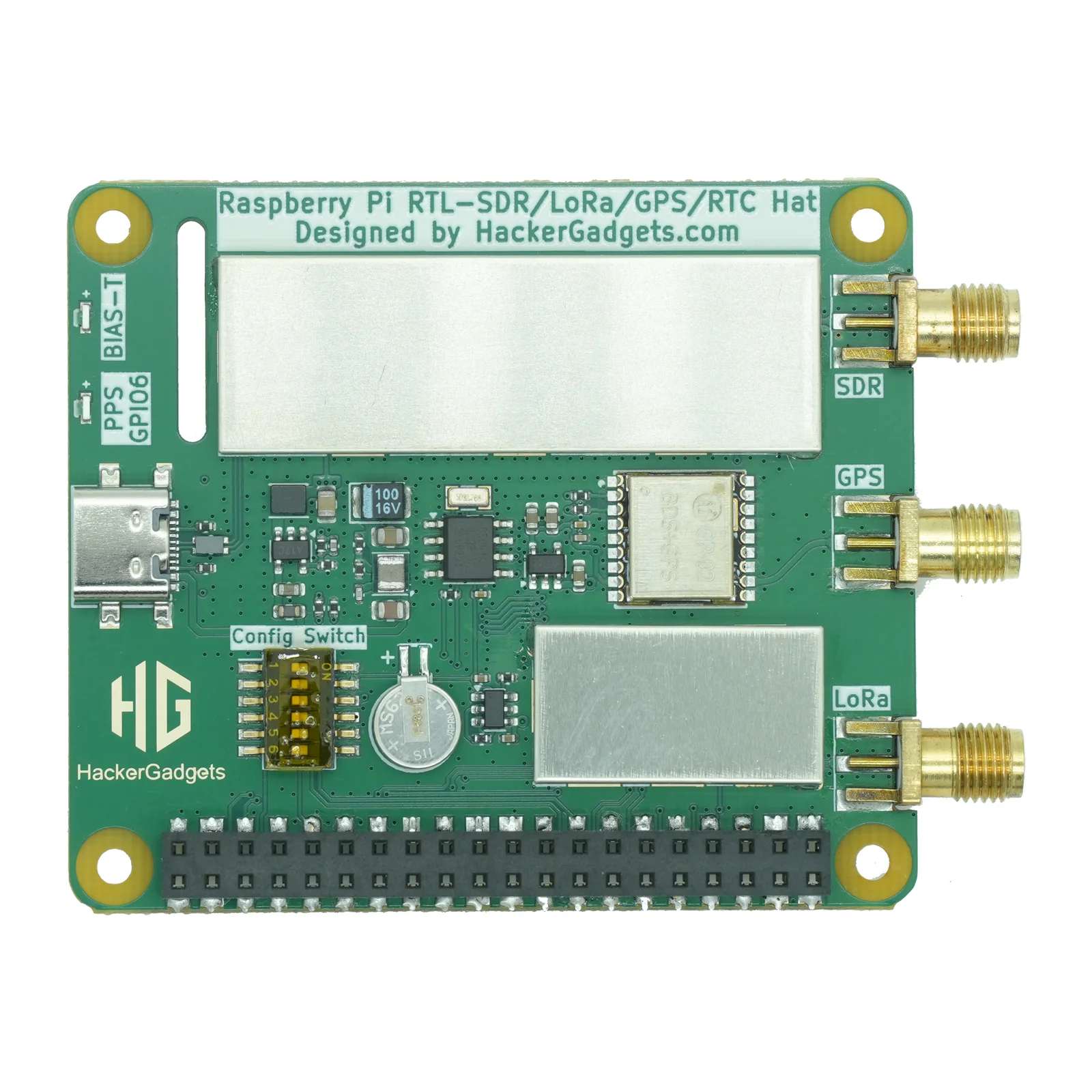

RTL-SDR/LoRa/GPS/RTC HAT for Raspberry Pi
HackerGadgets · Dev-board
Price: From $84.90[1]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [4] |
| LoRa chip | SX1262 [1] |
| Processor | External host [1] |
| Radio power | 158 mW (22 dBm) [1] |
| Frequency bands | 860–960 MHz [1] |
| GPS | Built in [1] |
| Display type | None [1] |
| Display size | None |
| Display details | None [1] |
| Input | None [3] |
| Battery | No built-in battery [1] |
| Dedicated solar input | No [1] |
| Antenna | External [1] Connector: SMA or U.FL (IPEX Gen 1) [1] |
| IP rating | Unknown |
| Dimensions | Unknown |
| Weight | Unknown |
Software support
The software runs on the connected computer.
| Software | Support | Details |
|---|---|---|
| Meshtastic | Community [1] | Details
|
| MeshCore | Unsupported | — |
| UMSH | Unsupported | — |
Where to buy
| Vendor / configuration | Price | Based in | Ships from |
|---|---|---|---|
| HackerGadgets | |||
| View listing | From $84.90 Observed 2026-10-20 | 🇨🇳 | Unknown |
Notes
Raspberry Pi HAT that combines an SX1262 LoRa radio with an RTL-SDR receiver (RTL2832U and R860 tuner, 100 kHz to 1.74 GHz, HF direct sampling and a software-enabled 5 V bias tee), GNSS and a PCF85063A real-time clock backed by a rechargeable 3 V coin cell. The Raspberry Pi is not included.[1]
- The listing offers SMA or U.FL (IPEX Gen 1) antenna connectors, each with or without a GPS, LoRa and SDR antenna pack.[1]
- The GNSS receiver is a GP-02 module (GPS and BDS).[2]
- A six-position DIP switch connects the GPS backup battery, GPS PPS (GPIO6), GPS reset (GPIO22), GPS enable (GPIO23) and the RTC interrupt (GPIO16), and selects GPS+BDS or GPS+GLONASS mode.[3]
- The USB-C port and rear USB connector are wired to the RTL-SDR, so they cannot serve other USB devices.[4]
![[2]](https://cdn.shopify.com/s/files/1/2067/9757/files/RPI-AIO-SMA_TOP.png){kind=link}
![[3]](https://cdn.shopify.com/s/files/1/2067/9757/files/RPI-AIO-SMA_BOTTOM.png){kind=link}
The maker lists Raspberry Pi 3B, 4B, 5, CM4, CM5, Zero and Zero 2W as compatible hosts.[1]
