ThinkNode M1

Elecrow · Tracker

Compare with other devices

Price: $53.90[1]

Specifications

SpecificationValue
Product statusActive [1]
LoRa chipSX1262 [2]
ProcessornRF52840 [2]
Radio power158 mW (22 dBm) [1]
Frequency bandsEU868, US915 [1]
GPSBuilt in [2]
Display typeE-paper [2]
Display size1.54 in [2]
Display details1.54-inch 200×200 e-paper display [2]
InputButtons [2]
Battery1200 mAh [2]
Dedicated solar inputNo [2]
AntennaExternal [2]
Connector: RP-SMA [2]
IP ratingUnknown
Dimensions82 × 51.6 × 26.3 mm [2]
Weight81 g [2]

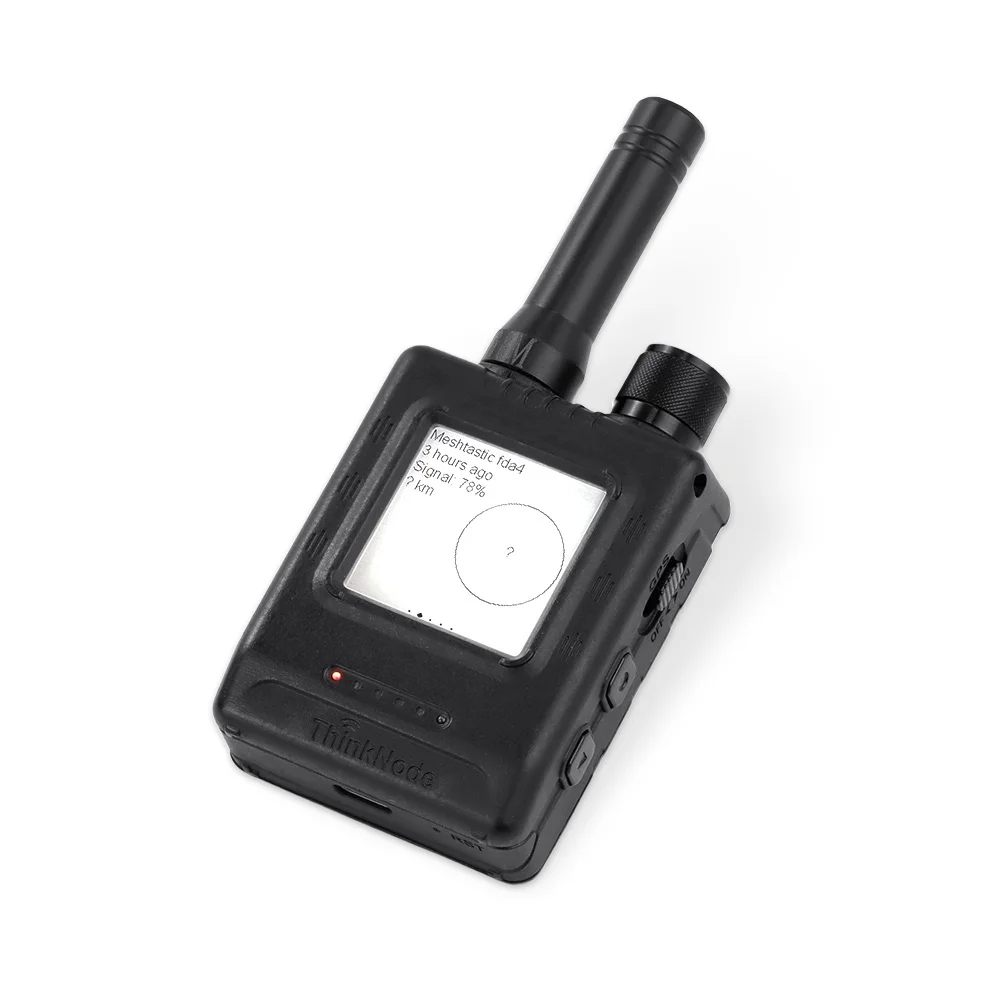

Elecrow ThinkNode M1 Meshtastic handheld with e-paper display and antenna
Image: Elecrow

Firmware support

FirmwareSupportDetails
MeshtasticOfficial [3]
Details
Build target(s)
thinknode_m1
Minimum version
2.6.4.b89355f

Confirm your exact device in the official flasher before choosing a build.

Meshtastic web flasher
MeshCoreSupported [5]
Details
Build target(s)
ThinkNode_M1_companion_radio_ble, ThinkNode_M1_companion_radio_usb, ThinkNode_M1_repeater, ThinkNode_M1_room_server
Roles
  • Companion (Bluetooth): ThinkNode_M1_companion_radio_ble
  • Companion (USB): ThinkNode_M1_companion_radio_usb
  • Repeater: ThinkNode_M1_repeater
  • Room server: ThinkNode_M1_room_server
Minimum version
1.6.0

Confirm your exact device in the official flasher before choosing a build.

MeshCore web flasher
UMSHUnsupported [6]—

Where to buy

Vendor / configurationPriceBased inShips from
Elecrow
Meshtastic · 868 / 915 MHz$53.90
Observed 2026-10-19
UnknownUnknown
Muzi.Works
Meshtastic · 915 MHz$59.90
Observed 2026-10-19
🇺🇸🇺🇸
OpenELAB
Global site
Meshtastic · 868 MHz		€59.69
Observed 2026-10-19
Unknown🇪🇺🇺🇸🇨🇳
US site
Meshtastic · 915 MHz		$66.99
Observed 2026-10-19
Unknown🇪🇺🇺🇸🇨🇳
Rokland
Meshtastic · 915 MHz$62.80
Observed 2026-10-19
🇺🇸🇺🇸

Some of these links are affiliate links; we may earn a commission at no extra cost to you. It doesn't change what we list or the order. Details.

Notes

Available in EU868 and US915 versions. Elecrow currently sells the finished enclosure SKU; historical board-only and optional-case variants are documented.

[1] [2] [3] [5]

Sources

  1. Elecrow ThinkNode M1 product listing
  2. Elecrow ThinkNode M1 technical documentation
  3. Meshtastic ThinkNode M1 device documentation
  4. Meshtastic device hardware catalog
  5. MeshCore official flasher device catalog
  6. UMSH hardware support list
  7. Elecrow introduces ThinkNode M1 and M2
  8. Muzi.Works Elecrow ThinkNode M1 product listing
  9. Rokland Elecrow ThinkNode M1 LoRa Meshtastic radio + 1.54" EPD Screen GPS nRF52840 listing
  10. OpenELAB Elecrow ThinkNode M1 LoRa Meshtastic Transceiver With 1.54" EPD Screen exact offer
  11. OpenELAB US store: Elecrow ThinkNode M1 LoRa Meshtastic Transceiver With 1.54" EPD Screen

Last updated 2026-10-20
