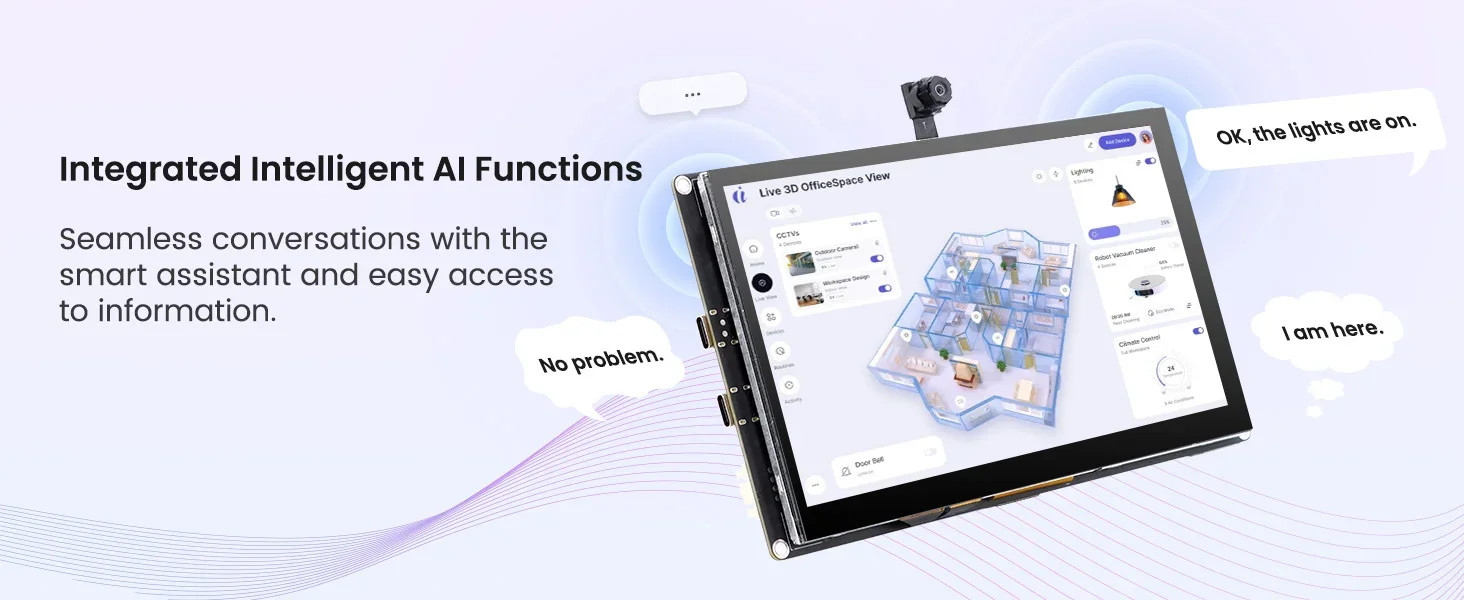

CrowPanel Advance 7.0-inch ESP32-P4 V1.2
Elecrow · Dev-board
Price: From $55.45[2]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [2] |
| LoRa chip | SX1262 [1] |
| Processor | ESP32-P4 [2] |
| Radio power | 158 mW (22 dBm) [1] |
| Frequency bands | EU868, US915 [1] |
| GPS | Not supported [4] |
| Display type | LCD [2] |
| Display size | 7 in [2] |
| Display details | 7.0-inch 1024×600 IPS capacitive touchscreen [4] |
| Input | Touchscreen [4] |
| Battery | No built-in battery [4] |
| Dedicated solar input | No [4] |
| Antenna | External [1] Connector: U.FL / IPEX [1] |
| IP rating | Unknown |
| Dimensions | Unknown |
| Weight | 450 g [2] |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Unsupported | — |
| MeshCore | Unsupported | — |
| UMSH | Unsupported | — |
Where to buy
| Vendor / configuration | Price | Based in | Ships from |
|---|---|---|---|
| Elecrow | |||
| View listing | $55.45 Observed 2026-10-20 | Unknown | Unknown |
Notes
V1.2 reallocates the wireless-module socket GPIO pins, including the SX1262 signal mapping. The SX1262 module is an optional add-on.[3][2]
Sources
- Elecrow SX1262 Wireless Module for CrowPanel Advanced Series datasheet
- CrowPanel Advanced 7-inch ESP32-P4 HMI AI Display product listing and selectable SX1262 option
- Elecrow CrowPanel hardware repository and revision notes
- Elecrow CrowPanel Advance technical wiki
Last updated 2026-10-21
