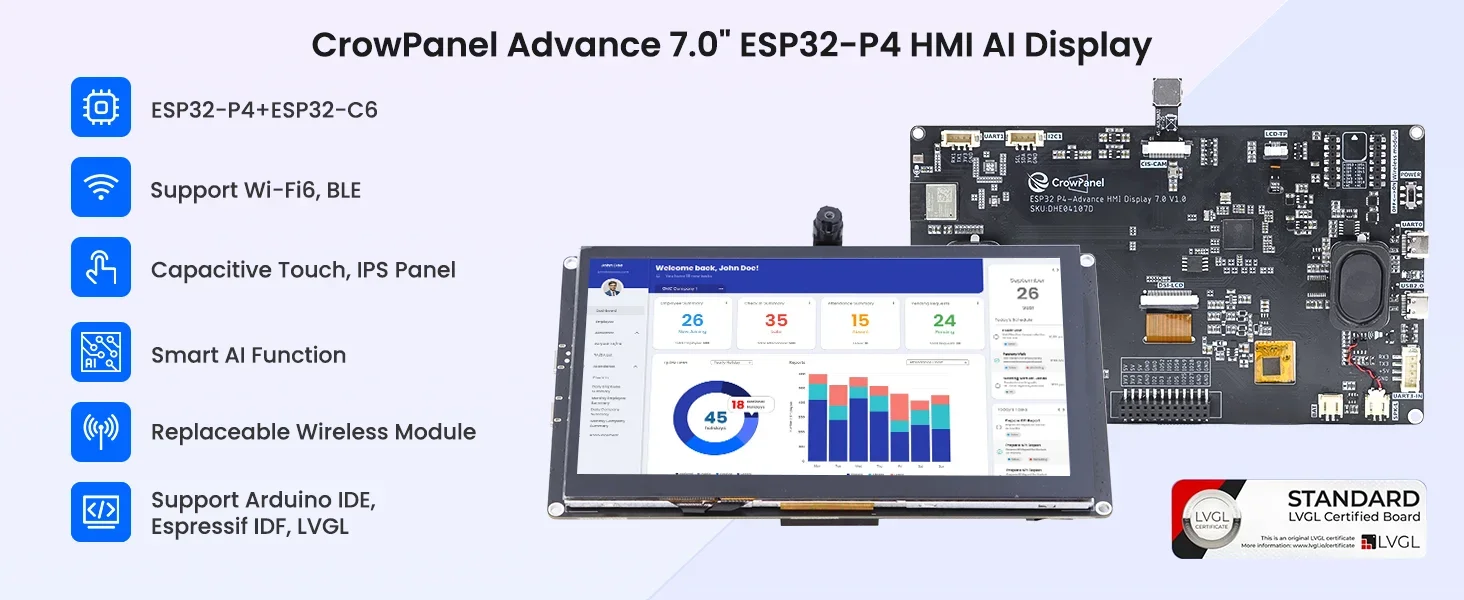

CrowPanel Advance 7.0-inch ESP32-P4 V1.0–V1.1
Elecrow · Dev-board
Price: Unknown
Specifications
| Specification | Value |
|---|---|
| Product status | Discontinued (EOL) [3] |
| LoRa chip | SX1262 [1] |
| Processor | ESP32-P4 [2] |
| Radio power | 158 mW (22 dBm) [1] |
| Frequency bands | EU868, US915 [1] |
| GPS | Not supported [4] |
| Display type | LCD [2] |
| Display size | 7 in [2] |
| Display details | 7.0-inch 1024×600 IPS capacitive touchscreen [4] |
| Input | Touchscreen [4] |
| Battery | No built-in battery [4] |
| Dedicated solar input | No [4] |
| Antenna | External [1] Connector: U.FL / IPEX [1] |
| IP rating | Unknown |
| Dimensions | Unknown |
| Weight | 450 g [2] |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Unsupported | — |
| MeshCore | Unsupported | — |
| UMSH | Unsupported | — |
Where to buy
No buy links yet.
Notes
Elecrow’s hardware repository marks V1.0 and V1.1 as old revisions. V1.1 changes the ESP32-C6 module and SDIO pin mapping; the SX1262 socket pins remain the earlier mapping. The LoRa module is an optional add-on.[3][2]
Sources
- Elecrow SX1262 Wireless Module for CrowPanel Advanced Series datasheet
- Elecrow CrowPanel product listing
- Elecrow CrowPanel hardware repository and revision notes
- Elecrow CrowPanel Advance technical wiki
