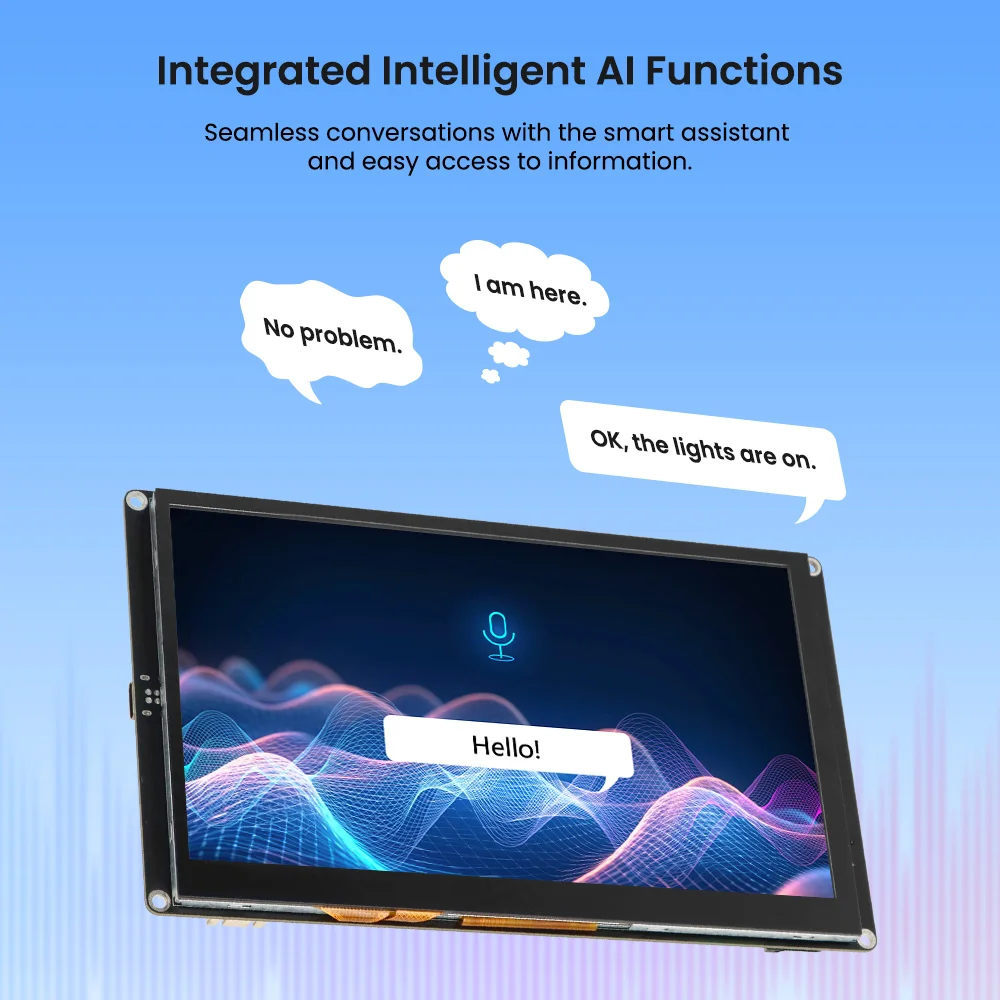

CrowPanel Advance 7.0-inch V1.2–V1.5
Elecrow · Dev-board
Price: From $41.45[2]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [2] |
| LoRa chip | SX1262 [1] |
| Processor | ESP32-S3 [4] |
| Radio power | 158 mW (22 dBm) [1] |
| Frequency bands | EU868, US915 [1] |
| GPS | Not supported [4] |
| Display type | LCD [4] |
| Display size | 7 in [4] |
| Display details | 7.0-inch 800×480 IPS capacitive touchscreen [4] |
| Input | Touchscreen [4] |
| Battery | No built-in battery [4] |
| Dedicated solar input | No [4] |
| Antenna | External [1] Connector: U.FL / IPEX [1] |
| IP rating | Unknown |
| Dimensions | Unknown |
| Weight | Unknown |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Unsupported [3] | — |
| MeshCore | Unsupported | — |
| UMSH | Unsupported | — |
Where to buy
| Vendor / configuration | Price | Based in | Ships from |
|---|---|---|---|
| Elecrow | |||
| View listing | $41.45 Observed 2026-10-20 | Unknown | Unknown |
Notes
The current Elecrow listing identifies the product on sale as V1.4 and says it does not support Meshtastic. Elecrow states V1.2 and later will not support the older Meshtastic firmware. The optional SX1262 add-on is for generic LoRa communication and does not include Meshtastic firmware.[2][3]
Sources
- Elecrow SX1262 Wireless Module for CrowPanel Advanced Series datasheet
- CrowPanel Advance 7.0-inch HMI ESP32 AI Display product listing and selectable SX1262 option
- Elecrow forum: CrowPanel 5.0/7.0 Meshtastic hardware revisions and sale status
- Elecrow CrowPanel Advance technical wiki
Last updated 2026-10-21
