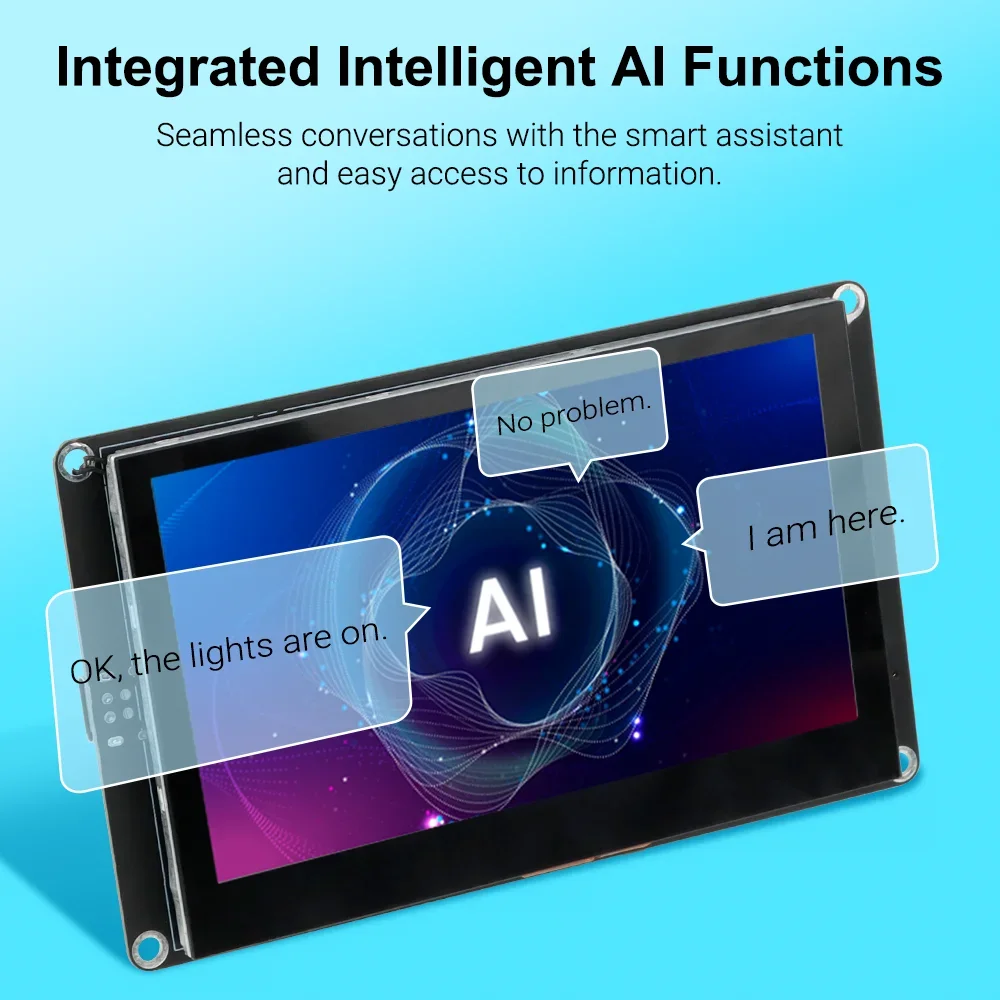

CrowPanel Advance 4.3-inch V1.0–V1.3
Elecrow · Dev-board
Price: From $37.45[4]
Specifications
| Specification | Value |
|---|---|
| Product status | Active [4] |
| LoRa chip | SX1262 [1] |
| Processor | ESP32-S3 [5] |
| Radio power | 158 mW (22 dBm) [1] |
| Frequency bands | EU868, US915 [1] |
| GPS | Not supported [5] |
| Display type | LCD [5] |
| Display size | 4.3 in [5] |
| Display details | 4.3-inch 800×480 IPS capacitive touchscreen [5] |
| Input | Touchscreen [5] |
| Battery | No built-in battery [5] |
| Dedicated solar input | No [5] |
| Antenna | External [1] Connector: U.FL / IPEX [1] |
| IP rating | Unknown |
| Dimensions | Unknown |
| Weight | Unknown |
Firmware support
| Firmware | Support | Details |
|---|---|---|
| Meshtastic | Official [2] | Details
Confirm your exact device in the official flasher before choosing a build. Meshtastic web flasher |
| MeshCore | Unsupported | — |
| UMSH | Unsupported | — |
Where to buy
| Vendor / configuration | Price | Based in | Ships from |
|---|---|---|---|
| Elecrow | |||
| View listing | $37.45 Observed 2026-10-20 | Unknown | Unknown |
Notes
The SX1262 wireless module is an optional add-on. Elecrow’s current listing says the LoRa add-on is for generic LoRa communication and does not include Meshtastic firmware, while Meshtastic classifies CrowPanel hardware as official support. Check the exact board revision before ordering.[4][2]
Sources
- Elecrow SX1262 Wireless Module for CrowPanel Advanced Series datasheet
- Meshtastic firmware build configuration for the Elecrow CrowPanel Advance large displays
- Meshtastic firmware 2.6.8.ef9d0d7 release
- CrowPanel Advance 4.3-inch HMI ESP32 AI Display product listing and selectable SX1262 option
- Elecrow CrowPanel Advance technical wiki
Last updated 2026-10-21
